JST XH connector series

Description

1. Product Overview

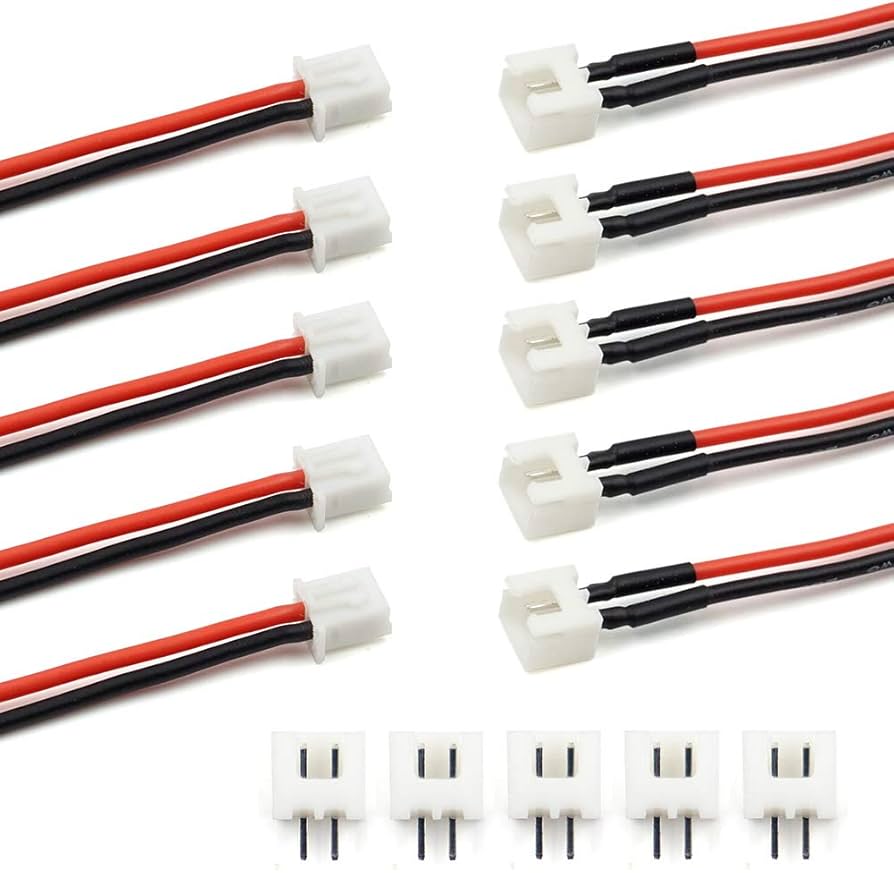

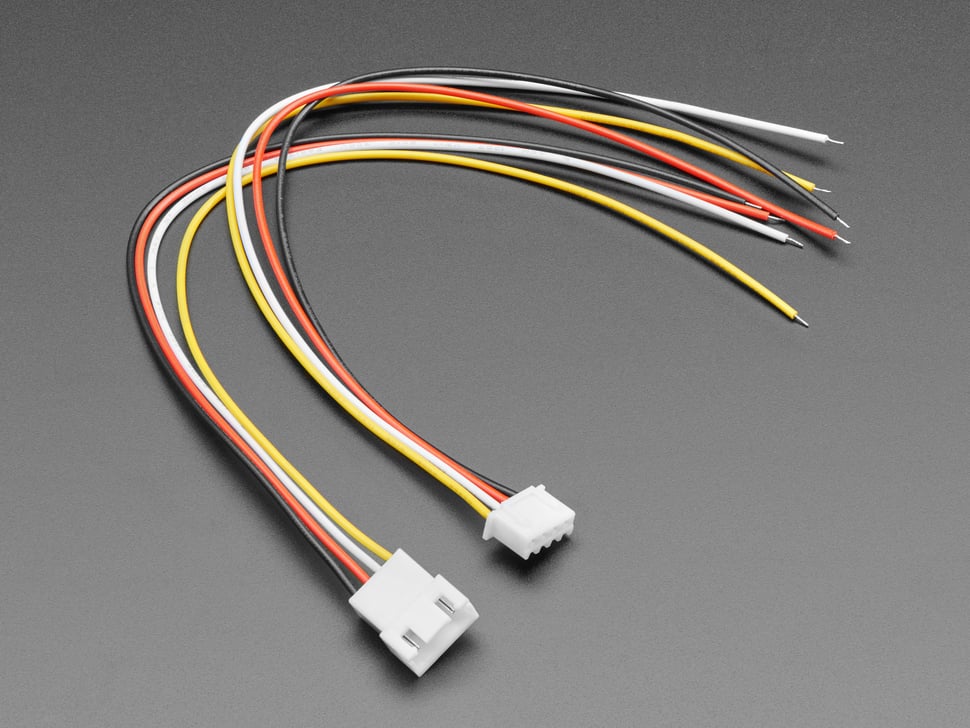

JST XH connector series is a high-reliability family of wire-to-board and wire-to-wire interconnects engineered for industrial and commercial electronics. Designed for power and signal distribution in control panels, instrumentation, and modular assemblies, the XH series delivers secure mating, robust contact retention, and consistent electrical performance across high-cycle applications. Its key value proposition is predictable, low-resistance connections with standardized pitch and form factors that simplify design, procurement, and maintenance. Strategically, the JST XH series reduces assembly risk, shortens time-to-service, and supports scalable manufacturing and aftermarket support for OEMs and system integrators.

2. Key Specifications & Technical Characteristics

• Series and pitch: XH series, 2.54 mm pitch (standardized across housing and header options).

• Materials: Housing — flame-retardant thermoplastic (typically PBT or high-temp nylon); Contacts — phosphor bronze or brass base with surface plating (commonly tin or selective gold plating for critical contacts).

• Contact plating options: Tin-plated for general purpose; gold-plated available for low-voltage/low-current signal contacts requiring enhanced corrosion resistance.

• Current rating: Typical per-contact current rating ranges (application dependent) up to approximately 3–5 A (verify per part number and contact plating).

• Voltage rating: Rated for typical PCB/interconnect voltages in industrial control environments (consult datasheet for maximum working voltage per configuration).

• Contact resistance: Low and consistent contact resistance specified by manufacturer (consult specific datasheet for mΩ values).

• Operating temperature: Industrial-grade operating range (commonly −25°C to +85°C; high-temp variants available).

• Mechanical durability: Mating cycles typically specified in hundreds (consult specific part datasheet for exact cycle life).

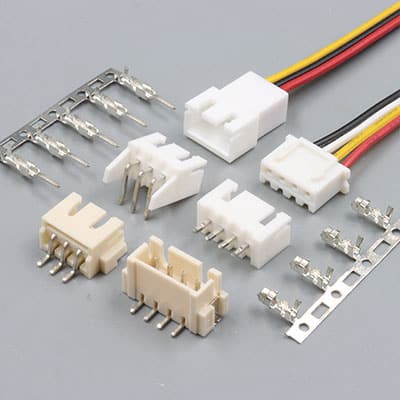

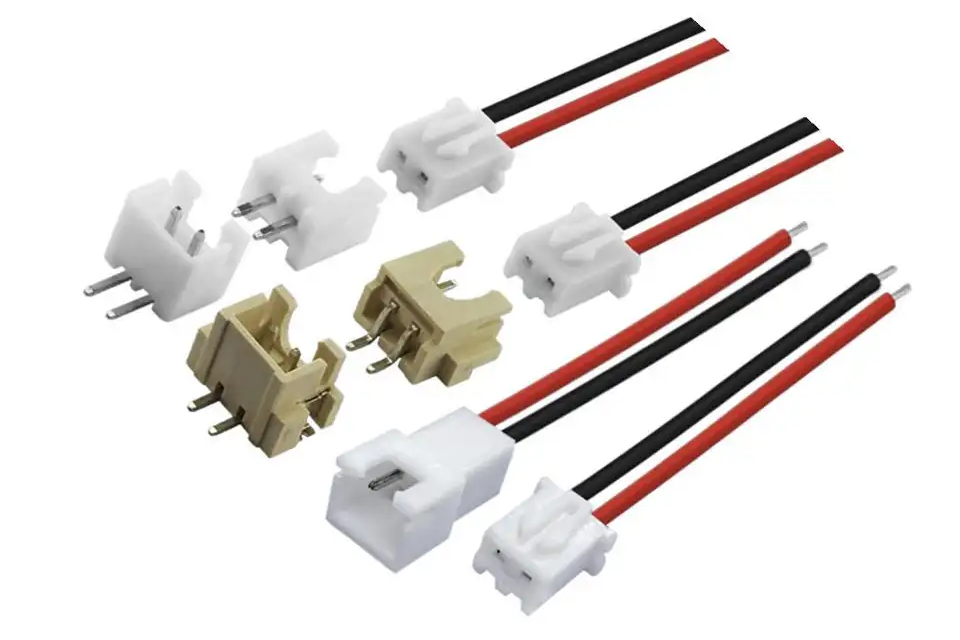

• Physical characteristics: Housing color — commonly natural (off-white) or black; form factor — single-row and multi-row housings, right-angle and vertical headers; pitch — 2.54 mm; available in varying circuit counts (2–16+ positions).

• Packaging options: Bulk (loose packed), taped-and-reel for automated pick-and-place, tray packaging for large connectors, and boxed full pallets for bulk orders.

• Shelf life and storage: Non-electrical shelf life indefinite under proper dry-storage conditions; recommended storage in cool, dry environment away from direct sunlight and corrosive atmospheres.

• Compliance: Manufactured to industry standard dimensional and performance specifications; parts typically RoHS-compliant.

3. Core Industrial Applications

• Industrial automation and control panels: Used for reliable interconnection of sensors, actuators, PLC modules, and power distribution within control cabinets. Provides consistent mating to reduce downtime during maintenance.

• Instrumentation and test equipment: Employed for modular signal harnessing, enabling easy replacement of modules and maintaining signal integrity.

• Consumer-electronics OEM lines with industrial requirements: Used where standardized pitch and automated assembly are advantages, optimizing manufacturing throughput.

• Automotive low-voltage assemblies (non-automotive-critical variants): Applied in auxiliary modules, infotainment connectors, and wiring harness subassemblies where standardized form factors lower design and procurement complexity.

• Power and lighting assemblies: Deployed for low- to mid-current circuits where reliable contact and secure latching prevent accidental disconnects.
  Why it outperforms alternatives: Standardized mechanical dimensions and proven material systems give consistent electrical contact and predictable lifecycle costs; wide availability of housings, headers, and mating options reduces custom tooling and BOM complexity. The balance of current capacity, ease of assembly (including PCB-mounted headers and housings), and low unit cost makes the XH series a pragmatic choice versus custom or proprietary connectors.

4. Competitive Advantages

• Quality consistency: Manufactured to tight dimensional tolerances and tested for contact integrity, ensuring repeatable electrical performance across production lots.

• Supply reliability: Widely produced across multiple authorized factories and distribution channels, supporting predictable lead times for volume programs.

• Logistics capability: Available in automated packaging formats (tape-and-reel) for high-speed SMT/assembly lines, and bulk configurability for large-scale harnessing operations.

• Price competitiveness: Mature supply chain and high production volumes deliver attractive unit pricing for high-quantity orders while retaining options for premium plating where needed.

• Sustainability: Common availability of RoHS-compliant materials; minimal waste in standardized packaging for high-volume automated production.

• Technical support and documentation: Comprehensive datasheets, dimensional drawings, and application notes provided by manufacturer and authorized distributors to support design-in, PCB layout, and assembly processes.

5. Commercial & Supply Information

• Minimum order quantity (MOQ): BULK 20MT.

• Loading capacity (MT per container): Loading capacity depends on packaging density and connector type; estimate and plan per container using packing factor for mixed packaged reels/trays. For planning purposes, full-container loads for bulk-packaged small interconnect components can commonly exceed several metric tonnes when packed tightly; confirm with logistics partner for exact MT per container based on selected packaging format and part dimensions.
