M12 field-wireable connector kits

Description

1. Product Overview

M12 field-wireable connector kits are industrial-grade, on-site configurable connectivity solutions designed for fast and reliable sensor, actuator, and automation system installations. These connectors enable technicians to assemble cable connections directly in the field without specialized tooling, reducing downtime and simplifying maintenance operations. Engineered for harsh industrial environments, they provide secure signal and power transmission with excellent resistance to vibration, moisture, and mechanical stress. Their flexibility, durability, and installation efficiency make them a strategic component for modern industrial automation and smart manufacturing networks.

2. Key Specifications & Technical Characteristics

• Material Components:
  • Connector housing: High-strength engineering thermoplastic (commonly PA66, PBT, or similar industrial polymers)
  • Contact pins: Copper alloy with gold/nickel plating for enhanced conductivity and corrosion resistance
  • Sealing components: Industrial-grade elastomers (NBR, EPDM, or equivalent) for environmental protection
  • Cable gland: Durable polymer or metal strain-relief design
• Electrical Grade:
  • Rated voltage: Typically up to 250V–60V depending on configuration
  • Rated current: Commonly 2A–4A per contact
  • Protection rating: IP65/IP67/IP68 options available for demanding environments
• Physical Characteristics:

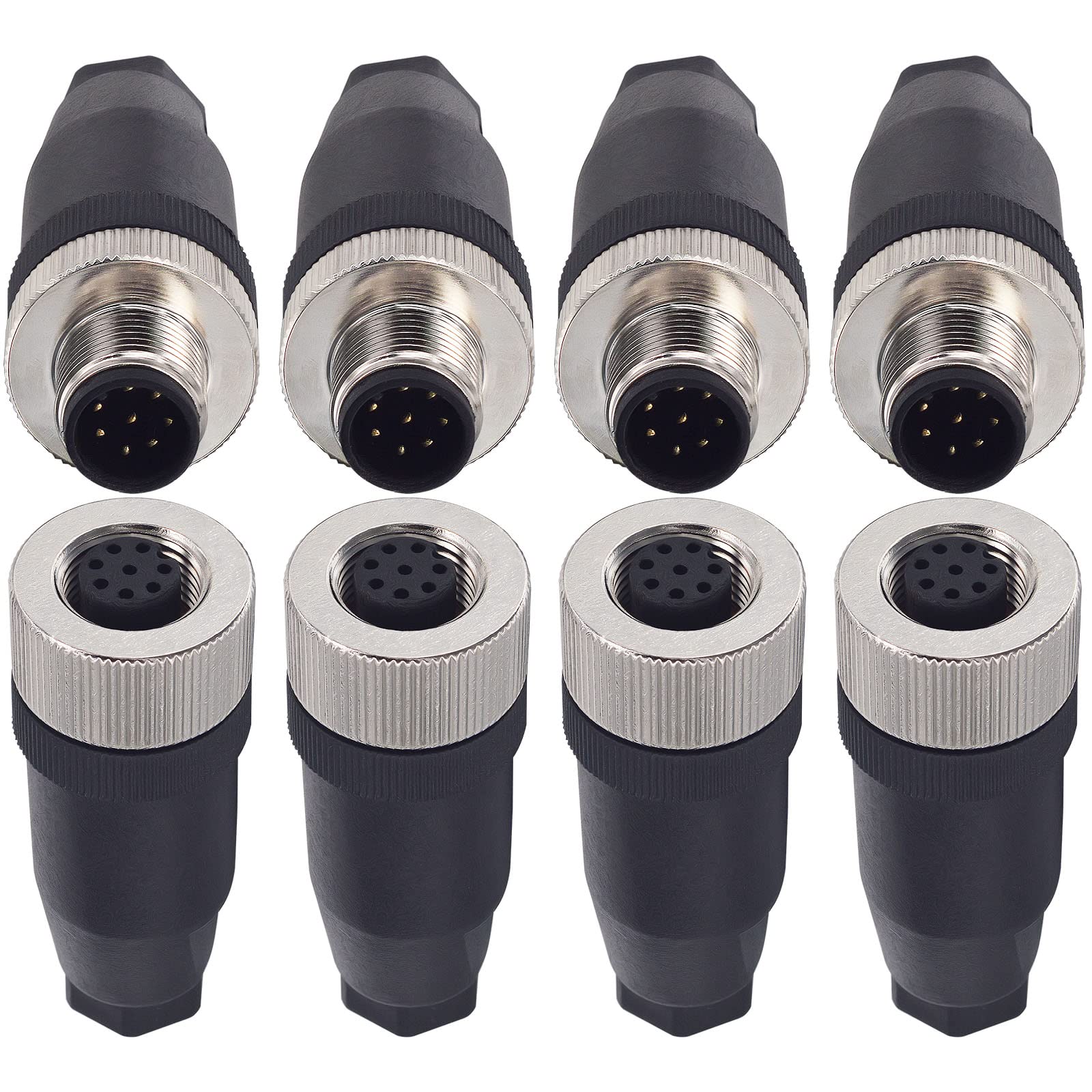

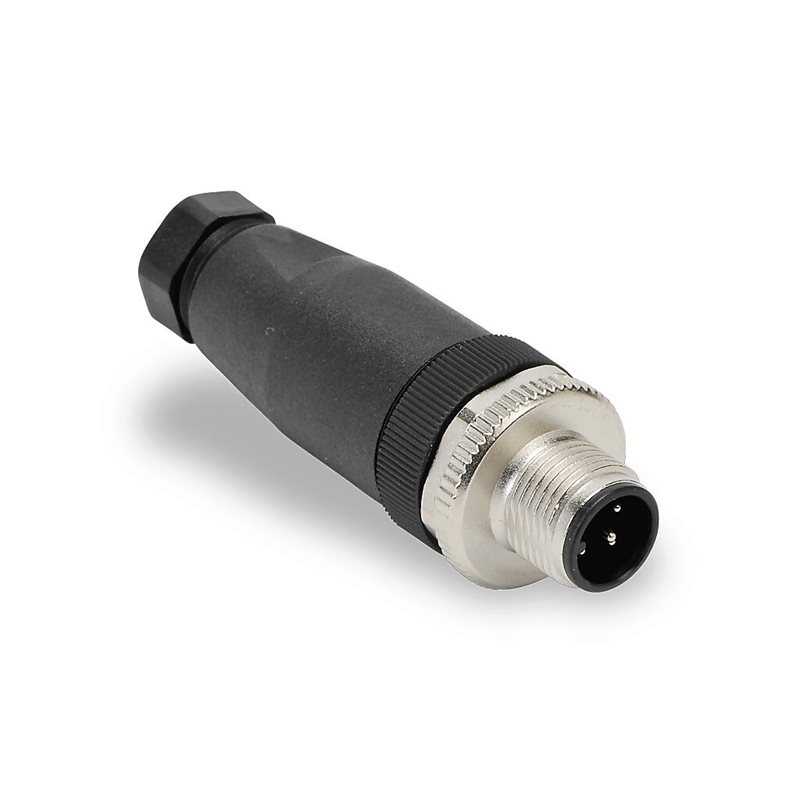

  • Connector type: M12 circular field-wireable connector kit
  • Thread size: M12 × 1.0 standard industrial interface
  • Configuration options: 3-pin, 4-pin, 5-pin, 8-pin, and higher pin counts
  • Housing colors: Black, grey, or customized industrial colors
  • Operating temperature range: Approximately -40°C to +85°C depending on materials
• Packaging Options:
  • Individual protective packaging
  • Bulk industrial cartons
  • Customized OEM packaging available
• Shelf Life:
  • Typically 5+ years when stored in dry, temperature-controlled conditions

3. Core Industrial Applications

• Industrial Automation: Used for connecting proximity sensors, photoelectric sensors, PLC systems, and machine-control components in automated production lines.
• Robotics & Manufacturing Equipment: Provides reliable signal and power connections in robotic cells, assembly systems, and industrial machinery.
• Process Control Systems: Supports instrumentation, monitoring devices, and field equipment requiring durable connectivity in harsh environments.
• Transportation & Energy Equipment: Applied in outdoor automation systems, charging infrastructure, and industrial electrical installations.

M12 field-wireable connector kits outperform traditional fixed connectors by enabling faster installation, easier repairs, and reduced inventory requirements. Their rugged construction and high ingress protection ensure reliable performance in environments exposed to dust, water, chemicals, and mechanical vibration.

4. Competitive Advantages

• Quality Consistency: Manufactured with precision-engineered components to ensure stable electrical performance and long service life.
• Supply Reliability: Suitable for large-scale industrial procurement with consistent availability for OEMs, integrators, and distributors.
• Logistics Capability: Available in bulk packaging with export-ready documentation and flexible global shipping options.
• Price Competitiveness: Provides cost savings through field assembly capability, reduced installation labor, and lower maintenance expenses.
• Sustainability Benefits: Durable reusable connection solutions help reduce equipment replacement frequency and material waste.
• Technical Support & Documentation: Available with datasheets, electrical specifications, compliance documentation, and customization support for industrial applications.

5. Commercial & Supply Information

• Minimum Order Quantity (MOQ): BULK 20MT
• Loading Capacity: Approximately 10–15 MT per 20-foot container (depending on packaging configuration and product density)
