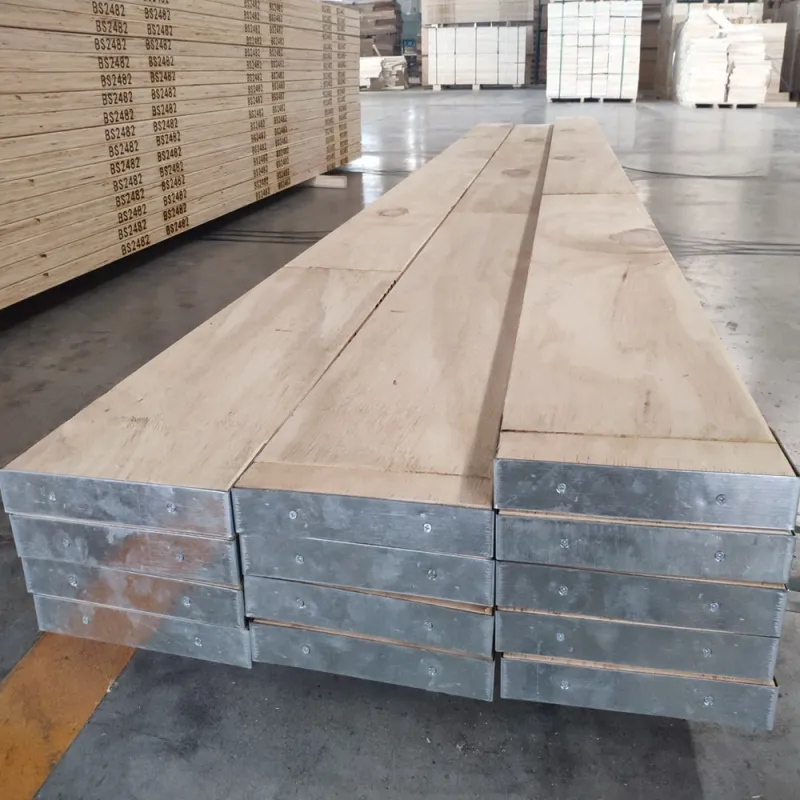

LVL Scaffold Plank (LVL-SGP) — 38x225x3900mm

Description

1. Product Overview
   LVL Scaffold Plank (LVL-SGP) — 38x225x3900mm is a high-strength laminated veneer lumber plank engineered for scaffolding and temporary access platforms in heavy-duty construction, industrial maintenance, and infrastructure projects. Manufactured from sustainably sourced hardwood veneers bonded under heat and pressure with structural adhesives, it delivers uniform straightness, predictable load-bearing capacity, and exceptional resistance to bending and splitting. The product’s primary value proposition is reliable, repeatable performance on scaffolding systems—reducing on-site failure risk, improving crew safety, and lowering lifecycle replacement costs compared with untreated softwood planks. As a standardized, specification-grade component, LVL-SGP is strategically important for contractors, scaffold hire companies, and EPC firms that require consistent mechanical properties, simplified procurement, and compliance with international safety standards.

2. Key Specifications & Technical Characteristics

• Material: Laminated Veneer Lumber (LVL) constructed from rotationally peeled hardwood veneers; structural phenol-formaldehyde or comparable waterproof adhesive system.

• Nominal dimensions: 38 mm thickness × 225 mm width × 3900 mm length.

• Density: Typical range 690–760 kg/m³ (factory-measured; batch certificate provided).

• Static bending strength (MOR): Designed to meet or exceed common scaffold plank load classes (batch-specific values available on test certificate).

• Modulus of Elasticity (MOE): Engineered for minimal deflection under distributed loads; certificate supplied per lot.

• Surface finish: Smooth-planed face; anti-slip treatment available on request.

• End-seal and edge treatment: Factory-applied sealant to reduce moisture uptake and delamination risk.

• Moisture content: Kiln-dried to 8–12% target, measured at dispatch.

• Tolerance: Dimensional tolerance ±1.5 mm thickness/width; length tolerance ±5 mm.

• Fire performance: Naturally improved fire behavior vs solid softwood; fire-retardant treatments available to meet project specifications.

• Packaging: Bundled and strapped on pallets; protective corner guards; identification labels with batch number and QR-code linked to test certificates.

• Typical shipment unit: Bundles of 10–25 planks depending on packaging; custom bundling available.

• Shelf life: Indefinite under covered, dry storage; maintain recommended storage (dry, ventilated) to preserve mechanical properties.

3. Core Industrial Applications

• Construction & Civil Engineering: Primary use as scaffold planks for supported and suspended scaffolding, formwork walkways, and temporary access decks where consistent load-bearing and low deflection are required.

• Scaffolding Hire & Services: Standardized plank for rental fleets—reduces inspection time and increases usable life compared with mixed-specification timber stocks.

• Industrial Maintenance & Turnarounds: Temporary platforms in refinery, petrochemical and power plant shutdowns; engineered dimensions facilitate rapid installation and safe personnel movement.

• Infrastructure & Bridge Works: Use on bridge decks, viaduct temporary works and rehabilitation projects where long lengths and dimensional stability reduce splice points.
  Why it performs better:

• Engineered veneers eliminate knots and unpredictable grain patterns found in solid timber, producing consistent strength and lower failure rates.

• Controlled moisture content and factory edge-sealing reduce swelling, warping, and delamination in service.

• Longer standardized lengths (3.9 m) reduce joints and installation time, improving productivity and lowering labor costs.

4. Competitive Advantages

• Quality consistency: Factory-controlled veneer grading and adhesive application deliver repeatable mechanical properties with batch test certificates.

• Supply reliability: High-capacity production and strategic inventory hubs ensure dependable deliveries for large projects and rental fleets.

• Logistics capability: Optimized bundling and palletization for efficient container loading; configurable pallet quantities to match container and truck capacities.

• Price competitiveness: Engineered yield and efficient veneer utilization lower material cost per linear meter versus comparable solid hardwood planks.

• Sustainability: Manufactured from certified responsibly sourced veneers (FSC/PEFC options) and high-yield processes that reduce raw timber consumption relative to solid plank alternatives.

• Technical support: Project-level engineering data, load tables, certificate of conformity, and on-request third-party test reports; specification support for procurement teams and scaffold engineers.

• Warranty & traceability: Batch-level labeling and QR-linked documentation for quality assurance and lifecycle tracking.

5. Commercial & Supply Information

• Minimum Order Quantity (MOQ): BULK 20 MT.

• Loading capacity (MT per container): Approximate loading capacity per 20-ft container: 18–20 MT (dependent on packaging configuration and local export packing standards). Approximate loading capacity per 40-ft container: 24–26 MT. Final loading figures confirmed at order based on palletization and international shipping regulations.

• Lead time: Standard lead time subject to stock and order size; expedited production and staged deliveries available on contract.

• Export packaging and documentation: Export-grade palletization, fumigation-compliant packing upon request, mill test certificate and packing list included.

• Commercial terms: FOB, CIF, or EXW available; contact supplier for quote including volume discounts and long-term supply agreements.
