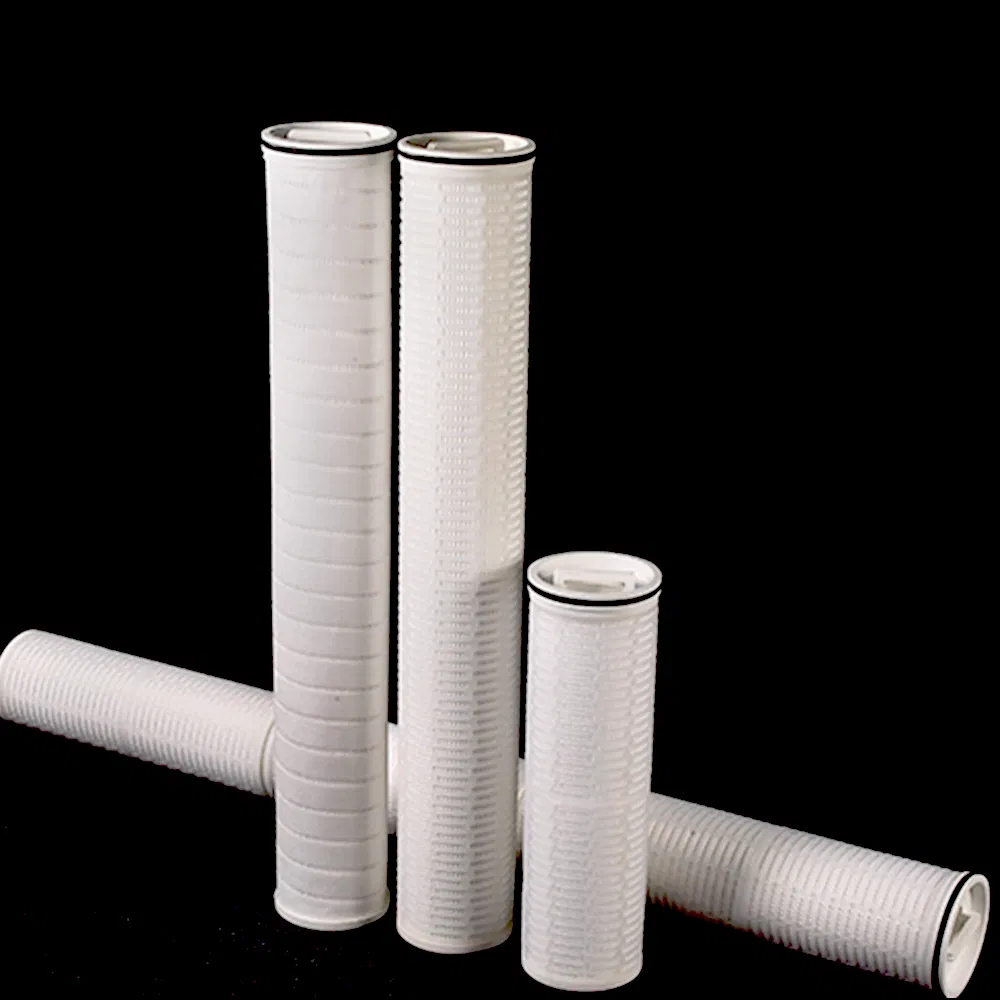

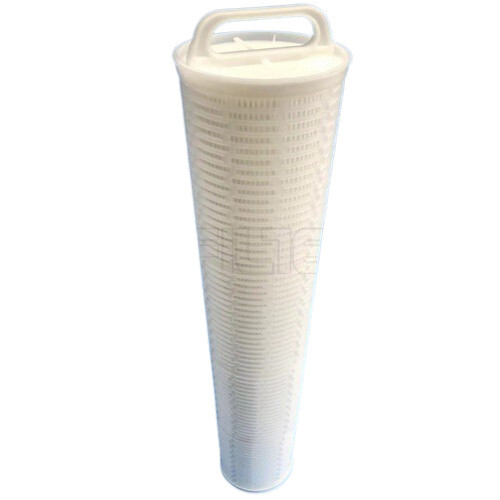

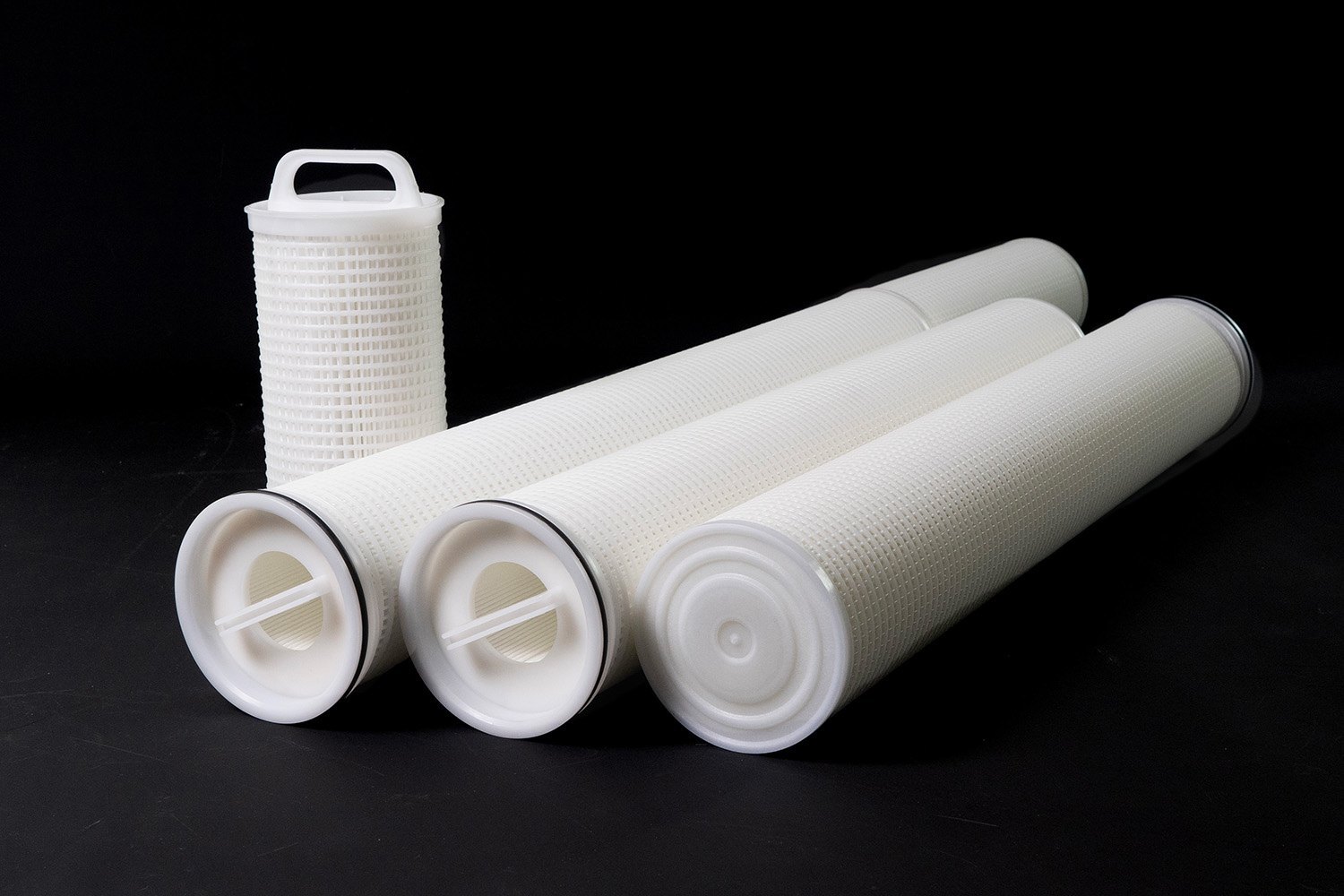

High flow cartridge filter

Description

1. Product Overview
   High flow cartridge filter — a high-capacity, engineered pleated filtration cartridge designed for industrial liquid and gas systems. It delivers superior particle retention and minimal pressure drop for continuous process filtration in demanding operations such as chemical processing, water treatment, and petrochemical refining. The product’s key value proposition is high throughput with consistent micron-rated performance, reducing downtime and lowering total cost of ownership through extended service life and easy replacement. Strategically, it enables operators and procurement teams to scale filtration capacity reliably while meeting regulatory and production-quality targets.

2. Key Specifications & Technical Characteristics

• Filter type: High-flow pleated cartridge filter, single-open-end (SOE) or double-open-end (DOE) options available.

• Media materials: Polypropylene (PP) melt-blown or microfiber, polyethersulfone (PES), PTFE membrane (optional), stainless-steel mesh support (304/316).

• End caps and core: Polypropylene, glass-filled nylon, or 316 stainless steel (application-dependent).

• Micron ratings: 0.1 µm to 100 µm standard; custom ratings available on request.

• Filtration area: High-surface-area pleated design, typical surface area 0.5–5.0 m² per cartridge (model dependent).

• Flow capacity: High flow design, nominal flow rates ranging from 2–20 m³/h per cartridge, depending on micron rating and fluid viscosity.

• Temperature rating: Standard PP construction to 80°C; PES/PTFE options to 120°C; stainless steel core options for higher temperatures.

• Pressure rating: Operating differential pressure up to 3.5 bar (50 psi) typical; higher-pressure versions on request.

• Chemical compatibility: Broad solvent and chemical resistance with material-specific compatibility charts available; PTFE/PES for aggressive chemistries.

• Physical characteristics: Cylindrical pleated geometry, typical lengths 10″, 20″, 30″, 40″; outer diameter standard 2.5″ (industrial sizes available). Color: natural/white media; optional coded end caps.

• Density / porosity: Media porosity engineered per micron rating; manufacturer-specified permeability and Beta-ratio (βx) performance data supplied with orders.

• Packaging options: Individual sealed bags; box quantities (10–50 cartridges per box); palletized crates for bulk orders; vapor-barrier packaging available for sensitive applications.

• Shelf life: Stable under normal storage for 36 months when stored dry and protected from UV and extreme temperatures.

• Certification & testing: Supplied with factory QC data sheet; available certifications: ISO 9001 production traceability, optional third-party performance testing and FDA/USP compliance for food/pharma-grade media where applicable.

3. Core Industrial Applications

• Primary industries: Chemical processing, oil & gas (upstream/midstream/refining), municipal and industrial water treatment, power generation, pharmaceuticals, food & beverage, metal finishing, and industrial coatings.

• Operational use cases: Pre-filtration and final polishing in continuous production lines; filtration of process water, cooling water, and boiler feed; removal of particulates from solvents, acids, and alkalis; cartridge-based skid systems for high-rate filtration and membrane pre-treatment.

• Why it outperforms alternatives: The pleated high-surface-area design provides significantly higher dirt-holding capacity and lower pressure drop than equivalent-depth or spun cartridges, extending service intervals and reducing replacement frequency. Material options (PTFE/PES/SS support) allow precise compatibility with aggressive chemistries where standard media fail. Modular cartridge format enables rapid on-site changeouts, minimizing downtime compared with vessel-based or bespoke filter housings.

• Efficiency and cost advantages: Higher throughput per cartridge reduces number of cartridges and vessel changes required, lowering labor and disposal costs. Predictable performance curves simplify capacity planning and reduce over-specification, delivering measurable OPEX savings across continuous operations.

4. Competitive Advantages

• Quality consistency: Manufactured under ISO 9001 processes with per-batch QC and performance traceability (Beta-ratio and flow vs. ΔP curves).

• Supply reliability: Industrial-scale production capacity with safety stock inventory; capacity to support recurring monthly or project-level contracts.

• Logistics capability: Global shipping readiness from multiple distribution hubs; palletized container loading optimized for safe transit and fast customs processing.

• Price competitiveness: Market-competitive unit pricing at scale with tiered discounts for contract volumes and long-term supply agreements.

• Sustainability: Long service life reduces waste; recyclable core and reduced packaging options; optional bio-based media on request to support circular procurement goals.

• Technical support: Detailed compatibility matrices, installation guides, replacement scheduling recommendations, and access to application engineers for filtration system sizing and troubleshooting. Full technical datasheets and test certificates supplied with each shipment.

5. Commercial & Supply Information

• Minimum order quantity (MOQ): BULK 20MT.

• Loading capacity (MT per container): Typical TEU (20-ft) container capacity: approximately 18–20 MT, depending on packaging configuration; 40-ft container capacity: approximately 24–26 MT.

• Lead times: Standard production lead time and delivery timing available on request; expedited manufacturing and air freight options for urgent orders.

• Packaging and labeling: Customer-specific labeling, batch traceability labels, and export documentation available for international shipments.
