High Current Busbar System — IEC 61439

Description

1. Product Overview

High Current Busbar System — IEC 61439 is an engineered low-voltage power distribution solution designed to safely transmit and distribute high electrical currents in industrial and commercial installations. Manufactured using high-conductivity copper or aluminum conductors with advanced insulation and enclosure technologies, it provides reliable power management for switchboards, data centers, manufacturing facilities, and infrastructure projects. The system delivers superior electrical performance, space optimization, and enhanced operational safety compared with traditional cable-based distribution methods. As global industries demand higher energy efficiency and scalable electrical infrastructure, IEC 61439-compliant busbar systems have become a strategic component for modern power distribution networks.

2. Key Specifications & Technical Characteristics

• Material Components:
  • High-conductivity electrolytic copper (Cu) or aluminum (Al) conductors
  • Flame-retardant insulation materials (PVC, epoxy resin, polyester film, or equivalent)
  • Protective metal enclosure made from galvanized steel, aluminum alloy, or powder-coated steel
• Standards & Compliance:
  • Designed and tested according to IEC 61439 low-voltage switchgear and controlgear assembly standards
  • Supports international electrical safety and performance requirements
• Electrical Characteristics:
  • Rated current capacity: Typically 400A–6300A+ depending on configuration
  • Rated operational voltage: Up to 1000V AC/DC
  • High short-circuit withstand capability for demanding industrial environments
  • Low power losses through optimized conductor design
• Physical Characteristics:

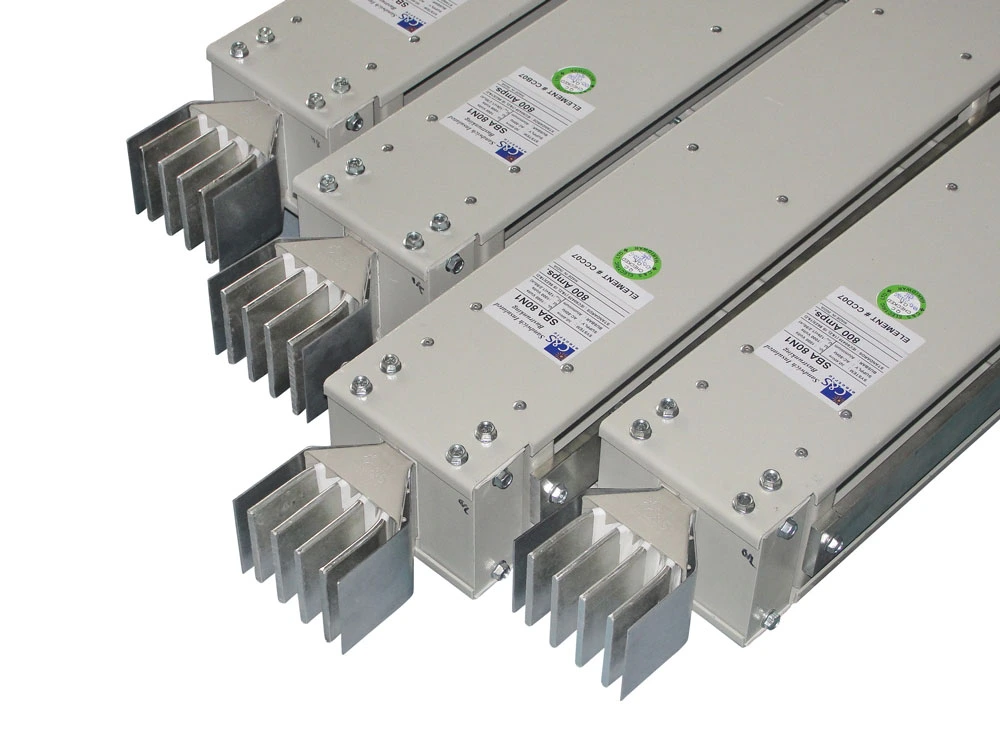

  • Form: Modular enclosed busbar trunking system
  • Conductor finish: Tin-plated or bare copper/aluminum surface options
  • Color: Standard industrial enclosure finishes such as grey, black, or customized colors
  • Compact design for efficient space utilization
  • High mechanical strength and thermal resistance
• Configuration Options:
  • Straight busbar sections
  • Plug-in distribution units
  • Feeder sections
  • Expansion joints and connection accessories
  • Indoor and outdoor installation variants
• Packaging Options:
  • Export-standard wooden crates, protective foam packaging, and reinforced cartons
  • Customized packing solutions for long-distance industrial transportation
• Shelf Life:
  • Typically 10+ years under proper storage conditions with protection from moisture, corrosion, and mechanical damage

3. Core Industrial Applications

• Data Centers & IT Infrastructure:
  Provides high-capacity, reliable power distribution for servers, cooling systems, and critical electrical equipment where uptime and energy efficiency are essential.
• Manufacturing & Industrial Facilities:
  Used for supplying power to production lines, automated machinery, robotics systems, and heavy electrical equipment requiring stable high-current distribution.
• Commercial Buildings & Infrastructure Projects:
  Supports electrical distribution in shopping centers, airports, hospitals, and large-scale construction developments.
• Renewable Energy & Power Projects:
  Enables efficient connection and distribution of power in solar farms, battery storage systems, and energy management installations.
• Why It Performs Better Than Alternatives:
  • Reduces installation complexity compared with multiple parallel cable systems
  • Provides lower voltage drop and improved energy efficiency
  • Requires less maintenance due to robust modular construction
  • Allows easy expansion and future capacity upgrades

4. Competitive Advantages

• Quality Consistency:
  Manufactured under strict quality control processes with IEC 61439 compliance testing to ensure dependable electrical performance and long service life.
• Supply Reliability:
  Supported by scalable production capacity, standardized components, and consistent availability for industrial project requirements.
• Logistics Capability:
  Designed for efficient international shipment with export-ready packaging and flexible delivery solutions for bulk infrastructure projects.
• Price Competitiveness:
  Offers reduced total installation and lifecycle costs through faster installation, lower maintenance requirements, and optimized energy efficiency.
• Sustainability Benefits:
  Copper and aluminum conductors are highly recyclable, while efficient power transmission helps reduce energy losses and operational carbon footprint.
• Technical Support & Documentation:
  Available with engineering drawings, IEC compliance documentation, installation manuals, test certificates, and customized technical assistance.

5. Commercial & Supply Information

• Minimum Order Quantity (MOQ): BULK 20MT
• Loading Capacity: Approximately 18–22 MT per 20-foot container (depending on busbar configuration, dimensions, and packaging method)
