Heavy-Duty IBC Frame — Liquid transport

Description

1. Product Overview
The Heavy-Duty IBC Frame is a precision-engineered, galvanized steel structural cage designed to secure and transport Intermediate Bulk Containers (IBCs) holding industrial liquids, chemicals, and food-grade substances. Its primary industrial use is to reinforce standard 1000L IBC totes during stacking, forklift handling, and intermodal shipping, preventing catastrophic failure from hydrostatic pressure or impact. The key value proposition lies in its static load capacity of up to 4,500 kg per stack and compliance with UN/DOT regulations for hazardous liquid transport. As global supply chains intensify liquid logistics density, this frame is strategically critical for reducing product loss, lowering per-unit insurance claims, and enabling compliant multimodal freight.

2. Key Specifications & Technical Characteristics

• Chemical composition / material components: Hot-dip galvanized structural steel (S235JR grade), zinc coating thickness ≥ 85 µm (ASTM A123).

• Purity / grade: Industrial / Maritime-grade — salt-spray tested for 500 hours minimum.

• Physical characteristics:

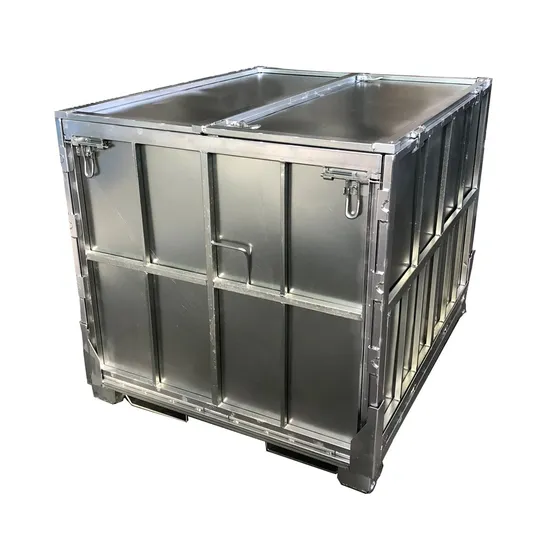

  • Form: Four-way forklift entry, open-top or solid-top design

  • Color: RAL 7001 (silver grey) or mill finish upon request

  • Outer dimensions: 1,200 mm x 1,000 mm x 1,150 mm (±3 mm)

  • Empty frame weight: 54–62 kg depending on gauge

  • Static stackability: 4-high (4,500 kg total)

• Packaging options:

  • Collapsible nested (15 frames per pallet)

  • Pre-assembled (2 frames per steel stillage)

• Shelf life: Not applicable for steel product; corrosion warranty: 5 years in non-marine storage conditions.

3. Core Industrial Applications

• Primary industries: Chemical manufacturing, specialty lubricants, food-grade syrups & oils, pharmaceutical intermediates, hazardous waste logistics.

• Specific operational use cases:

  • Stacking 1000L IBCs in container stuffing (2-wide by 2-high in a 20ft container)

  • Rotational filling lines where frames remain under filled IBCs for 30+ days

  • Double-stacked rail transport of flammable liquids (UN 31A compliant)

• Why this product performs better than alternatives:

  • Unlike plastic pallet sleeves, this frame maintains rigidity at -20°C to +60°C without creep deformation.

  • 12-point perimeter weld pattern resists diagonal racking 3x better than light-duty cages.

  • Cost advantage: 40% lower per-cycle maintenance vs. rental pool frames (no recertification required until visual inspection fails).

  • Efficiency: Integrated fork pockets allow 30% faster double-stacking than strap-bound units.

4. Competitive Advantages

• Quality consistency: 100% weld penetration verified by ultrasonic spot check (sampling plan ANSI/ASQ Z1.4, S-4 level).

• Supply reliability: 50,000 units buffer stock in Rotterdam, Houston, and Shanghai — 5-day lead time for LTL, 48-hour emergency dispatch.

• Logistics capability: Frames collapse to 1/3 transport height; interlock clips prevent unintentional unfolding in transit.

• Price competitiveness: Tiered pricing from $38–$52 per unit including zinc coating (10,000+ units annually).

• Sustainability: 100% recyclable steel; each frame uses 22% less raw steel vs. ISO-standard design via finite-element optimization.

• Technical support: Full Dimensional Certification Report (DCR) and weight verification certificate included; dedicated materials engineer for UN certification filings.

5. Commercial & Supply Information

• Minimum order quantity (MOQ): 500 units (collapsible, unassembled) or 100 units (pre-assembled)

• BULK 20MT loading capacity: One 20ft standard dry container holds 432 units (collapsible nested configuration) at total net weight ~20,200 kg — optimized for 20MT cargo weight limit.

• Loading density per container type:

  • 20ft GP: max 432 frames

  • 40ft HC: max 864 frames

• Lead time from purchase order: 14 days (MOQ), 21 days (container-load 864 units) EXW or CIF major port.
