Epoxy Molding Compound (EMC)

Description

1. Product Overview
Epoxy Molding Compound (EMC) is a high-performance, thermoset encapsulant engineered for the transfer molding of semiconductor packages and electronic components. Its primary industrial use is to protect sensitive integrated circuits (ICs), transistors, and discrete devices from mechanical stress, moisture, ionic contamination, and thermal cycling. With ultra-low alpha particle emissions, exceptional moldability, and superior reliability in high-temperature operating environments, EMC is strategically critical for automotive, consumer, and industrial electronics manufacturers seeking to reduce field failures and extend product lifespan.

2. Key Specifications & Technical Characteristics

• Chemical Composition: Epoxy resin, phenolic hardener, fused silica filler (70–90 wt.%), flame retardant (halogen-free optional), catalyst, coupling agent, and carbon black

• Purity Level: Low-alpha (<0.005 counts/cm²/hr) for memory/automotive; standard grade for general packaging

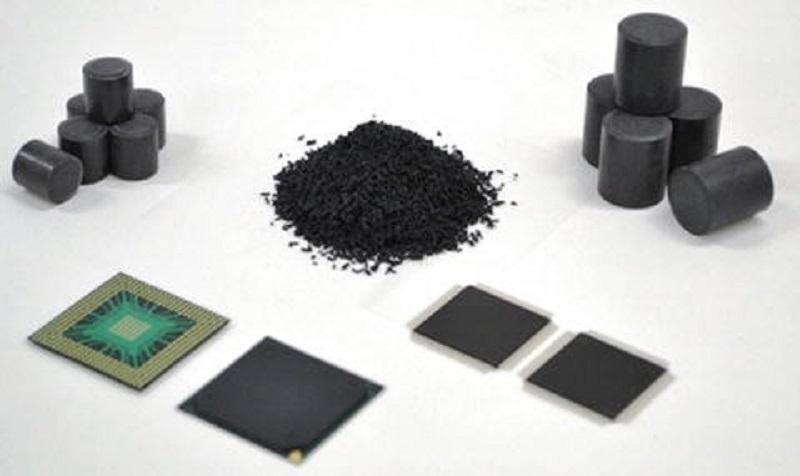

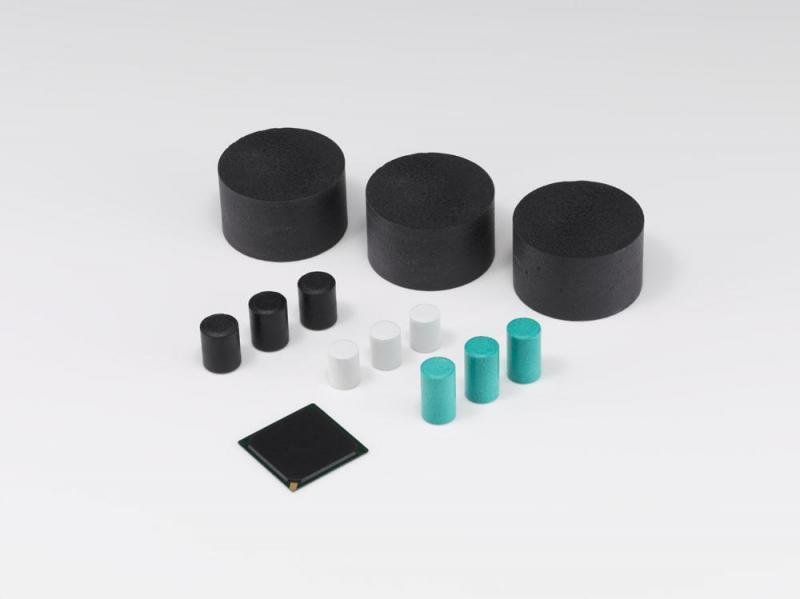

• Physical Form: Solid cylindrical or tabletized pellets; color: black

• Particle Size (pre-mold): Uniformly granulated, 100% passing 4 mm mesh

• Spiral Flow (at 175°C): 80–200 cm (grade dependent)

• Glass Transition Temperature (Tg): 125°C – 220°C (high-Tg versions available)

• Thermal Conductivity: 0.7 – 3.5 W/m·K (filled grades)

• Storage & Shelf Life: 6–12 months at ≤5°C in sealed moisture-barrier packaging

• Packaging Options: Aluminum moisture barrier bags (1 kg, 5 kg, 10 kg), vacuum-sealed cartons, and 200 kg drum-in-box for bulk molding

3. Core Industrial Applications

• Automotive Electronics (ECUs, ADAS, power modules): Outperforms silicone or liquid encapsulants by providing superior resistance to thermal shock (-55°C to 175°C) and corrosive gases (H₂S, SO₂).

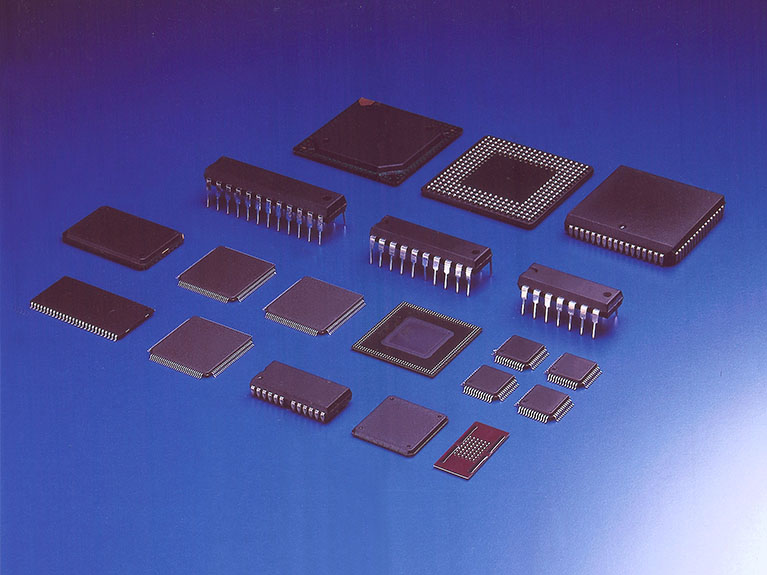

• Consumer Semiconductors (QFN, BGA, SOP packages): Enables ultra-thin molding (<0.3 mm flash-free) at 180–200°C, reducing cycle time by 20% vs. standard EMC.

• Power Discrete Devices (MOSFETs, IGBTs): High-filler loading (88–90%) reduces coefficient of thermal expansion (CTE) to <10 ppm/°C, matching copper leadframes and preventing die cracking.

• Memory & Logic ICs (DRAM, NAND, MPU): Low-alpha grade eliminates soft error risks, critical for data centers and servers.

• Cost advantage: Transfer molding with EMC achieves >98% material utilization, versus 60–70% for liquid dispensing, lowering total cost per thousand units.

4. Competitive Advantages

• Quality Consistency: SPC-controlled manufacturing with Cpk >1.33 for spiral flow, gel time, and Tg. Each lot includes ASTM/JPCA-certified test coupons.

• Supply Reliability: Multi-site production (Asia, Europe, Americas) with 8-week standard lead time and bonded inventory programs for strategic buyers.

• Logistics Capability: Cold-chain logistics network (2–8°C) with real-time temperature logging; door-to-door delivery to 180+ countries.

• Price Competitiveness: Volume discounts up to 18% below regional average for annual commitments >500 MT; quarterly price adjustment caps.

• Sustainability: Halogen-free (IEC 61249-2-21 compliant) and low-VOC formulations available; recycled filler content up to 15% on select grades.

• Technical Support: 24/72-hour global FAE response for mold parameter optimization, QFN voiding reduction, and warpage simulation reports.

5. Commercial & Supply Information

• Minimum Order Quantity (MOQ): 1 MT (metric ton) per grade

• BULK Order Quantity: 20 MT (standard 20-foot reefer container)

• Loading Capacity: 20 MT per 20-foot refrigerated container (palletized, 16 pallets of 1,250 kg each)
