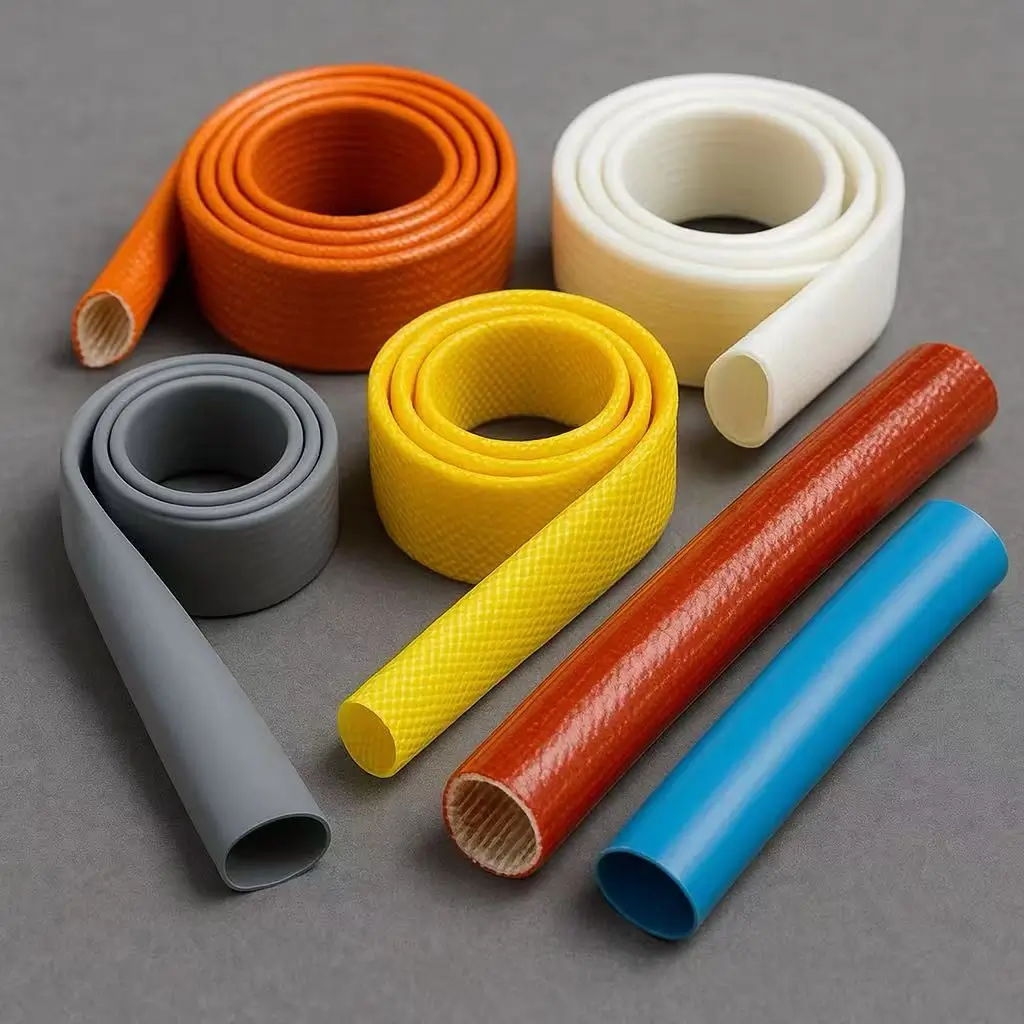

Electrical Insulating Sleeve IEC 60684

Description

1. Product Overview

Electrical Insulating Sleeve IEC 60684 is a high-performance flexible insulation component designed to provide reliable electrical protection, mechanical reinforcement, and thermal resistance for wires, cables, terminals, and electronic assemblies. Manufactured according to IEC 60684 standards, it is widely used in electrical, automotive, industrial automation, power equipment, and electronics manufacturing applications. The product delivers excellent dielectric performance, durability, and protection against abrasion, moisture, chemicals, and heat, helping manufacturers improve system safety and operational reliability. As global industries move toward higher electrical efficiency and advanced electrification systems, reliable insulation solutions remain a critical component in modern power and electronic infrastructure.

2. Key Specifications & Technical Characteristics

• Material Composition:

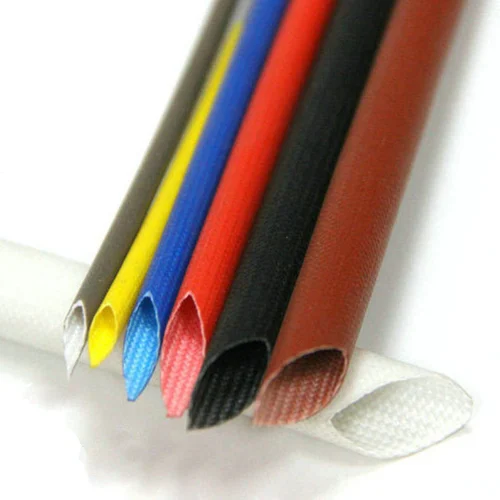

  • Manufactured from high-quality insulating materials such as PVC, silicone rubber, fiberglass braid, polyolefin, polyester, or heat-shrinkable polymer compounds depending on application requirements.
  • Designed for stable electrical insulation and long-term environmental resistance.
• Standard / Grade:
  • Compliant with IEC 60684 Flexible Insulating Sleeves Standard.
  • Available in industrial electrical insulation grades with different voltage and temperature ratings.
• Electrical Properties:
  • High dielectric strength for reliable insulation performance.
  • Excellent resistance to electrical leakage, tracking, and short-circuit risks.
  • Suitable for low, medium, and high-voltage electrical protection applications.
• Physical Characteristics:
  • Form: Flexible tubular sleeve.
  • Colors: Black, red, yellow, blue, white, green, transparent, and customized colors.
  • Sizes: Available in multiple inner diameters and wall thicknesses.
  • Temperature Resistance: Typically available from approximately -40°C to +200°C depending on material type.
  • Properties: Flame retardant, abrasion resistant, moisture resistant, and chemically stable.
• Mechanical Performance:
  • High flexibility for easy installation around complex wiring systems.
  • Strong resistance to tearing, vibration, and mechanical stress.
  • Maintains insulation integrity under continuous operation.
• Packaging Options:
  • Supplied in coils, rolls, spools, or customized lengths.
  • Export packaging available with moisture protection and labeling support.
• Shelf Life:
  • Typically 3–5 years when stored in dry, temperature-controlled conditions away from direct sunlight and chemicals.

3. Core Industrial Applications

• Electrical & Power Equipment Industry:
  • Used for insulating electrical conductors, busbars, terminals, connectors, and cable joints in power distribution systems.
• Automotive & Electric Vehicle Manufacturing:
  • Applied in battery systems, motor wiring, charging systems, and electronic control units to enhance electrical safety and durability.
• Industrial Automation & Machinery:
  • Protects wiring harnesses, sensors, control panels, and electrical components exposed to vibration, heat, and mechanical stress.
• Electronics & Appliance Manufacturing:
  • Used for internal wire protection in consumer electronics, industrial devices, transformers, and electrical assemblies.
• Renewable Energy Systems:
  • Supports insulation requirements in solar power systems, wind turbines, energy storage equipment, and power conversion units.
• Performance Advantages:
  • Provides superior insulation reliability compared with conventional wrapping methods.
  • Reduces installation time, maintenance requirements, and electrical failure risks.
  • Enhances product lifespan through improved environmental and mechanical protection.

4. Competitive Advantages

• Consistent Quality Performance:
  • Manufactured under controlled production processes to ensure uniform dimensions, insulation properties, and compliance with IEC standards.
• Reliable Supply Capability:
  • Suitable for high-volume industrial procurement with stable production capacity and customized manufacturing options.
• Global Logistics Support:
  • Export-ready packaging, flexible shipment arrangements, and bulk supply solutions for international buyers.
• Cost Competitiveness:
  • Provides a cost-effective alternative to complex insulation systems while maintaining high electrical protection standards.
• Durability & Sustainability Benefits:
  • Long service life reduces replacement frequency and maintenance costs.
  • Available with environmentally compliant materials and flame-retardant formulations.
• Technical Documentation Support:
  • Documentation available including technical datasheets, IEC compliance information, quality certificates, and inspection reports.

5. Commercial & Supply Information

• Minimum Order Quantity (MOQ): BULK 20MT
• Loading Capacity: Approximately 20MT per standard container
• Supply Capability: Suitable for industrial-scale orders, OEM requirements, and long-term sourcing contracts.
