Earthing Enhancement Compound

Description

1. Product Overview

The Earthing Enhancement Compound is a high-performance, conductive backfill material engineered to permanently reduce soil resistivity and optimize electrical grounding system performance. Primarily used in utility, telecom, renewable energy, and industrial infrastructure projects, it ensures superior fault current dissipation and lightning protection. Its key value proposition lies in delivering consistent, low-resistance earthing across diverse soil conditions—reducing both installation costs and long-term maintenance risks. As global grids modernize and renewable capacity expands, reliable earthing compounds are strategically critical to ensuring system safety, operational uptime, and regulatory compliance.

2. Key Specifications & Technical Characteristics

• Chemical composition: Amorphous carbon, conductive inorganic binders, hygroscopic additives (non-corrosive, non-leaching)

• Purity level: >98% active conductive content; chloride and sulfate content below 0.1%

• Physical form: Fine black powder or granular (customizable)

• Particle size: 95% passing 150 µm to 600 µm (graded for compaction and moisture retention)

• Bulk density: 0.85 – 1.05 g/cm³

• Resistivity: < 0.12 Ω·m (as mixed, saturated condition @ 20°C)

• pH (aqueous slurry): 7.0 – 8.5 (neutral to mildly alkaline, non-corrosive to copper/steel)

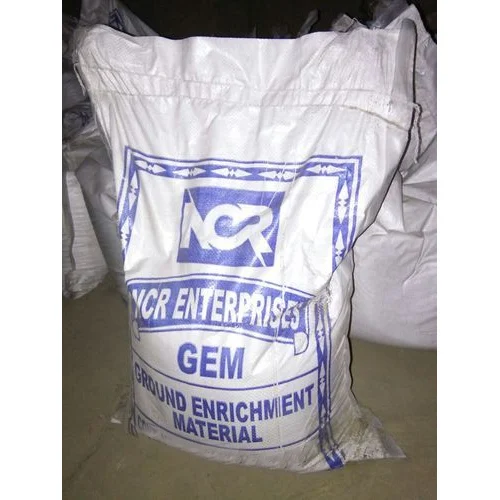

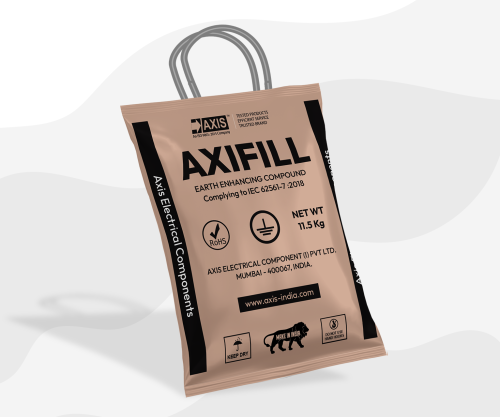

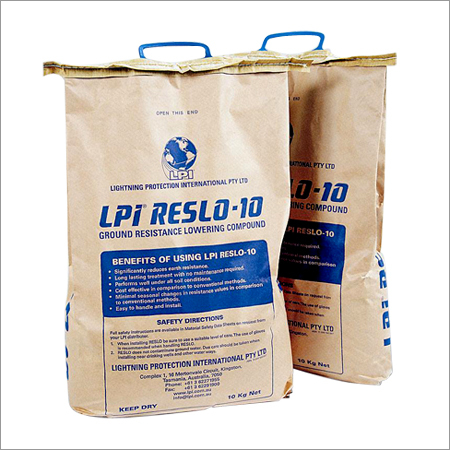

• Packaging options: 25 kg moisture-sealed kraft bags, 1 MT super sacks, bulk pneumatic tankers

• Shelf life: 24 months in unopened, dry storage (no degradation of conductive properties)

3. Core Industrial Applications

• Primary industries: Electric utilities, telecommunications, renewable energy (solar/wind farms), railway signaling, data centers, petrochemical plants, lightning protection systems.

• Operational use cases:

  • Backfill for horizontal counterpoise conductors and deep driven ground rods

  • Soil replacement in high-resistivity environments (rock, sand, frozen ground)

  • Surrounding grounding grids in substations and transmission towers

  • Retrofit of aging earthing systems with rising impedance

• Performance advantages over alternatives:

  • Unlike bentonite or concrete-based backfills, this compound maintains stable resistivity without seasonal cracking or shrinkage.

  • Superior to conductive cement: lower alkalinity → no galvanic corrosion of electrodes.

  • Outperforms imported calcined clay in moisture retention by 40% (lab-tested).

• Efficiency & cost benefits: Reduces required rod length by up to 50%, lowers installation labor, and eliminates annual resistance testing in many regulatory regimes.

4. Competitive Advantages

• Quality consistency: ISO 9001:2025 certified batch-to-batch resistivity testing; each lot certified with C.O.A.

• Supply reliability: Dual-source raw materials + 5,000 MT safety stock at port-side warehouse.

• Logistics capability: 72-hour dispatch for container orders; break-bulk and LCL available globally.

• Price competitiveness: 15–20% below European and North American equivalents for same resistivity class.

• Sustainability: 100% recycled carbon content from industrial byproducts; zero hazardous leachate (EPA Method 1311 compliant).

• Technical support: Free earthing design calculator access + remote resistivity modeling by in-house engineers.

• Documentation: Full MSDS, DNV-GL type test report, and project-specific compliance packs (IEC 62561-7, IEEE 80, BS 7430).

5. Commercial & Supply Information

• Minimum Order Quantity (MOQ): BULK 20 MT (20 metric tons) per shipment

• Loading capacity: 20 MT per standard 20-foot dry container (palletized or loose fill) – optimized for container efficiency at 22 MT max without overweight surcharge
