Earth rod coupling connector — BS EN 62561-2

Description

1. Product Overview

Earth Rod Coupling Connector — BS EN 62561-2 is a precision-engineered grounding accessory designed to securely join earth rods in electrical earthing and lightning protection systems. Manufactured to meet the performance requirements of BS EN 62561-2, it provides reliable mechanical connection and long-term electrical continuity between interconnected grounding electrodes. The product enables efficient installation of deep-driven earthing systems while improving system durability, safety, and compliance with international standards. Its role in modern infrastructure protection makes it a critical component for industrial, commercial, and utility-scale electrical grounding applications.

2. Key Specifications & Technical Characteristics

• Material Composition:
  • High-conductivity copper, copper alloy, or corrosion-resistant metallic construction depending on specification requirements.
  • Designed for compatibility with copper-bonded, galvanized, or stainless-steel earth rods.
• Standard Compliance:
  • Manufactured according to BS EN 62561-2 requirements for earthing system components.
  • Tested for mechanical strength, electrical conductivity, and corrosion resistance.
• Grade / Performance Level:
  • Industrial-grade grounding component suitable for permanent underground installation.
  • High mechanical strength grade for secure rod-to-rod connections during driving operations.
• Physical Characteristics:

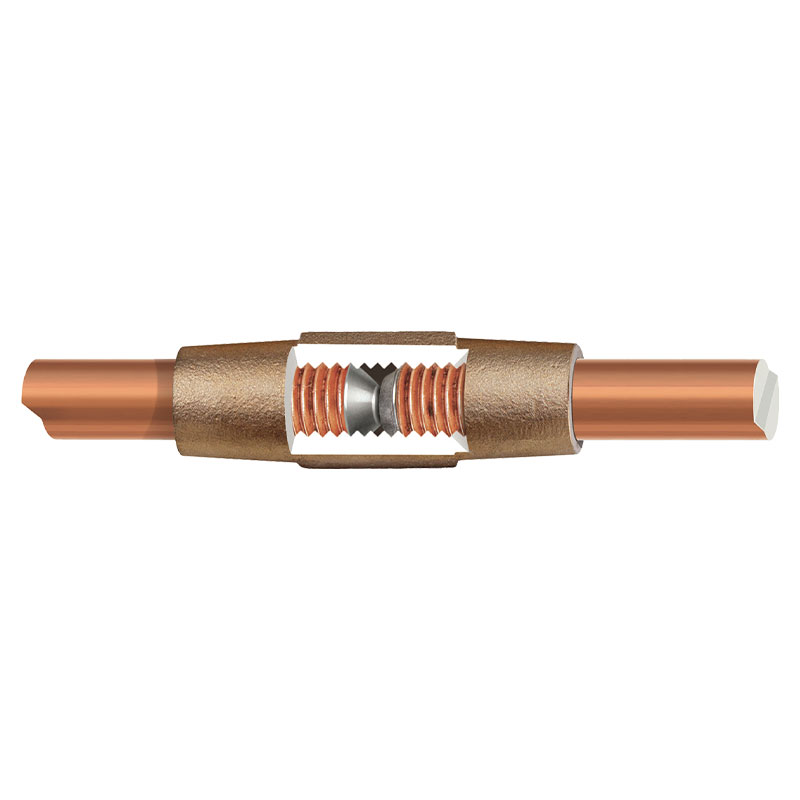

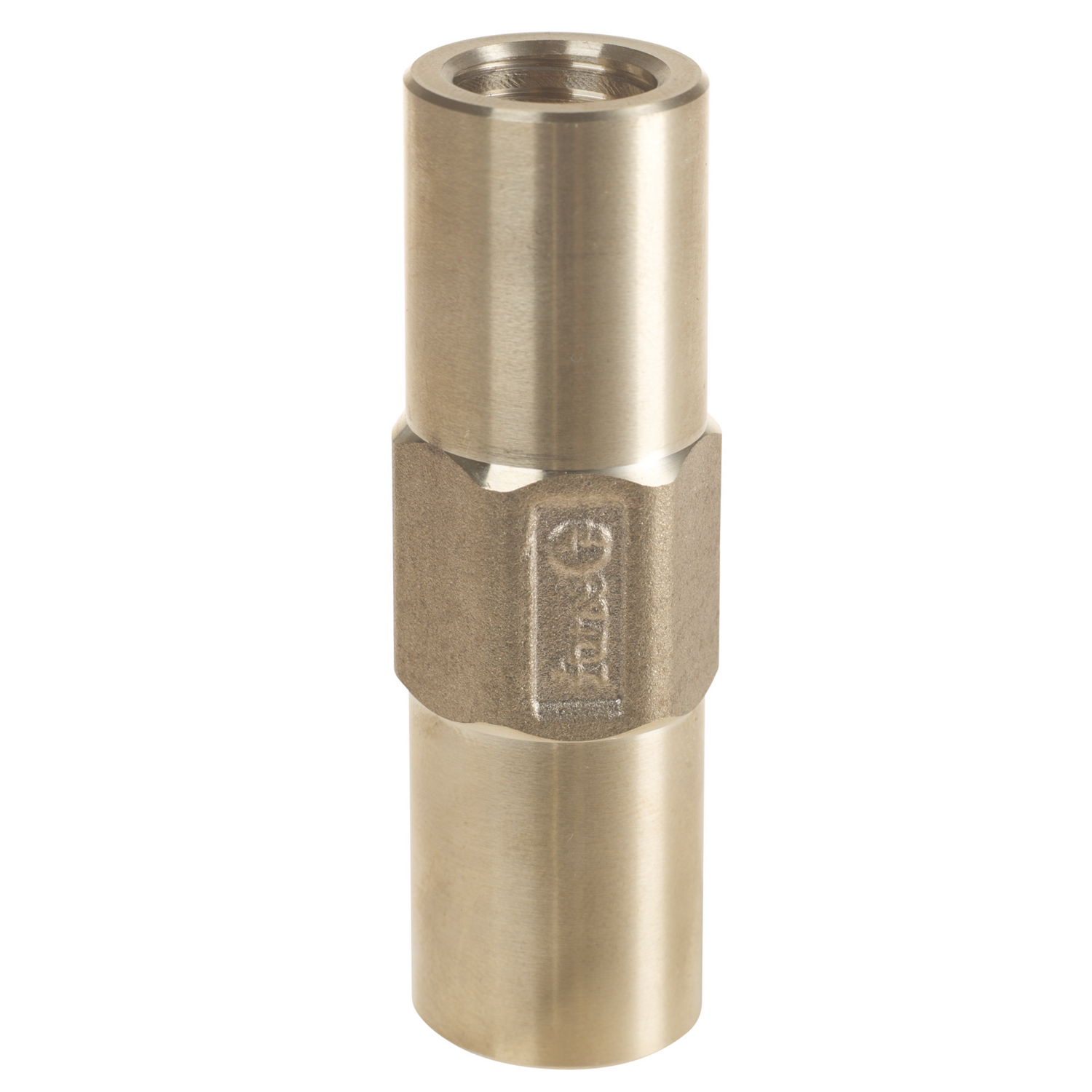

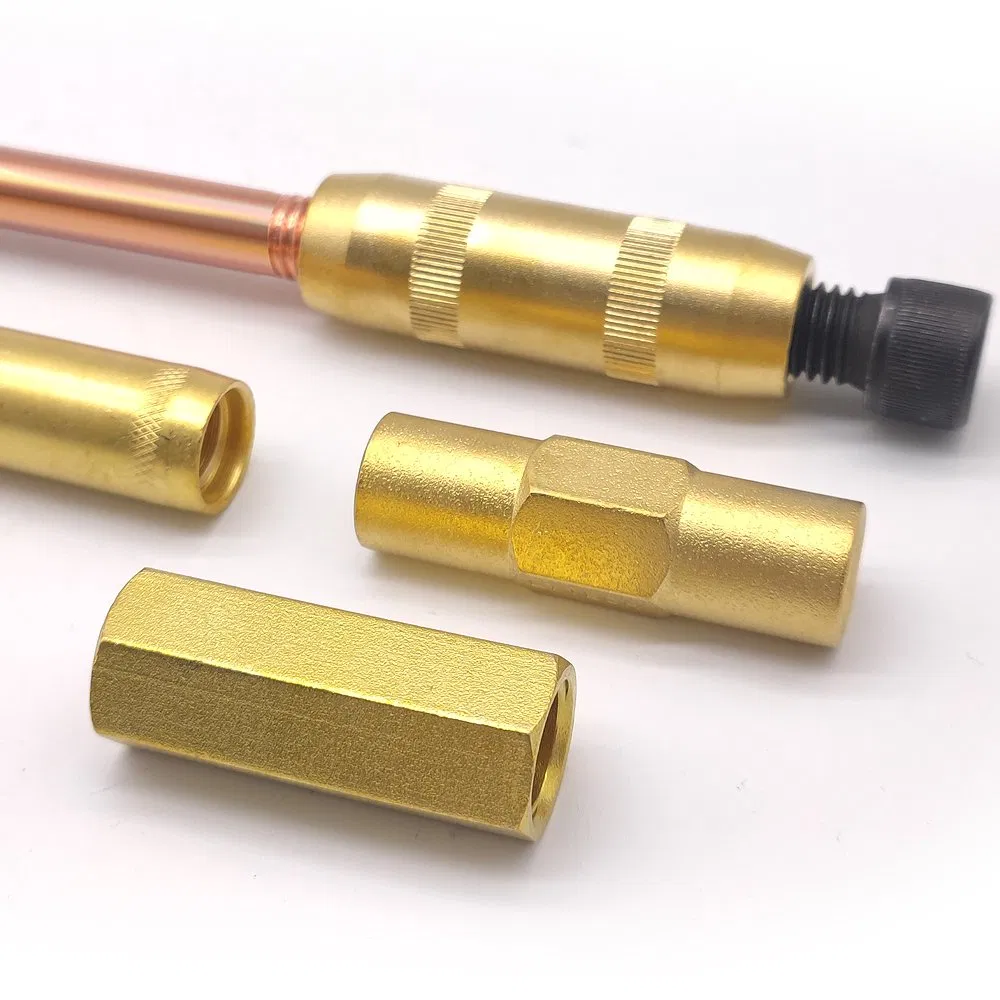

  • Form: Cylindrical threaded coupling sleeve/connector.
  • Surface Finish: Copper-plated, tinned, galvanized, or corrosion-resistant finish depending on model.
  • Color: Metallic copper, silver, or galvanized finish.
  • Thread Type: Compatible with standard earth rod threading systems.
  • Electrical Performance: Low-resistance connection for effective current dissipation.
• Compatibility:
  • Suitable for extending earth electrodes by connecting multiple rods to achieve required grounding depth.
  • Compatible with lightning protection and electrical earthing systems.
• Packaging Options:
  • Bulk cartons, export-grade boxes, or palletized packaging.
  • Customized labeling and packaging available for OEM and large-volume projects.
• Shelf Life:
  • Long-term storage capability when maintained in dry, protected warehouse conditions.
  • Corrosion-resistant finishes support extended service life.

3. Core Industrial Applications

• Electrical Power Infrastructure:
  • Used in substations, transformers, distribution networks, and utility grounding systems to maintain safe electrical discharge paths.
• Construction & Building Services:
  • Installed in commercial buildings, industrial facilities, data centers, and high-rise structures as part of protective earthing networks.
• Lightning Protection Systems:
  • Provides reliable extension and connection of earth electrodes for lightning current dissipation systems.
• Renewable Energy Projects:
  • Applied in solar farms, wind power installations, and energy storage facilities requiring robust grounding solutions.
• Telecommunications & Data Centers:
  • Supports grounding requirements for sensitive electronic equipment and communication infrastructure.
• Performance Advantages:
  • Provides stronger and more stable connections compared with improvised rod joining methods.
  • Enhances installation efficiency by allowing deeper grounding configurations.
  • Delivers long-term reliability through corrosion-resistant materials and standardized manufacturing.

4. Competitive Advantages

• Quality Consistency:
  • Manufactured under controlled production processes to ensure uniform dimensions, mechanical strength, and electrical performance.
• Standards Compliance Assurance:
  • Designed to meet BS EN 62561-2 requirements, supporting global electrical safety and compliance requirements.
• Supply Reliability:
  • Available for large infrastructure projects with consistent production capacity and international sourcing capability.
• Logistics Capability:
  • Export-ready packaging suitable for bulk shipments, containerized transportation, and global distribution networks.
• Cost Competitiveness:
  • Provides a cost-effective grounding solution by reducing installation time, maintenance requirements, and replacement frequency.
• Sustainability Benefits:
  • Durable metallic construction reduces material waste through extended operational service life.
  • Supports safe and efficient electrical infrastructure development.
• Technical Support & Documentation:
  • Available with technical specifications, compliance documentation, product drawings, and quality certificates for engineering and procurement teams.

5. Commercial & Supply Information

• Minimum Order Quantity (MOQ): BULK 20MT
• Loading Capacity (MT per Container): Approximately 18–22 MT per 20-foot container depending on product dimensions, packaging configuration, and loading requirements.
