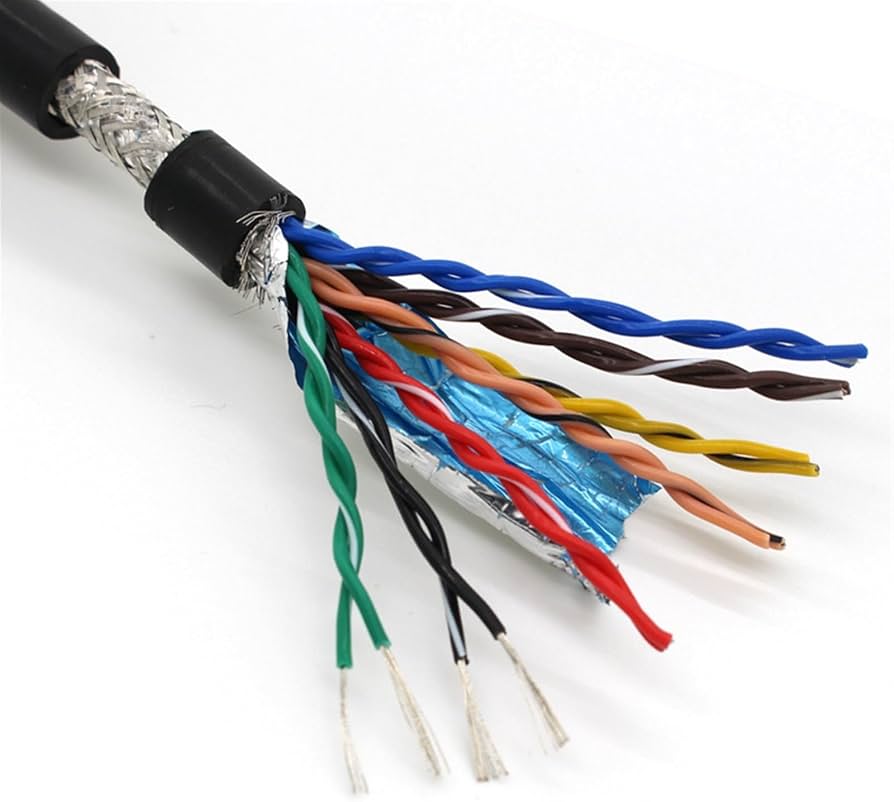

Data Signal Control Cable — IEC 61156

Description

1. Product Overview

Data Signal Control Cable — IEC 61156 is a high-performance communication cable engineered for reliable data transmission, signal control, and industrial networking applications. Designed according to IEC 61156 standards, it provides excellent electrical performance, signal integrity, and resistance against interference in demanding automation and communication environments. Its consistent quality, durability, and transmission efficiency make it a strategic component for modern industrial infrastructure, supporting the growing demand for high-speed connectivity and intelligent systems.

2. Key Specifications & Technical Characteristics

• Material Components:
  • Conductor: High-purity copper or copper alloy conductors for optimized electrical conductivity
  • Insulation: Polyethylene (PE), foamed PE, or advanced polymer insulation materials
  • Shielding: Aluminum foil, copper braid, or combined shielding layers for electromagnetic interference (EMI) protection
  • Outer Jacket: PVC, LSZH (Low Smoke Zero Halogen), or flame-retardant polymer compounds
• Grade & Standard Compliance:
  • Designed according to IEC 61156 international cable performance standards
  • Available in industrial communication grades including Cat 5e, Cat 6, Cat 6A, and higher-performance configurations
  • RoHS-compliant options available for environmentally responsible applications
• Physical Characteristics:
  • Form: Multi-core twisted pair data transmission cable
  • Color: Standard industrial colors including gray, black, blue, and customized options
  • Conductor Size: Typically AWG 22–26 depending on application requirements
  • Shielding Options: Unshielded (UTP), shielded (FTP), and screened (S/FTP) designs
  • Operating Temperature: Approximately -20°C to +70°C (varies by construction)
  • High flexibility with excellent mechanical strength for industrial installation
• Packaging Options:
  • Supplied in wooden drums, reels, or customized coils
  • Standard export packaging suitable for international transportation
  • Customized labeling and documentation available for industrial projects
• Shelf Life:
  • Typically 2–5 years when stored in dry, temperature-controlled conditions away from direct sunlight and chemicals

3. Core Industrial Applications

• Industrial Automation & Control Systems:
  Used for PLC communication, machine control networks, robotics, and automated production lines requiring stable signal transmission.
• Telecommunications & Data Infrastructure:
  Applied in structured cabling systems, industrial Ethernet networks, and communication backbone installations.
• Energy & Utilities:
  Supports monitoring, control, and communication systems in power plants, substations, and smart grid infrastructure.
• Transportation & Infrastructure:
  Used in railway systems, traffic control networks, and industrial monitoring applications requiring high reliability.
• Why It Performs Better:
  • Provides superior signal integrity compared with conventional low-grade cables
  • Reduces electromagnetic interference and transmission errors
  • Offers longer service life with enhanced mechanical and environmental resistance
  • Delivers cost efficiency through reduced maintenance requirements and improved network reliability

4. Competitive Advantages

• Quality Consistency: Manufactured under strict quality control processes to ensure stable electrical performance, dimensional accuracy, and long-term reliability.
• Supply Reliability: Supported by scalable production capacity and dependable supply chains for large industrial procurement requirements.
• Logistics Capability: Available in bulk export packaging with optimized container loading solutions for global distribution.
• Price Competitiveness: Provides an attractive balance of performance, durability, and lifecycle cost compared with premium communication cable alternatives.
• Sustainability Benefits: LSZH and recyclable material options support environmentally responsible infrastructure development and compliance with global regulations.
• Technical Support & Documentation: Available with technical datasheets, compliance certificates, test reports, and project-specific documentation to support engineering and procurement teams.

5. Commercial & Supply Information

• Minimum Order Quantity (MOQ): BULK 20 MT
• Loading Capacity: Approximately 18–22 MT per 20-foot container (depending on cable diameter, drum size, and packaging configuration)
