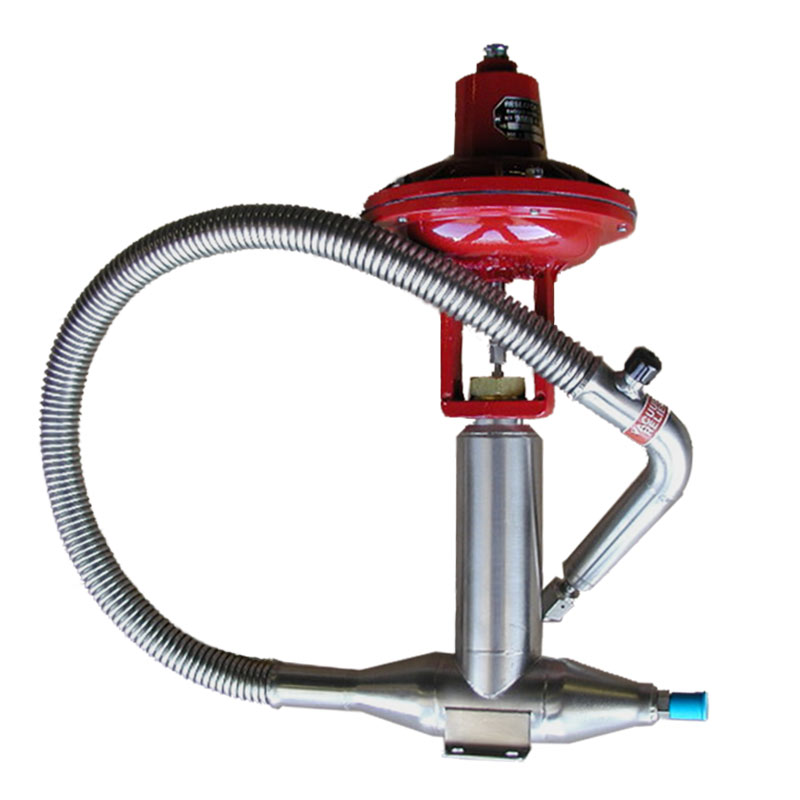

Cryogenic Transfer Hose — CGA Standard

Description

1. Product Overview
The Cryogenic Transfer Hose — CGA Standard is a high-performance flexible transfer line engineered for the safe handling of liquefied gases at ultra-low temperatures. It is widely used in LNG, liquid nitrogen, liquid oxygen, and other cryogenic industrial gas distribution systems where safety, integrity, and thermal stability are critical. The product delivers exceptional reliability under extreme thermal cycling conditions, ensuring leak-free performance and operational continuity. Strategically, it plays a vital role in modern energy, healthcare, and industrial gas supply chains by enabling efficient, safe, and compliant cryogenic fluid transfer across global infrastructure networks.

2. Key Specifications & Technical Characteristics

• Material Composition: PTFE inner core with stainless steel (SS304/SS316) braided reinforcement
• Reinforcement Structure: Multi-layer anti-kink stainless steel braid for high-pressure stability
• Operating Temperature Range: -196°C to +80°C
• Working Pressure: Up to 25–50 bar (depending on configuration)
• End Connections: CGA-standard fittings (compatible with global cryogenic systems)
• Flexibility: High bend radius tolerance for complex routing applications
• Insulation: Optional vacuum-jacketed or thermally insulated variants available
• Corrosion Resistance: High resistance to oxygen, nitrogen, argon, and LNG exposure
• Length Options: Custom-cut lengths (standard industrial configurations available)
• Packaging: Coil-packed, wooden drum, or steel-reinforced export crates
• Shelf Life: Indefinite under proper dry storage conditions

3. Core Industrial Applications

• Primary Industries: LNG infrastructure, industrial gas, petrochemical, metallurgy, healthcare, aerospace, and laboratory systems
• Use Cases: Cryogenic liquid transfer between storage tanks, vaporization systems, filling stations, and transport vessels
• Operational Role: Ensures safe and continuous transfer of ultra-low temperature gases without structural degradation or leakage risk
• Performance Advantage: Outperforms conventional rubber hoses through superior thermal resistance, lower permeability, and extended lifecycle under cyclic cryogenic stress
• Efficiency Benefits: Reduces downtime, minimizes maintenance frequency, and improves system safety compliance in high-demand industrial environments

4. Competitive Advantages

• Quality Consistency: Precision-engineered manufacturing with strict CGA compliance standards
• Supply Reliability: Scalable production capacity for global industrial demand fulfillment
• Logistics Capability: Optimized export packaging for safe intercontinental shipment
• Price Competitiveness: Cost-efficient sourcing model for bulk industrial procurement
• Durability & Safety: Engineered for long service life under extreme cryogenic conditions
• Sustainability: Reduced material waste through extended lifecycle and recyclable stainless-steel construction
• Technical Support: Full documentation, certification support, and engineering assistance available for integration projects

5. Commercial & Supply Information

• Minimum Order Quantity (MOQ): Bulk order starting from 20 MT equivalent shipment
• Bulk Supply Capability: Scalable production for continuous industrial contracts
• Loading Capacity: Approx. 20–26 MT per standard 20ft container (depending on configuration and packaging density)
