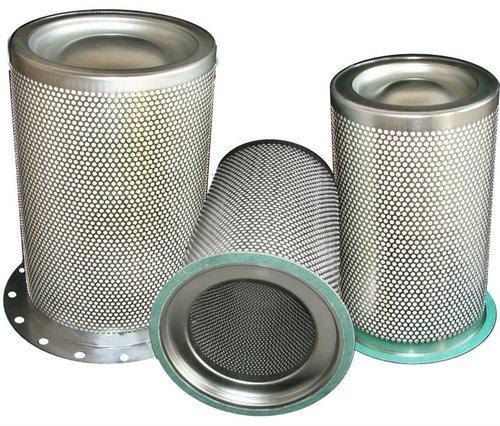

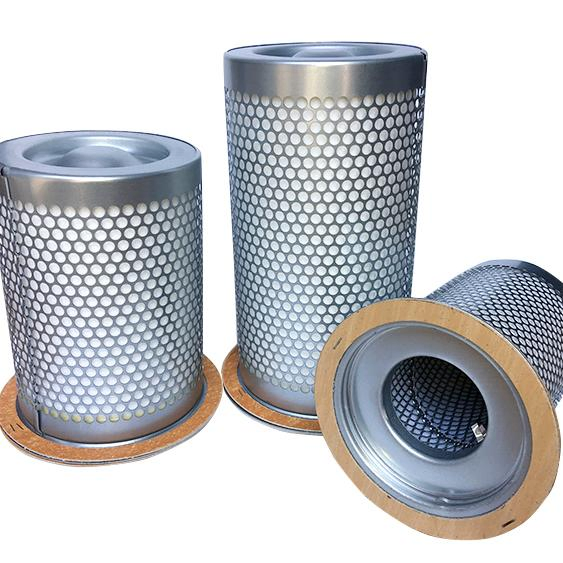

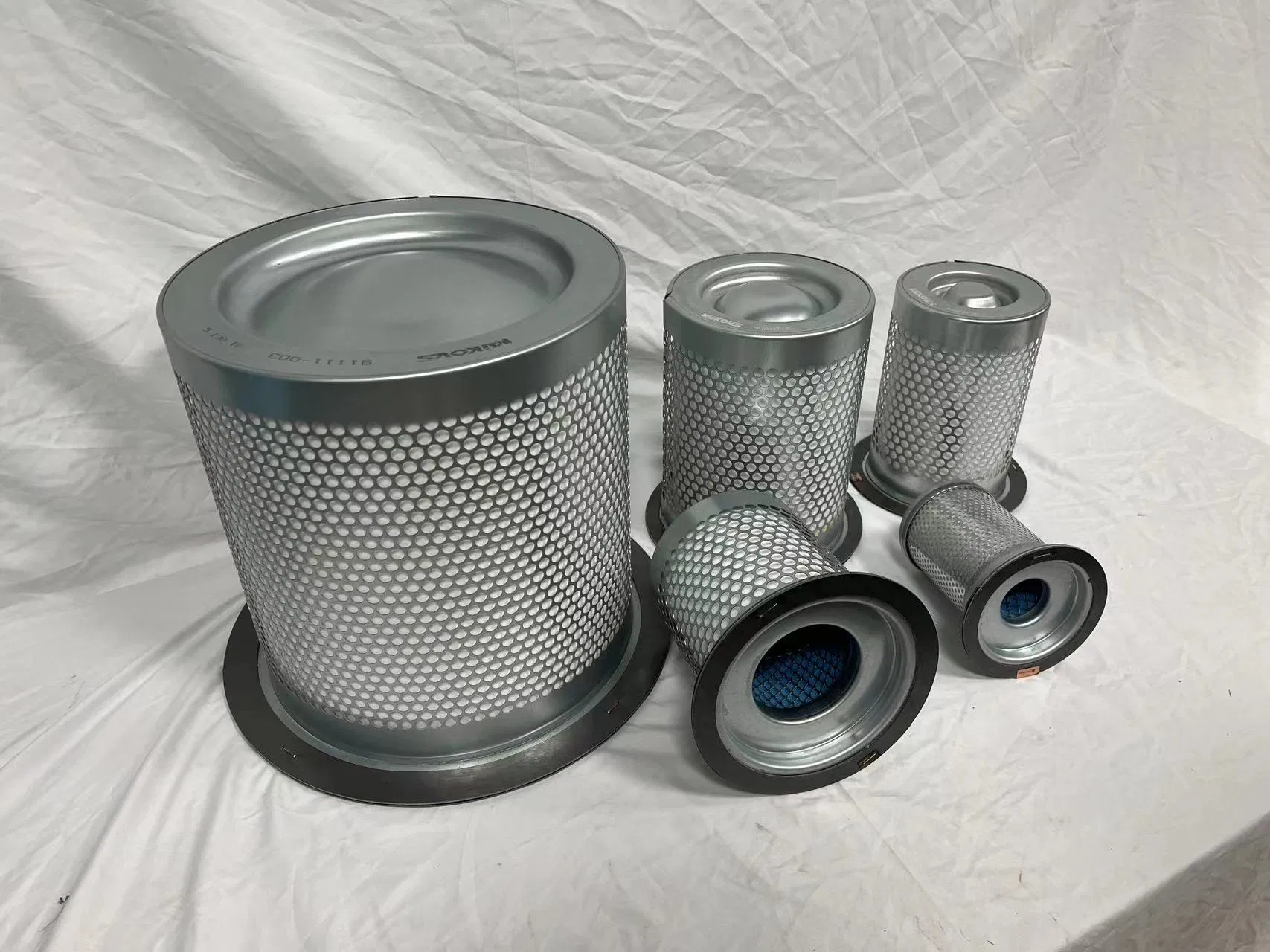

Compressed Air Oil Separator Element

Description

Product Overview
Compressed Air Oil Separator Element is a high-performance filtration cartridge engineered to remove oil aerosols, mist, and particulate contamination from compressed air streams in industrial rotary screws, reciprocating compressors, and packaged air systems. Its primary industrial use is to protect downstream equipment (pneumatic tools, process instrumentation, valves, and dryers) and ensure product quality in manufacturing and process lines. The element delivers superior oil removal efficiency and long service life through multi-stage media design, reducing maintenance frequency and total cost of ownership. Strategically, it safeguards production uptime, minimizes contamination-related rejects, and supports compliance with air quality standards across regulated industries.

Key Specifications & Technical Characteristics

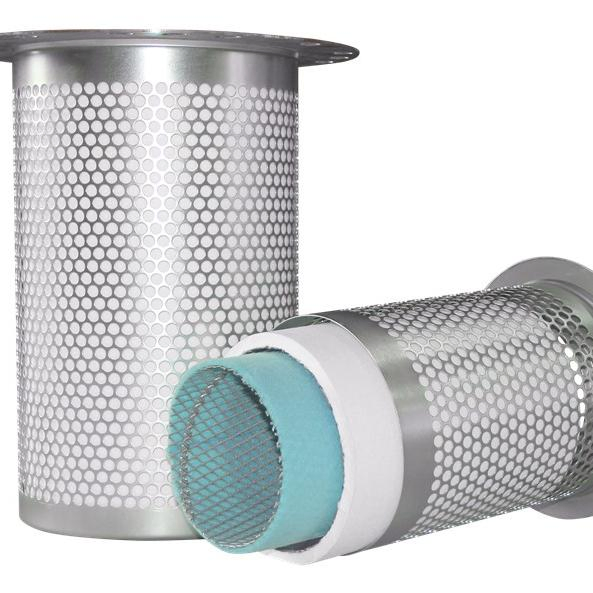

• Media construction: multi-layer composite of glass-fiber depth media, hydrophobic coalescing layer, and microglass final filter (polymeric support structure where specified).

• Housing compatibility: designed for standard industrial separator housings; available as direct-fit OEM-equivalent and universal retrofit cartridges.

• Nominal oil removal efficiency: >99% for oil aerosols ≥0.01 µm under specified flow and differential pressure conditions.

• Pressure rating: compatible with common compressed-air system operating pressures up to 16 bar(g) (custom ratings available).

• Flow range options: cartridge options sized for small point-of-use units up to high-flow central separators (specify model for exact SCFM/ Nm³/h rating).

• Particle retention / nominal micron ratings: final-stage media available in 0.01–1.0 µm performance windows depending on model.

• Differential pressure (clean): low initial ΔP to minimize energy penalty; typical starting ΔP <0.05 bar (model-dependent).

• Temperature range: -20 °C to +80 °C operational (custom high-temp variants on request).

• Materials of construction: corrosion-resistant end caps and cores (stainless steel or engineered polymers), Buna-N or FKM O-ring options.

• Physical form & dimensions: cylindrical cartridge form; diameter and length per model (standard sizes available to fit 20–40 series housings).

• Packaging: bulk shrink-wrapped cartons, wooden crates for pallet shipments, or ISPM-15 treated pallets for export; inner protective sleeves to prevent contamination.

• Shelf life: recommended storage in dry, clean environment; typical shelf life 24 months unopened.

• Quality standards: manufactured under ISO 9001 quality system; available with material certificates and batch test reports on request.

Core Industrial Applications

• Manufacturing & Assembly: Protects pneumatic tools and automation actuators in automotive, aerospace, and heavy machinery plants, reducing downtime and rework from oil-contaminated air.

• Food, Beverage & Pharmaceuticals (utility air): When paired with appropriate downstream dryers and point-of-use filters, supports non-product-contact utility air streams and regulatory compliance for ancillary systems.

• Chemical & Petrochemical: Protects process instrumentation, control valves, and analytical equipment from oil interference, ensuring reliable process control and measurement accuracy.

• Electronics & Semiconductor: Delivers ultraclean air for pneumatic handling and tooling where oil contamination causes yield loss or equipment fouling.

• Paints & Coatings: Prevents oil contamination that leads to finish defects and surface blemishes in spray booths and coating lines.
  Why it performs better than alternatives:

• Multi-stage media optimizes coalescence and capture across particle sizes, delivering higher oil-removal efficiency than single-layer filters.

• Low initial pressure drop reduces compressor load and energy costs compared with denser single-stage alternatives.

• Robust construction and OEM fit options extend service intervals, lowering lifetime maintenance and replacement costs.

• Tailored sizes and media grades enable precise matching to system duty, avoiding over-specification and unnecessary expense.

Competitive Advantages

• Quality consistency: tight manufacturing tolerances and batch testing ensure repeatable performance and predictable lifetime.

• Supply reliability: scalable production and strategic inventory management to support JIT programs and minimize stockouts for industrial buyers.

• Logistics capability: export-ready packaging and containerized shipping solutions with full export documentation and customs support.

• Price competitiveness: tiered pricing for volume commitments, contract pricing for recurring customers, and cost-per-hour-of-service metrics to demonstrate value.

• Sustainability: longer service life and energy-saving low ΔP contribute to lower lifetime carbon footprint; recyclable packaging options available.

• Technical support: detailed installation guides, maintenance schedules, replacement-part cross-reference charts, and application engineering support for system sizing and troubleshooting.

• Compliance documentation: material declarations, ISO quality certificates, and test performance reports available on request.

Commercial & Supply Information

• Minimum order quantity (MOQ) BULK: 20 MT.

• Loading capacity (MT per container): typical 20-foot container loading capacity up to ~20 MT (depending on packaging density and model dimensions); 40-foot container offering approximately 24–26 MT effective capacity.
