Ceramic Fiber Insulation — High-temperature applications

Description

Product Overview
This premium Ceramic Fiber Insulation is a high-temperature refractory material engineered for continuous operation up to 1,260°C (2,300°F) and beyond. It is primarily used in industrial thermal management—furnace linings, kilns, and high-heat process equipment—to drastically reduce heat loss and energy consumption. The key value proposition lies in its exceptional thermal stability, low thermal conductivity, and lightweight nature, enabling faster thermal cycles and lower structural load. Strategically, this product is critical for industries transitioning to energy-efficient, low-carbon operations, offering a direct pathway to reduce fuel use and operational expenditure.

Competitive Advantage Spotlight
Superior thermal efficiency with up to 30% energy savings over conventional refractory bricks, combined with consistent bulk density and global logistics readiness from multiple warehousing hubs.

2. Key Specifications & Technical Characteristics

• Chemical composition: Alumina (Al₂O₃) 45–47%, Silica (SiO₂) 52–54%; trace Fe₂O₃ <0.5%

• Purity level: ≥99% ceramic fiber content; no binder burn-out residue

• Physical characteristics:

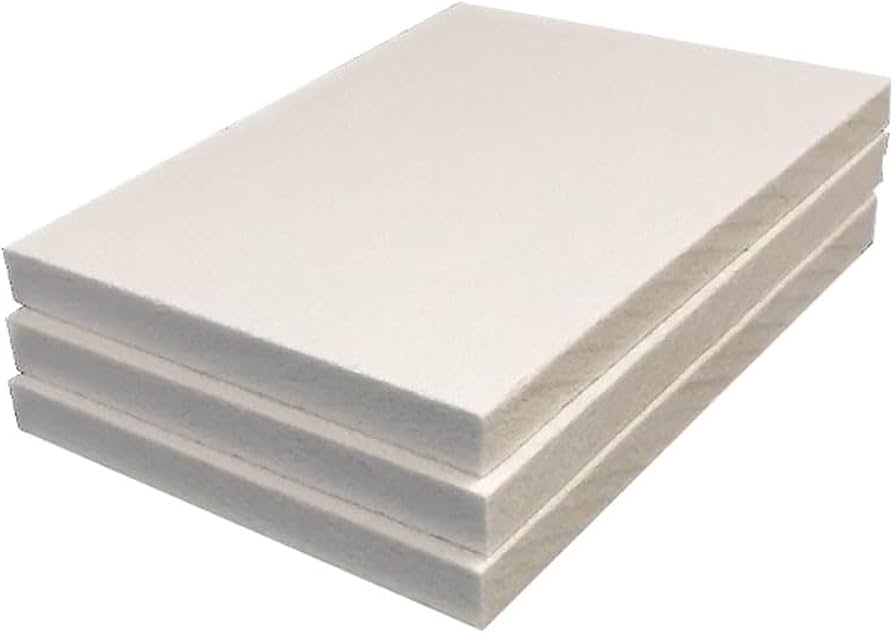

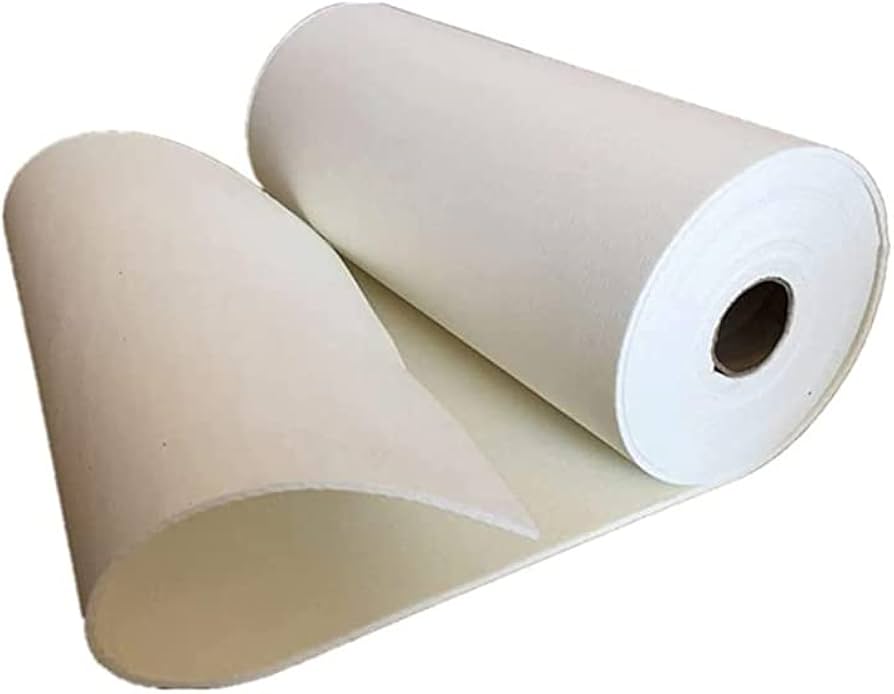

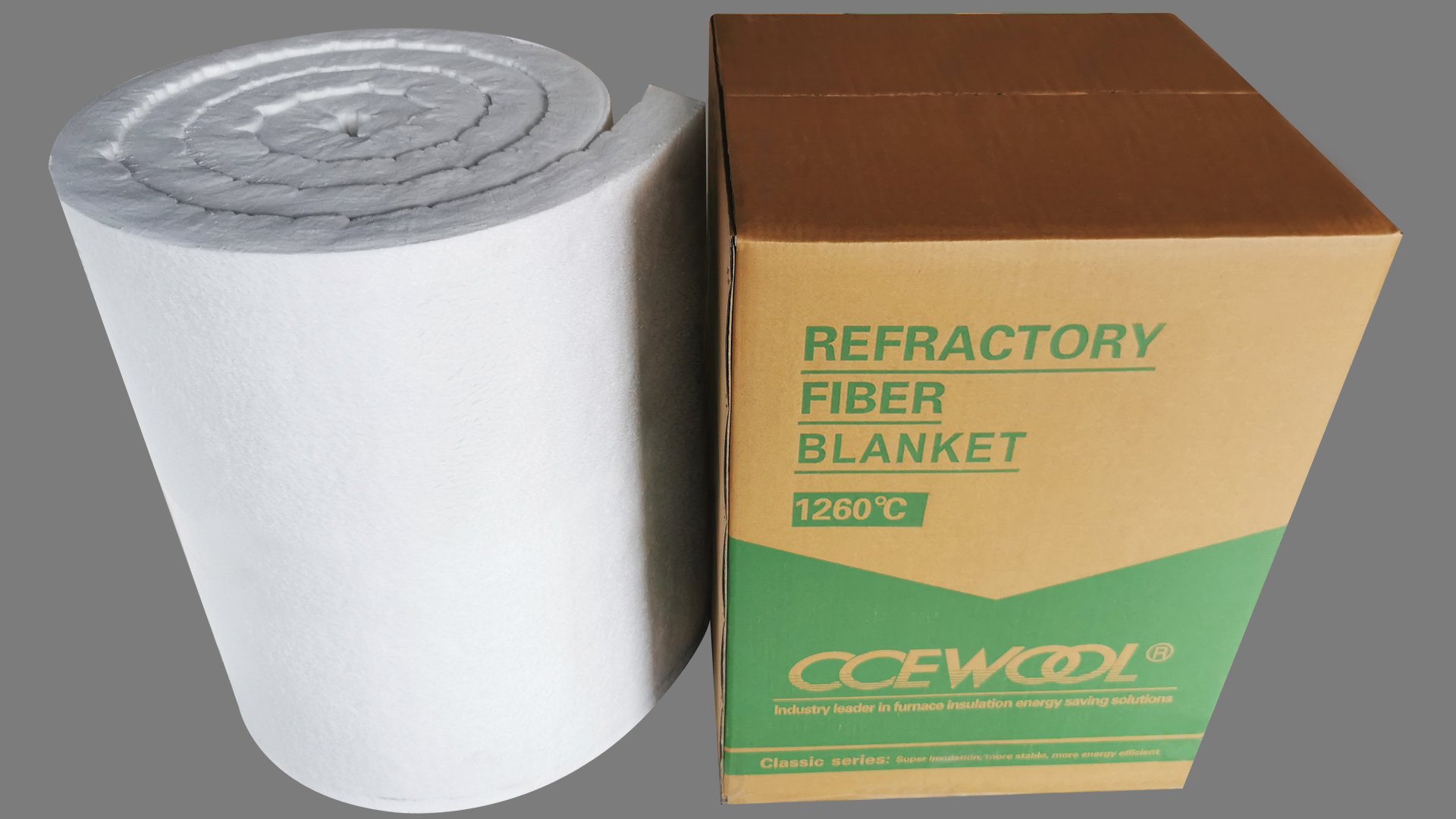

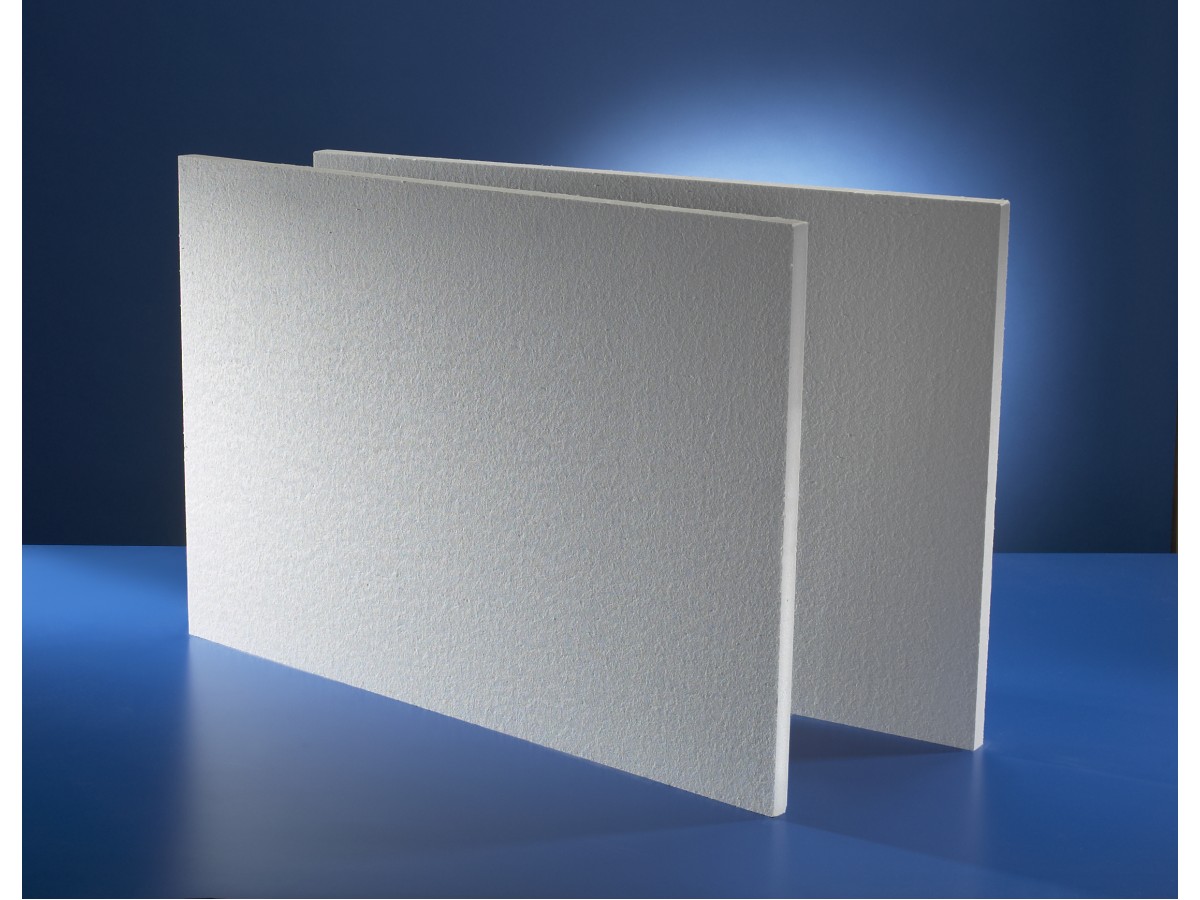

  • Form: Blanket, board, bulk fiber, or paper

  • Color: White to off-white

  • Density range: 96–256 kg/m³ (6–16 lbs/ft³)

  • Fiber diameter: 2–4 µm; shot content <8%

• Packaging options: Waterproof plastic-wrapped rolls (carton or palletized), vacuum-packed bags for bulk fiber, labeled with lot traceability

• Shelf life: Indefinite when stored in dry, original packaging away from moisture and chemicals

3. Core Industrial Applications

• Primary industries: Steel and aluminum smelting, petrochemical cracking, glass manufacturing, power generation (boilers & turbines), and industrial ceramics.

• Operational use cases: Backup insulation for furnace hot-face linings, expansion joints, removable insulation covers for valves and flanges, thermal barriers in kiln cars.

• Performance advantage: Unlike dense castables, ceramic fiber withstands thermal shock without spalling, reduces heat storage by up to 60%, and enables faster furnace cooldown for maintenance.

• Commercial advantage: Lower installation labor (cut with standard knives), minimal anchor requirements, and reduced structural steel costs due to lightweight design.

4. Competitive Advantages

• Quality consistency: ISO 9001:2025 certified with in-line density and shot-content monitoring; each batch tested for thermal conductivity (ASTM C201).

• Supply reliability: Three strategically located production sites (Asia, Middle East, Europe) ensuring <14-day lead time globally.

• Logistics capability: Ready stock for 20+ product grades; export documentation (COO, MSDS, commercial invoice) provided within 24 hours.

• Price competitiveness: Tier-1 performance at tier-2 pricing via vertical integration of raw silica-alumina feedstock.

• Sustainability benefits: Contains pre-consumer recycled fiber content, RoHS-compliant, no asbestos or formaldehyde.

• Technical support: Access to engineering calculation tools (heat loss, thickness selection) and 24/7 application engineering via portal.

5. Commercial & Supply Information

• Minimum Order Quantity (MOQ): BULK 20 metric tons (20 MT)

• Loading capacity per container: 20 MT per 20-ft standard container (palletized or bulk-packed, depending on density)
