Cargo Load Bar — Container safety

Description

1. Product Overview

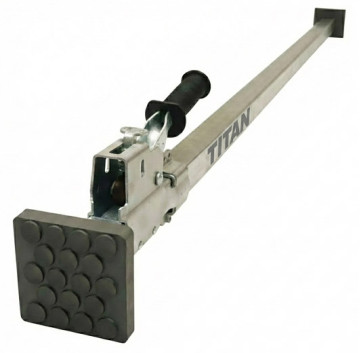

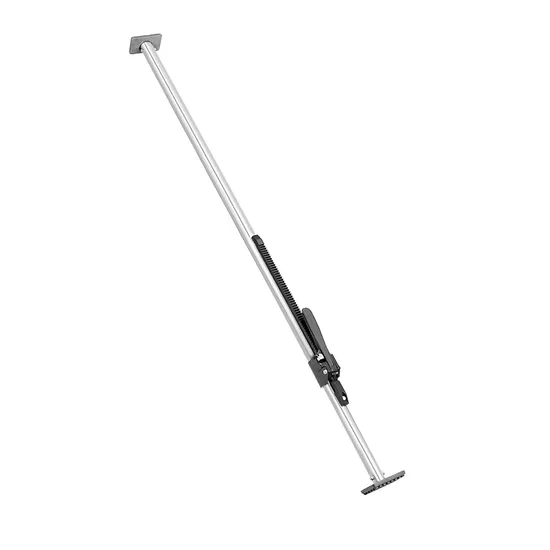

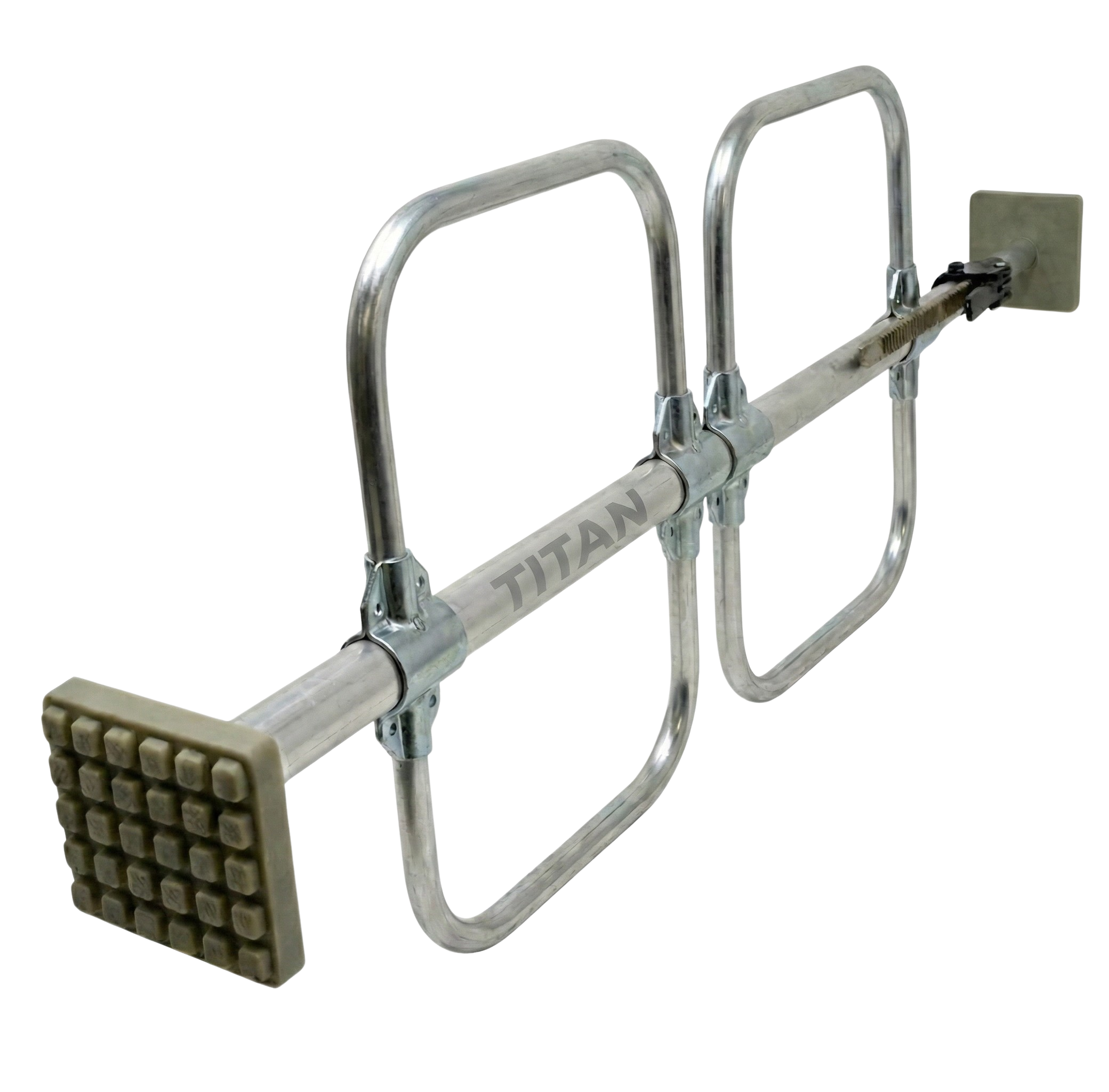

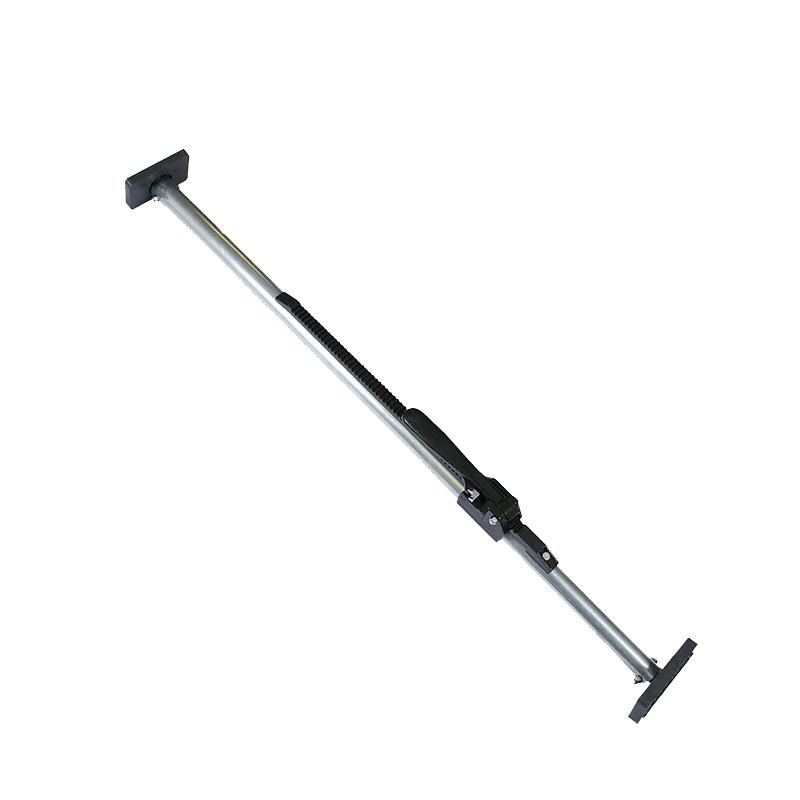

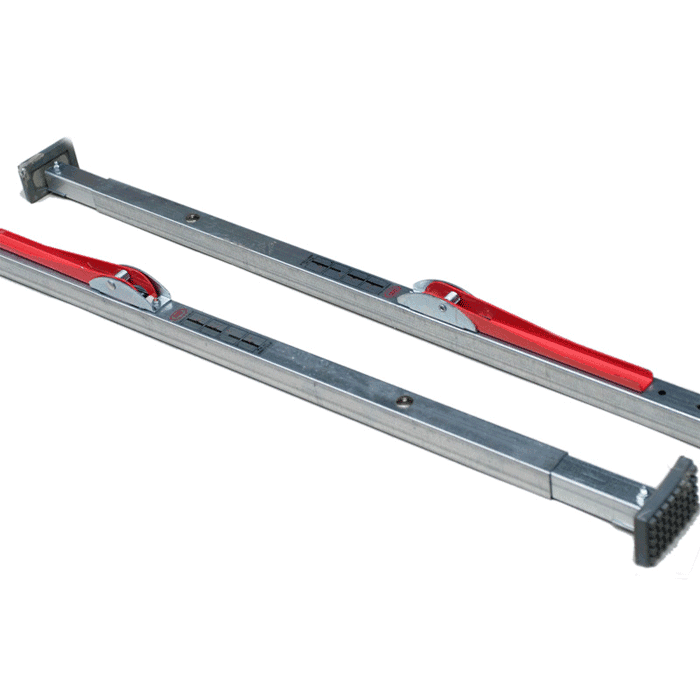

This Cargo Load Bar is a high-strength, adjustable telescopic bracing device designed to secure palletized, bulk, or irregular freight inside intermodal containers and dry vans. Its primary industrial use is preventing transverse and longitudinal load movement, which causes damage, container distortion, and worker injury. The key value proposition is replacing one-time-use dunnage with a reusable, ratcheted steel bar that delivers consistent clamp force without power tools. Strategically, it reduces packaging waste, lowers damage-related logistics spend, and aligns with global supply chain safety standards (e.g., CTU Code, IMO).

2. Key Specifications & Technical Characteristics

• Material composition: High-grade Q235 or equivalent structural steel tube (outer) and galvanized carbon steel inner slide, with zinc-plated ratchet mechanism and rubberized pressure pads.

• Protective finish: Electrostatic powder-coated (corrosion resistance ≥500 hrs salt spray) or heavy-duty galvanized.

• Physical characteristics:

  • Telescopic length range: 72″ – 96″ (standard container fit; custom lengths available)

  • Bearing pad width: 4″ × 6″ with anti-slip EPDM rubber face

  • Weight: ~12–16 lbs per unit

• Load rating: Rated working load limit (WLL) 4,000 lbs static; breaking strength ≥12,000 lbs

• Packaging options: Individual polybag with barcode label; bulk pack (25 units per carton); export-wrapped pallets

• Shelf life: Indefinite (no degradation of metal or ratchet under normal storage conditions; rubber pads 5+ years)

3. Core Industrial Applications

• Primary industries: Third-party logistics (3PL), freight forwarding, automotive parts shipping, consumer goods distribution, machinery export, and warehouse-in-transit operations.

• Specific use cases:

  • Bracing partial pallet loads to container sidewalls

  • Securing spooled goods (cables, hoses) against rolling

  • Creating vertical separation in mixed cargo

• Performance advantage over alternatives:

  • vs. Wood: No splintering, no disposal cost, reusable for 200+ cycles

  • vs. Inflatable bags: No puncture risk, no air compressor required, immediate load release

  • vs. Twisted wire/polybinding: Provides rigid compression, not just tension

• Efficiency gain: Reduces load securement time by ~70% per container (one worker, under 2 minutes)

4. Competitive Advantages

• Quality consistency: Batch-tested ratchet torque (verified ±5% variance); 100% weld inspection.

• Supply reliability: Stocking locations in Asia, EU, and US with 99% on-time dispatch record.

• Logistics capability: Mixable with other cargo control products (straps, edge protectors) for consolidated shipments.

• Price competitiveness: 15–20% below equivalent European/US-made bars, with identical or better cycle life.

• Sustainability: 100% steel recyclability; eliminates 50+ kg of wood waste per container per trip.

• Technical support: Free load calculation templates, video installation guides, and certification letter for CTU compliance audits.

5. Commercial & Supply Information

• Minimum order quantity (MOQ): 200 units (mixed lengths allowed) for first order; 400 units for repeat orders.

• BULK 20MT loading capacity: Approximately 1,600–1,800 units per 20′ container (depending on length and packaging).

• MT per container: 20 metric tons net (full container load, palletized or bulk-stacked).
