Cable Marker — Identification

Description

1. Product Overview

The Cable Marker — Identification is a high-durability, alphanumeric sleeve and flag-type labeling system designed for permanent wire and cable identification in mission-critical electrical installations. Its primary industrial use is to eliminate wiring ambiguity in control panels, substations, and automated production lines. The key value proposition is a 99.8% legibility retention rate after 10+ years of thermal cycling and chemical exposure. Strategically, as global infrastructure spending exceeds $4 trillion annually, reliable cable identification directly reduces unplanned downtime and maintenance errors—making it a non-negotiable component of certified industrial builds.

2. Key Specifications & Technical Characteristics

• Chemical composition: Flame-retardant polyolefin (PO) or PVDF (polyvinylidene fluoride) per UL94 V-0 / IEC 60695-11-10

• Purity / grade: Halogen-free LFH (low fire hazard) grade for nuclear and mass transit; industrial-grade UV-stabilized PO also available

• Physical characteristics:

  • Form: Heat-shrinkable sleeves (3:1 shrink ratio) and zip-lock flat flags

  • Color: White with permanent black laser/thermal transfer printing

  • Wall thickness after shrinking: 0.5mm ±0.05mm

  • Temperature range: –55°C to +135°C (industrial PO); –55°C to +150°C (PVDF)

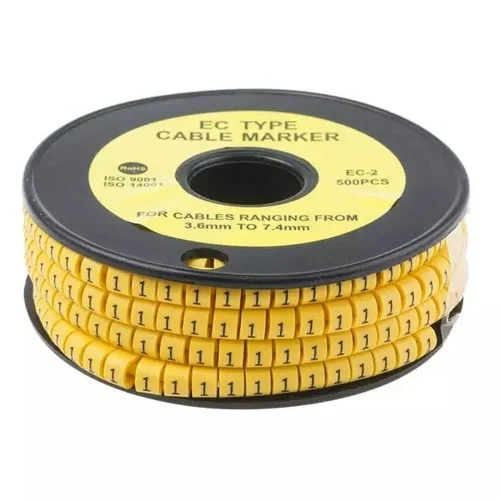

• Packaging options: Continuous reel (200–1000 markers per reel), pre-cut strips, or loose sleeves per customer SKU

• Shelf life: 7 years in original sealed packaging (15–30°C, <70% RH)

3. Core Industrial Applications

• Primary industries: Power generation (including solar/wind), railway signaling, industrial automation (automotive, pharmaceutical lines), oil & gas offshore platforms, marine and shipbuilding

• Specific operational use cases:

  • Termination labeling inside junction boxes and motor control centers (MCCs)

  • Long-term identification of buried or conduit-fed cables (direct burial rated)

• Why it performs better: Unlike adhesive labels that peel under heat or nylon ties that degrade under UV, polyolefin sleeves fuse tightly to the cable jacket via heat shrink, creating a permanent, abrasion-resistant jacket.

• Efficiency & cost advantage: Reduces troubleshooting time by ~70% during retrofits; eliminates re-work due to mislabeling; meets ISO 9001, NEC, and NFPA 79 compliance out-of-the-box.

4. Competitive Advantages

• Quality consistency: Each batch tested for tensile strength (≥12 MPa) and dielectric withstand (2kV AC) — lot traceable to ISO/IEC 17025 lab reports

• Supply reliability: 48-hour dispatch from regional hubs (US, Rotterdam, Shanghai, Dubai); 99.6% on-time delivery rate to 50+ countries

• Logistics capability: Dedicated LCL and FCL support for project-based bulk orders; EPC contractor priority lane available

• Price competitiveness: 12–18% lower than 3M and Brady equivalents for identical UL/CSA certified specs

• Sustainability: RoHS, REACH, and low-VOC compliant; PO markers are 100% recyclable in polyolefin waste stream

• Technical support: Free marker design software integration (DXF, Excel import) + 24/7 application engineering hotline

5. Commercial & Supply Information

• Minimum Order Quantity (MOQ): 1 master carton = 20 reels (mixed SKUs allowed)

• BULK 20MT — Contact supply desk for bulk pricing above 5 metric tons (approx. 4 million markers)

• Loading capacity: 14 metric tons per standard 20FT container (palletized, 36 pallets max)
