Breathing Air Cylinder — Safety systems

Description

1. Product Overview
The Breathing Air Cylinder — Safety Systems is a high-pressure composite or steel cylinder engineered to store and deliver Grade D or higher breathable air for critical life-support applications. Primarily used in industrial confined spaces, firefighting, and hazardous environment operations, this cylinder ensures immediate, reliable respiratory protection where ambient air is compromised. Its strategic market importance lies in mitigating workplace fatality risks and ensuring regulatory compliance (OSHA, NIOSH, EU EN), making it a non-negotiable asset for enterprise safety programs.

2. Key Specifications & Technical Characteristics

• Material Components: Fully-wrapped carbon-fiber composite (Type 3 / Type 4) or high-strength chrome-molybdenum steel alloy; DOT/UN-approved thermoplastic liner (Type 4 optional).

• Purity / Gas Grade: Suitable for Grade D breathing air (O₂ 19.5–23.5%, max 10 ppm CO, max 1000 ppm total hydrocarbons); customer fills to ISO 8573-1 Class 0.

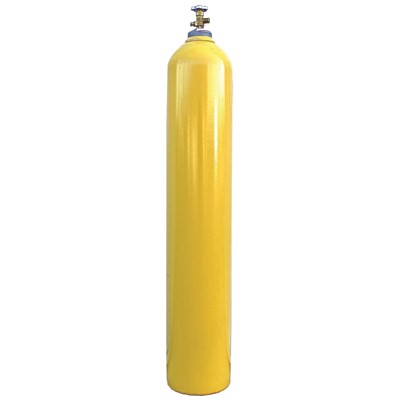

• Physical Characteristics: Cylindrical form; external diameter 140–204 mm; height 450–650 mm; dry weight (composite: 3.5–6.2 kg; steel: 7.5–14 kg); color: safety yellow or high-visibility orange with reflective banding.

• Packaging Options: Individually shrink-wrapped with valve protector; master cartons of 4 units; wooden palletized crates for bulk shipments.

• Shelf Life: Composite: 15 years from manufacture date (recertification every 5 years by hydrostatic test); steel: 30-year service life.

3. Core Industrial Applications

• Primary industries: Oil & gas refineries, chemical plants, mining, fire & rescue services, municipal utilities, pharmaceutical cleanrooms.

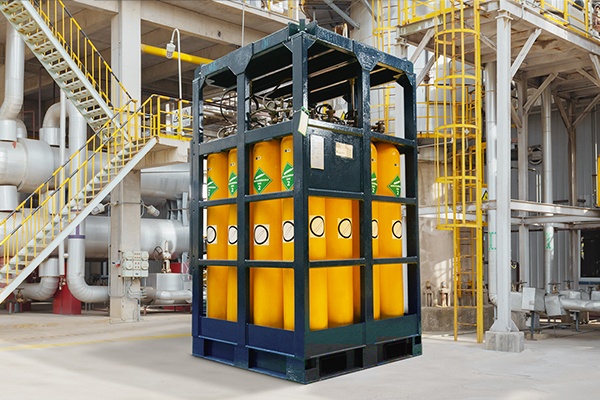

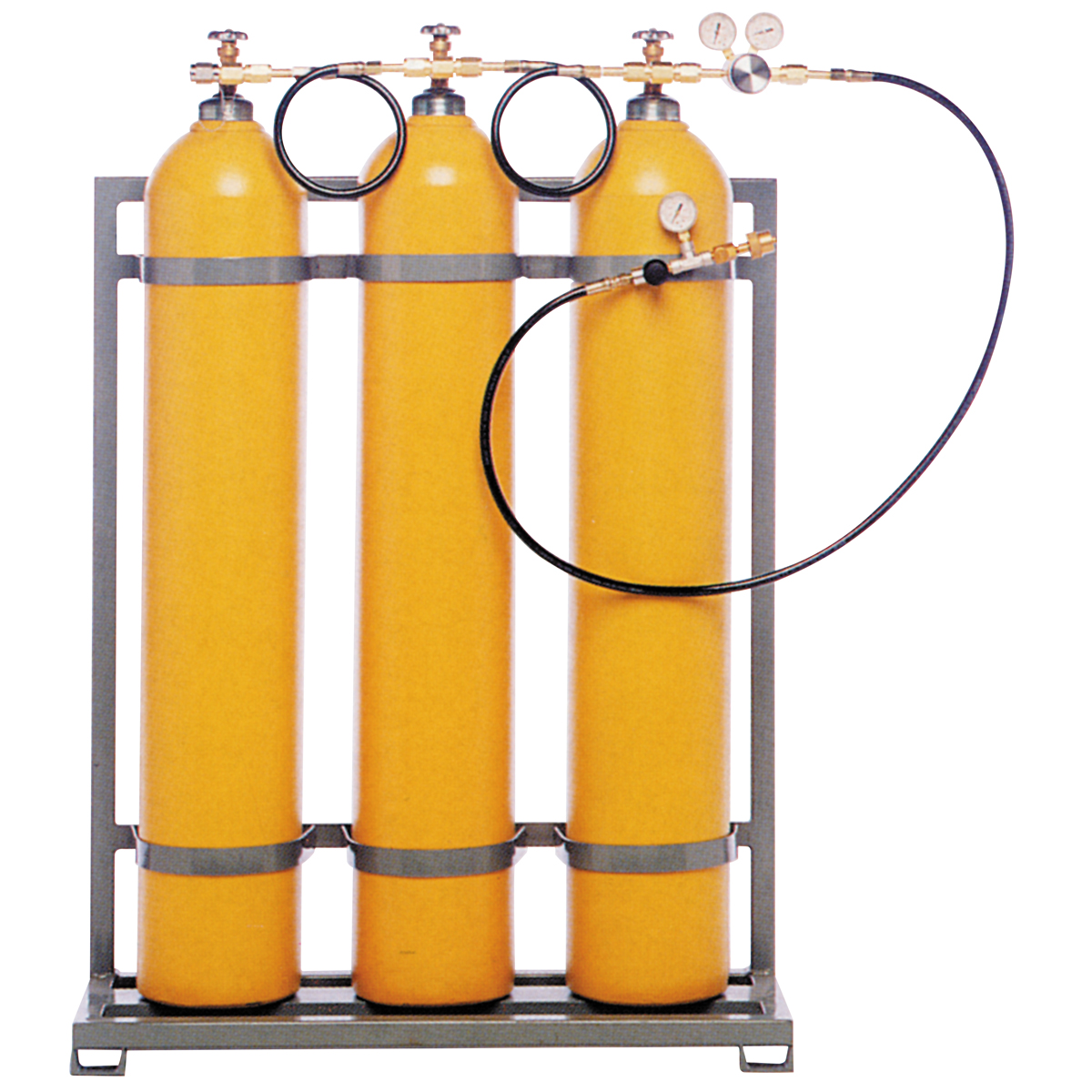

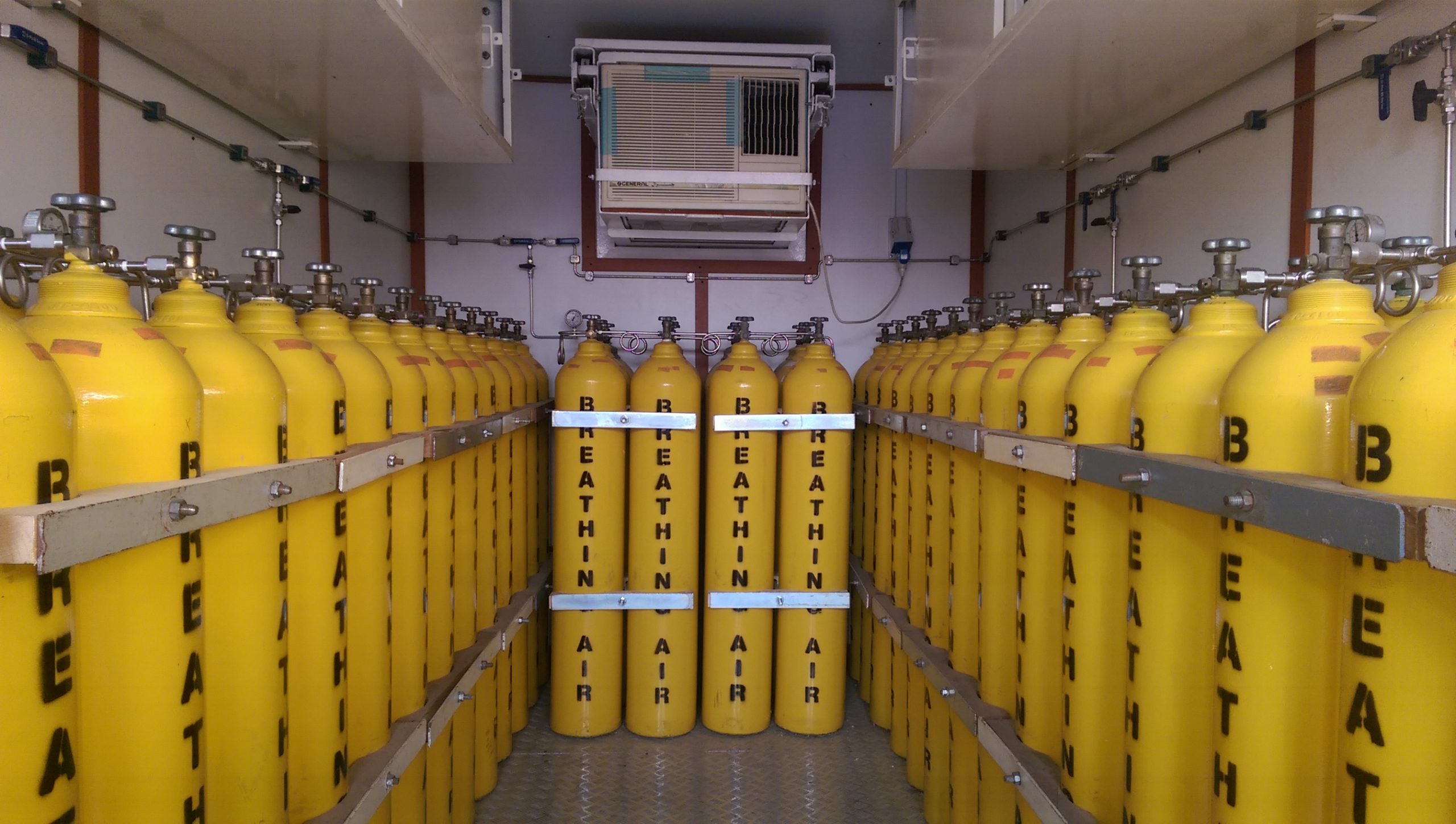

• Operational use cases: Supplied-air respirator (SAR) systems for tank cleaning; emergency egress during H₂S or CO leak events; cascade filling stations for crew SCBA.

• Performance vs. alternatives: Composite cylinders offer 40% lower weight than steel, reducing user fatigue and improving maneuverability in confined spaces. Higher burst pressure (up to 450 bar vs. 200 bar for traditional steel) extends operational duration by 25–35% per fill. Lower thermal conductivity prevents valve freeze in sub-zero response.

• Efficiency advantage: Rapid fill/discharge rates (400+ L/min) minimize downtime in high-turnout situations.

4. Competitive Advantages

• Quality consistency: 100% factory hydrostatic and ultrasonic tested; batch traceability to heat number and winding date; ISO 9001:2024 and ASME Section VIII certified.

• Supply reliability: Dual-source manufacturing (EU and Asia facilities) with 99.5% on-time delivery; buffer stock program for Fortune 500 safety contracts.

• Logistics capability: Direct-to-warehouse drop-ship via air or ocean; real-time RFID tracking per cylinder.

• Price competitiveness: 12–18% lower total cost of ownership than leading European brands due to optimized carbon-fiber sourcing and automated winding.

• Sustainability: Type 4 cylinders are 100% recyclable via certified third parties; steel units contain 70% recycled content.

• Technical support: 24/7 engineering access; free hydrostatic test reminder system; digital certificate management portal.

5. Commercial & Supply Information

• Minimum Order Quantity (MOQ): BULK 20MT (approx. 1,150–1,400 units depending on cylinder size/type).

• Loading capacity (MT per container):

  • 20ft dry container: 20 MT net (100% utilization, no overfill).

  • 40ft high-cube: 26 MT max (pallets double-stacked, strap-secured).
