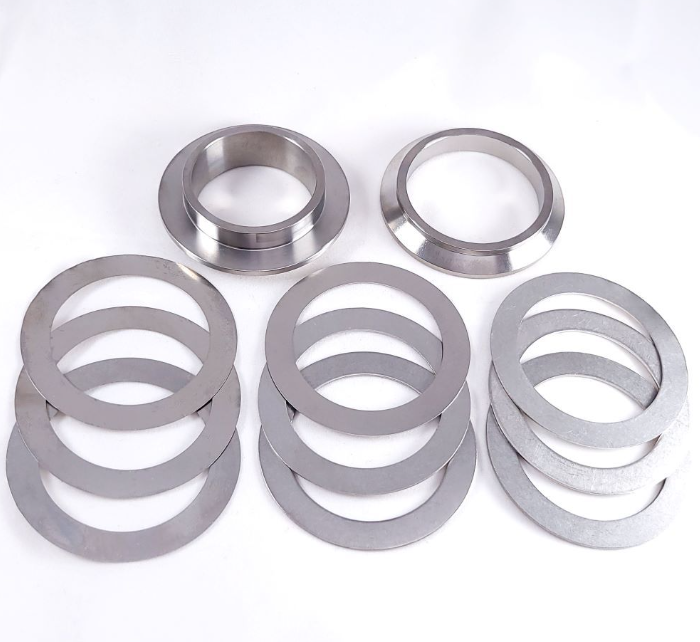

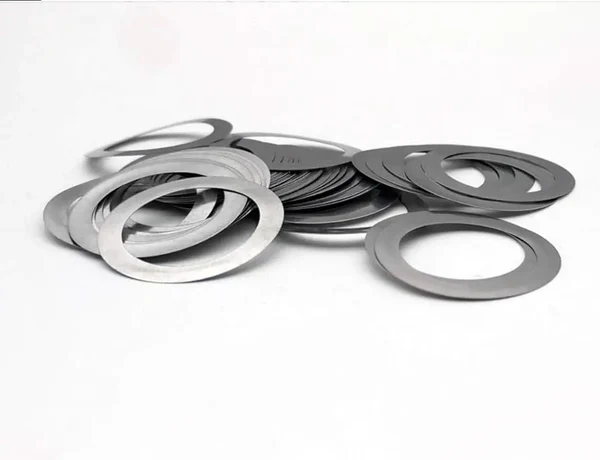

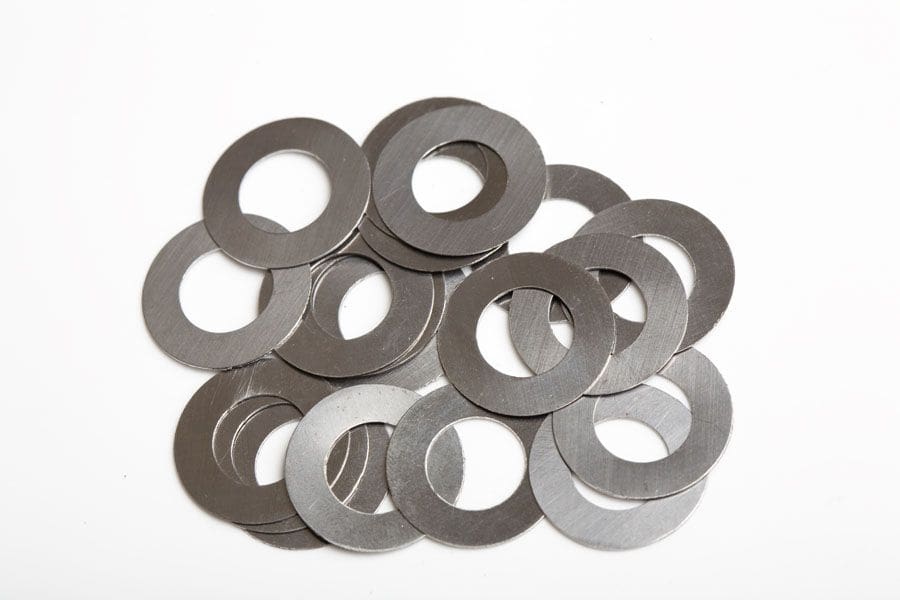

Bearing shims (precision spacing foils)

Description

1. Product Overview

Bearing shims (precision spacing foils) are ultra-thin engineered components designed to provide accurate alignment, spacing, preload adjustment, and dimensional compensation in bearing assemblies and mechanical systems. Manufactured from high-quality metallic materials, they enable precise control of tolerances, reduce vibration, and extend equipment service life in demanding industrial environments. Their ability to deliver consistent dimensional accuracy makes them essential for high-performance machinery, automotive systems, aerospace equipment, and industrial power transmission applications. As industries increasingly demand reliability and reduced maintenance downtime, precision bearing shims remain a critical component for efficient mechanical assembly and long-term operational performance.

2. Key Specifications & Technical Characteristics

• Material Composition: Stainless steel, carbon steel, brass, bronze, copper, spring steel, and other precision alloy materials available according to application requirements
• Material Grade: Industrial-grade materials compliant with international standards such as ASTM, DIN, ISO, and OEM specifications
• Thickness Range: Typically available from ultra-thin foil grades (0.01 mm) to customized thicknesses depending on engineering requirements
• Dimensional Accuracy: High-precision manufacturing with tight thickness tolerances for accurate bearing positioning and load distribution
• Physical Form: Flat circular, rectangular, ring-shaped, or customized shim designs; smooth surface finish with precise inner and outer dimensions
• Color/Surface Treatment: Metallic finish; optional coatings including anti-corrosion plating, passivation, or surface treatments
• Density: Dependent on material selection (e.g., stainless steel approximately 7.9 g/cm³, brass approximately 8.4 g/cm³)
• Manufacturing Process: Precision stamping, laser cutting, etching, or CNC machining for high dimensional consistency
• Packaging Options: Bulk cartons, protective plastic packaging, moisture-resistant wrapping, or customized industrial packaging
• Shelf Life: Long service storage life when properly packaged and protected from corrosion, humidity, and contamination

3. Core Industrial Applications

• Automotive Manufacturing: Used in transmissions, wheel bearings, engines, and drivetrain assemblies to maintain precise component alignment and reduce mechanical wear.
• Aerospace & Defense Equipment: Applied in high-precision assemblies requiring strict tolerance control, reliability, and lightweight performance.
• Industrial Machinery: Used in pumps, compressors, motors, gearboxes, and rotating equipment to optimize bearing positioning and operational stability.
• Robotics & Automation Systems: Supports accurate motion control by maintaining precise spacing and reducing backlash in mechanical assemblies.
• Energy & Heavy Equipment: Utilized in turbines, mining machinery, and power-generation systems where durability and dimensional accuracy are critical.

Bearing shims provide superior performance compared with improvised spacing solutions by delivering repeatable thickness control, improved load distribution, reduced vibration, and minimized equipment downtime. Their precision manufacturing enables faster assembly, easier maintenance, and improved overall equipment efficiency.

4. Competitive Advantages

• High Dimensional Consistency: Precision manufacturing ensures reliable fitment, accurate spacing, and stable mechanical performance across large production volumes.
• Superior Material Quality: Available in corrosion-resistant and high-strength alloys suitable for demanding industrial environments.
• Reliable Supply Capability: Scalable production capacity supports OEM, aftermarket, and large-volume industrial procurement requirements.
• Global Logistics Support: Optimized packaging and export-ready supply solutions enable efficient international shipment and inventory management.
• Cost Competitiveness: High-volume manufacturing and material flexibility provide cost-effective solutions without compromising precision standards.
• Sustainability Benefits: Durable reusable metal components help extend equipment lifespan, reduce replacement frequency, and support resource-efficient operations.
• Technical Documentation Support: Available with material certificates, dimensional inspection reports, quality documentation, and OEM customization support.

5. Commercial & Supply Information

• Minimum Order Quantity (MOQ): BULK 20MT
• Loading Capacity: Approximately 20MT per 20-foot container (depending on shim dimensions, packaging method, and density)
