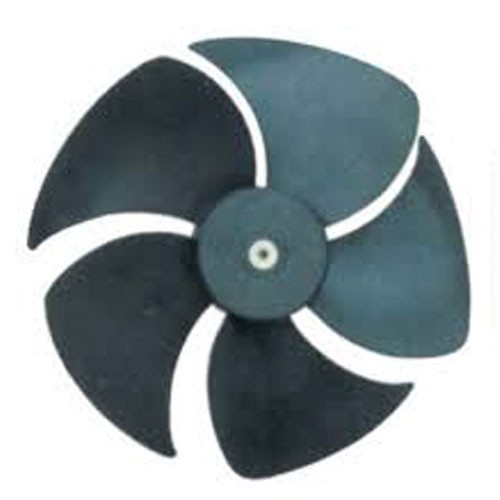

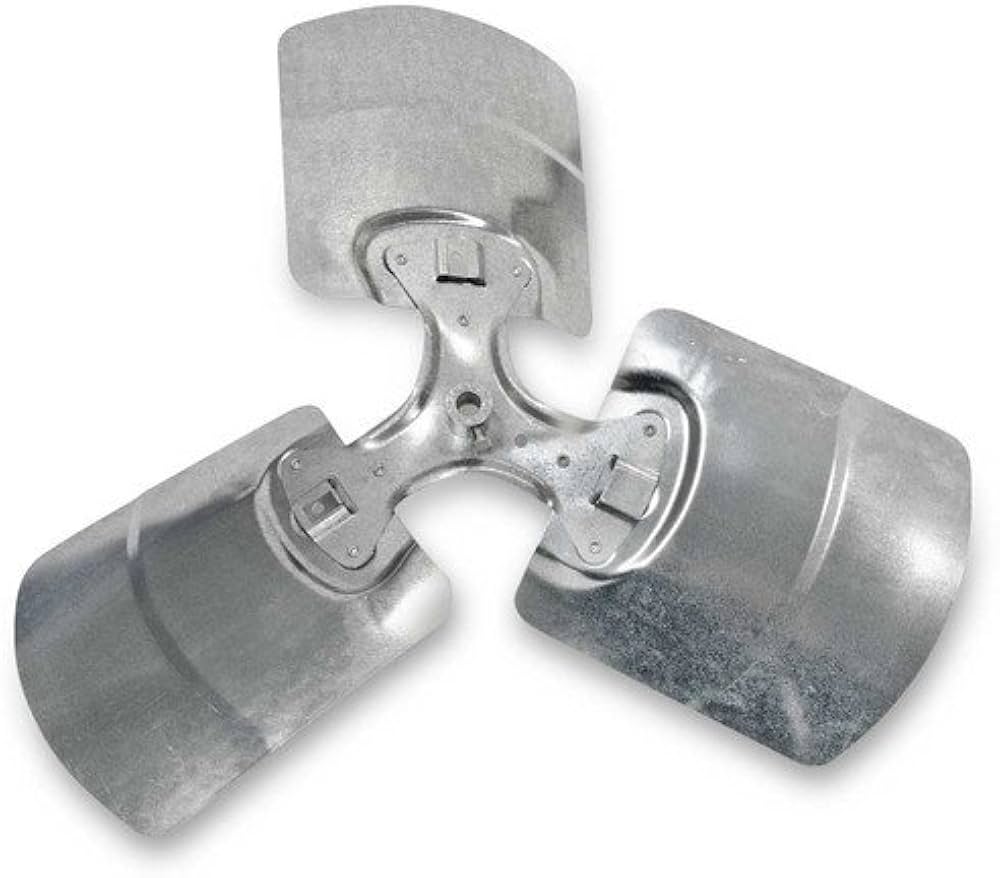

Axial Condenser Fan Blade AFB-018

Description

1. Product Overview

The Axial Condenser Fan Blade AFB-018 is a precision-engineered, high-performance replacement blade designed specifically for air-cooled condenser systems and industrial cooling applications. Manufactured from advanced engineering materials, this axial fan blade delivers superior aerodynamic efficiency, reduced noise emissions, and extended operational longevity in demanding thermal management environments. With its optimized airfoil geometry, the AFB-018 addresses the critical market need for energy-efficient cooling components that reduce total cost of ownership while maintaining reliable performance across variable operating conditions—making it a strategically essential procurement item for power generation, HVAC, and industrial processing sectors.

2. Key Specifications & Technical Characteristics

Material Composition

• Option A: High-strength glass-fiber reinforced composite (monolithic pultruded construction) — offering exceptional fatigue resistance and structural integrity

• Option B: Die-cast aluminum alloy (PAG-grade or ALU-grade) — supporting high-temperature environments up to 150°C

• Alternative: Advanced thermoplastic (Nylon 6, PAG, or PACAS) — providing anti-aging properties and customizable performance characteristics

Physical Characteristics

• Diameter Range: 305mm – 1,343mm (customizable to application requirements)

• Blade Count Options: 5, 7, 8, 9, 10, 12, 14, or 16 blades (configurable based on airflow and noise requirements)

• Blade Pitch Adjustment: 20° to 50° variable twist angle for optimized performance tuning

• Maximum Rotational Speed: Up to 2,900 RPM (dependent on diameter and material specification)

• Hub Diameter: 150mm – 350mm (accommodates multiple shaft configurations)

Performance Characteristics

• Operating Temperature Range: -40°C to +150°C (grade-dependent)

• Noise Reduction Capability: Up to 10 dB(A) reduction compared to standard molded blades

• Efficiency Gain: Enhanced lift characteristics with reduced drag and vortex formation

Packaging & Logistics

• Export-grade wooden crates or reinforced cartons with individual blade protection

• Standard packaging per 20FT/40FT container specifications available upon request

• Custom labeling and private branding supported for OEM orders

3. Core Industrial Applications

Primary Industries

• Power Generation: Air-cooled steam condensers (ACC) and cooling tower systems

• HVAC & Refrigeration: Air-cooled heat exchangers, evaporative condensers, and packaged cooling towers

• Industrial Processing: Cement plants, chemical processing facilities, and factory-assembled cooling systems

• Marine & Offshore: Engine room ventilation and radiator cooling applications

• Construction & Mining: Heavy equipment cooling for Cummins and other diesel engines

Operational Use Cases

• Replacement of worn or damaged blades in existing condenser fan assemblies

• Retrofit upgrades for improved energy efficiency and noise reduction

• OEM integration into new cooling system builds

• High-temperature environments requiring aluminum alloy blade solutions

Performance Advantage
The AFB-018 delivers measurable performance superiority through:

• Reduced Power Consumption: Lower aerodynamic turbulence translates to decreased energy draw for the same cooling capacity

• Extended Service Life: Advanced reinforcement configurations minimize fatigue failures commonly seen in blade shaft areas

• Operational Flexibility: Adjustable pitch angles allow precise performance matching to specific system requirements

• Noise Compliance: Engineered profiles meet stringent noise limitation regulations without sacrificing efficiency

4. Competitive Advantages

Quality Consistency

• Precision manufacturing with CNC machining and dynamic balancing ensures ±0.1mm tolerance compliance

• Rigorous quality control including wind tunnel validation and dimensional verification

• Batch-level documentation and full traceability available for audit purposes

Supply Reliability

• Vertically integrated production with in-house tooling and mold-making capabilities

• On-time delivery rates exceeding 95% across documented supplier networks

• Rapid response protocols with typical inquiry-to-quote within 3 hours

Cost Competitiveness

• Competitive per-unit pricing achieved through economies of scale and efficient material sourcing

• Volume discounts of 30–60% available for bulk orders (1,000+ units)

• Reduced total cost of ownership through improved energy efficiency and extended lifespan

Technical Support

• Comprehensive CAD modeling and airflow simulation data provided for integration planning

• Performance test reports including CFM, static pressure, noise (dB), and rotational balance data

• Engineering consultation for custom geometry, material selection, and motor compatibility

Sustainability

• Energy-efficient designs reduce operational CO₂ emissions

• Long-life materials minimize replacement frequency and waste generation

• Compliance with RoHS and REACH environmental standards available upon request

5. Commercial & Supply Information

Minimum Order Quantity (MOQ)

• Sample Orders: 1–5 units (for R&D validation and product testing)

• Standard Production: 100 units per SKU

• Bulk Orders: Volume tiers available for 1,000+ unit commitments

Bulk Container Loading Capacity

• 20FT Container: ~15–18 MT (dependent on blade diameter and packaging configuration)

• 40FT Container: ~20–25 MT (palletized and secured for international transit)

Order Lead Times

• Prototype/Sample: 7–15 days following CAD approval

• Mass Production: 15–30 days depending on order volume and material sourcing

• Custom Tooling (new molds): Additional 5–30 days

Payment Terms

• Standard: 30% deposit upon order confirmation, 70% balance upon shipment documentation

• Trade assurance and escrow protection available for international buyers
