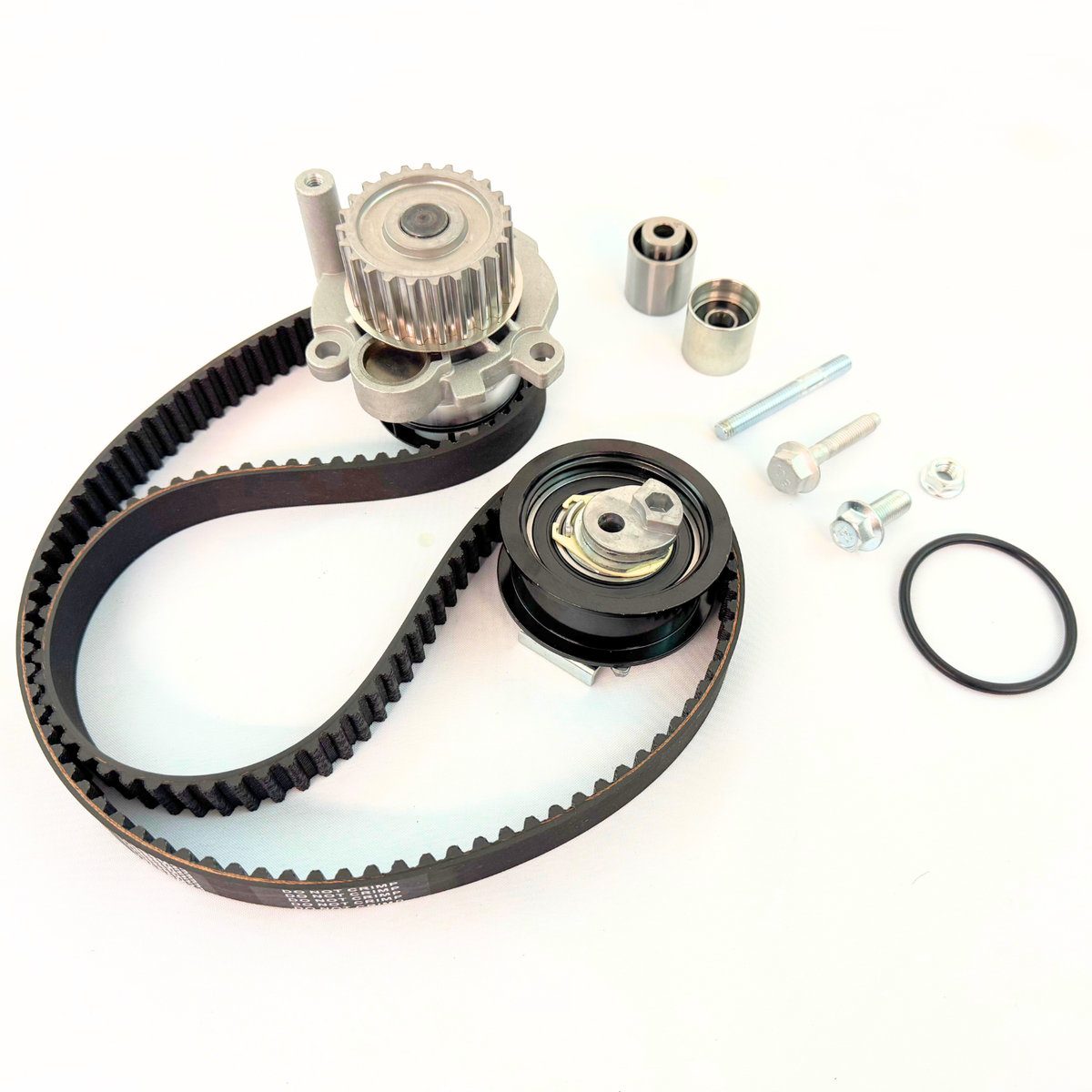

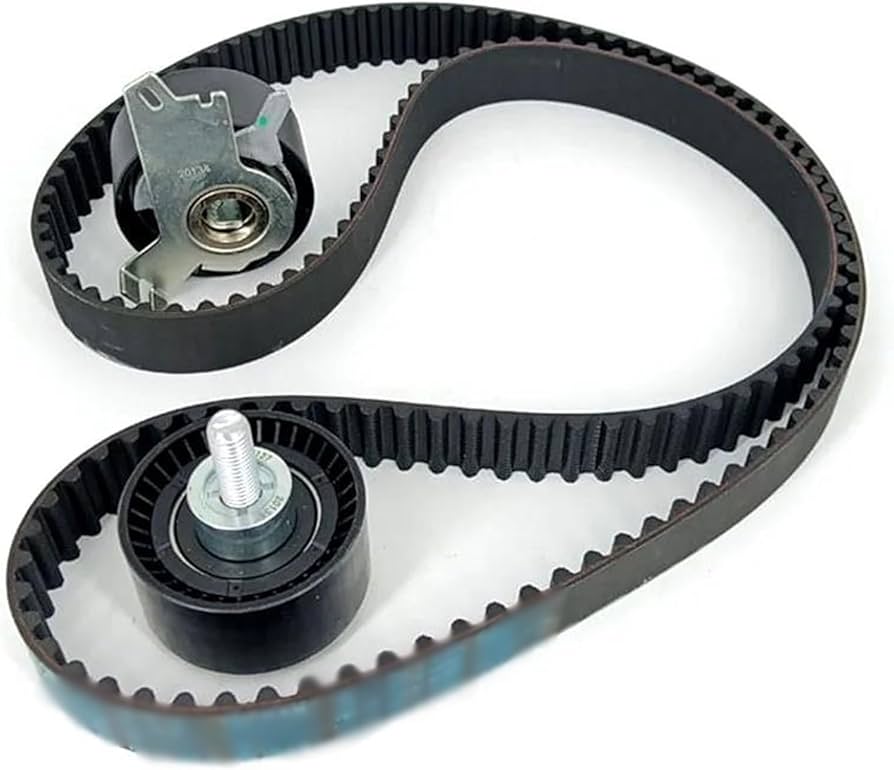

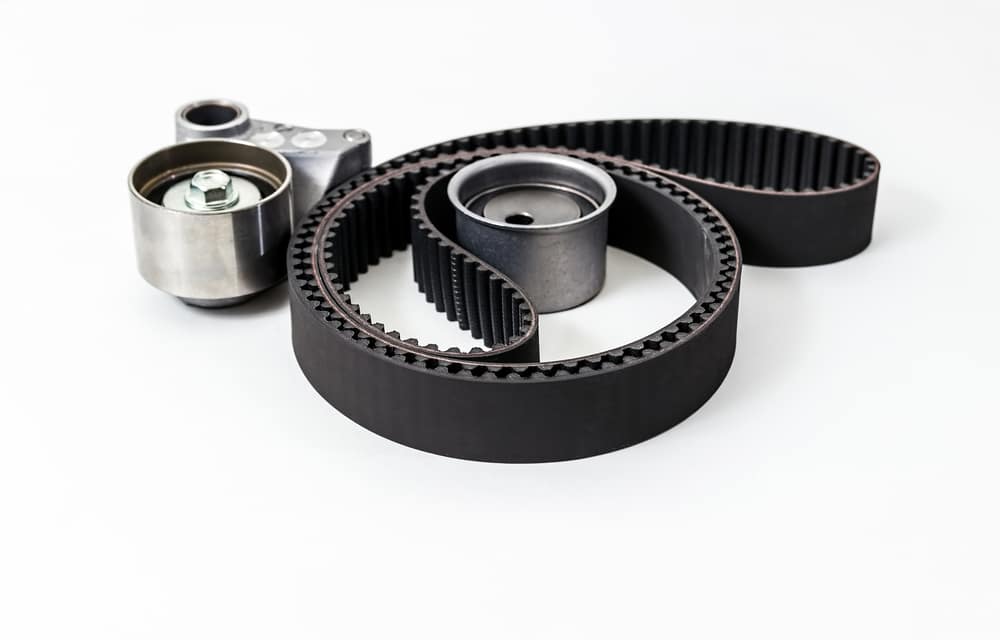

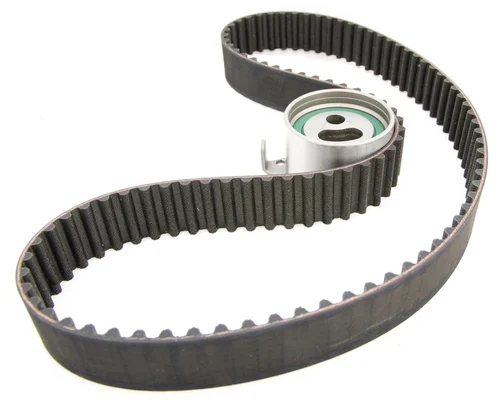

Automotive timing belts

Description

1. Product Overview
Automotive timing belts are precision-engineered synchronous drive belts designed to maintain critical crankshaft-camshaft synchronization in internal combustion engines. Their primary industrial use is in passenger car, commercial vehicle, and industrial engine valvetrain systems, ensuring optimal combustion timing and preventing catastrophic piston-valve interference. The key value proposition lies in delivering superior tensile strength, thermal stability, and wear resistance—reducing unplanned downtime and extending engine service intervals. Strategically, as global powertrain efficiency standards tighten, high-durability timing belts have become mission-critical for reducing total cost of ownership (TCO) in aftermarket and OEM supply chains.

2. Key Specifications & Technical Characteristics

• Chemical composition / material components: High-strength HNBR (Hydrogenated Nitrile Butadiene Rubber) or CR (Chloroprene Rubber) compound; fiberglass or aramid cord tension members; abrasion-resistant nylon fabric facing on tooth surfaces

• Purity / grade grade: OEM-compliant Grade A (no recycled rubber in tension zone); ISO 9001:2015 and IATF 16949 certified batches

• Physical characteristics: Black molded elastomer; tooth profile: trapezoidal (HTD) or curvilinear (RPP, GT); pitch range: 3mm to 14mm; tensile modulus: ≥ 450 N/mm² per cord; hardness: 75–80 Shore A

• Density: ~1.25 g/cm³ (finished belt, excluding tension members)

• Packaging options: Anti-static, moisture-barrier poly bags; industrial-grade cartons (10–50 units per box); bulk spool packaging for high-volume integrators

• Shelf life: 5 years from date of manufacture when stored at 5°C–25°C, <60% RH, away from ozone and UV

3. Core Industrial Applications

• Primary industries: Automotive OEM assembly; commercial fleet maintenance; industrial engine manufacturing (generators, compressors, agricultural machinery); aftermarket distribution

• Specific operational use cases: Overhead camshaft (OHC) engine timing systems; balance shaft drives; high-load oil pump drives; diesel injection pump synchronization

• Performance advantage: HNBR compound resists oil, heat (up to 150°C continuous), and low-temperature cracking down to -35°C—outlasting standard EPDM or CR belts by 40–60% in turbocharged environments

• Efficiency / durability: Aramid tensile cords eliminate elongation under cyclic loads; precision-molded teeth reduce slip-induced timing error to <0.1° crank angle, improving fuel efficiency by 1–2% and eliminating interference engine failure risk

4. Competitive Advantages

• Quality consistency: 100% high-voltage pin-hole tooth inspection; dynamic load testing per SAE J1995; batch traceability to raw rubber mill date

• Supply reliability: Three geographically redundant ISO 14001 manufacturing sites (Asia-Pacific, EMEA, Americas); 98% on-time-in-full (OTIF) rate over 18 rolling months

• Logistics capability: Cross-dock hubs in Rotterdam, Singapore, and Houston; 48-hour expedited dispatch for safety-stock replenishment

• Price competitiveness: Direct raw rubber procurement and in-house cord weaving reduce landed cost by 12–18% compared to tier-1 OE brands

• Sustainability: CR and HNBR belts contain no restricted substances per REACH and ELV Directive; fully recyclable packaging; carbon offset available via verified emissions credits

• Technical support: Free belt life modeling; on-site failure analysis; CAD tooth geometry files for custom designs; ISO 17025 test reports upon request

5. Commercial & Supply Information

• Minimum order quantity (MOQ): 500 units per SKU (mix-and-match across max 5 part numbers)

• BULK 20MT: One full 20MT mixed-SKU order (approximately 35,000–45,000 belts depending on size distribution)

• Loading capacity per 20-ft container (20MT): 20 metric tons net (28–32 pallets, 800–1,200 cartons) → final count: 20 MT
