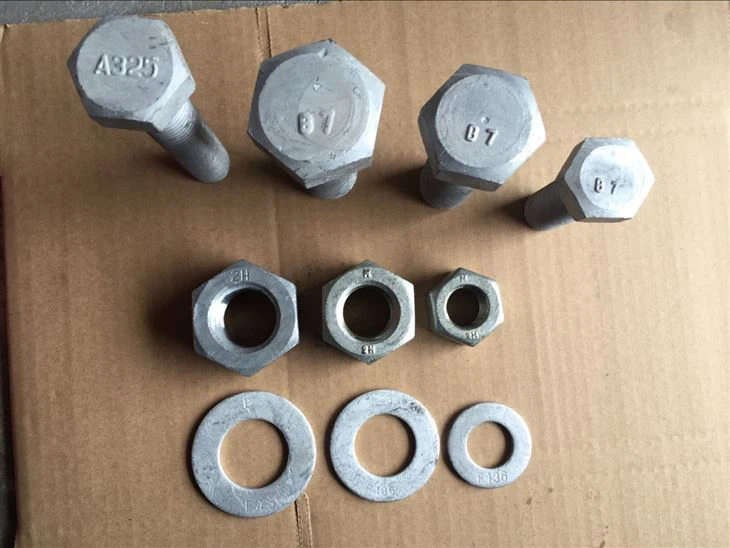

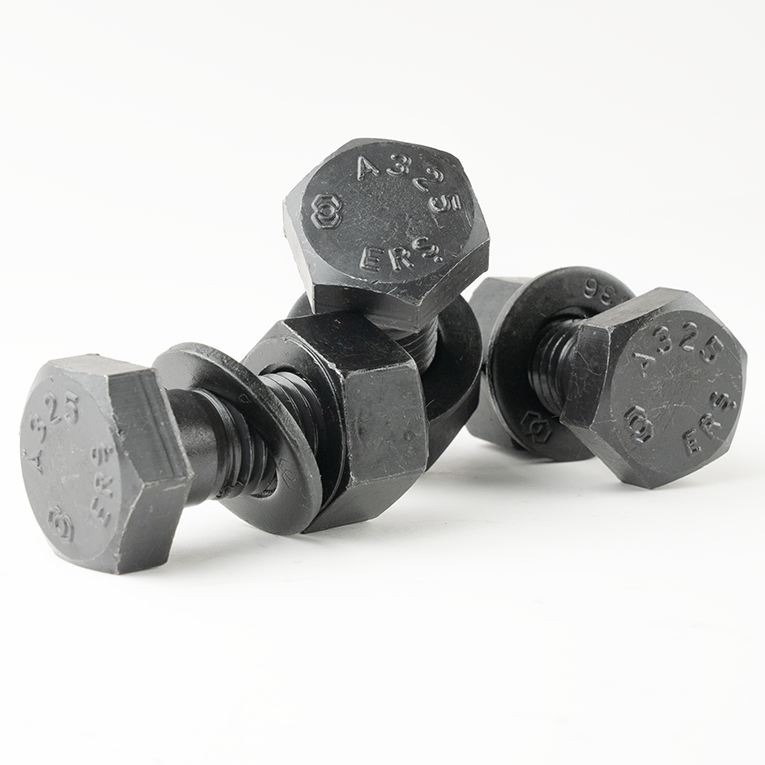

ASTM F3125 A325 structural bolt

Description

1. Product Overview

ASTM F3125 A325 structural bolt is a high-strength, heavy hex structural fastener manufactured to ASTM F3125 standards (Grade A325). Designed for critical structural connections in steel construction, bridgeworks and heavy civil infrastructure, it delivers proven tensile and shear performance for bolted joints subject to dynamic and static loads. Its key value proposition is a certified combination of high yield strength, dimensional precision and traceable material conformity that minimizes joint failure risk and simplifies compliance with engineering specifications. For procurement teams, A325 bolts are a strategic component that reduces rework, supports predictable life‑cycle costs and ensures code-compliant structural integrity.

2. Key Specifications & Technical Characteristics

• Standard: ASTM F3125 (Grade A325) — replaces former ASTM A325 specification.

• Material / Chemical composition: Medium carbon alloy steel, typically quenched and tempered; chemistry conforms to ASTM F3125/A325 requirements (controlled C, Mn, P, S, Si, with alloying elements as specified).

• Mechanical properties: Minimum tensile strength and yield meet Grade A325 requirements (manufacturer test certificates provided with batches).

• Coating / Finish options: Plain (uncoated), hot-dip galvanized to ASTM F3125/F3125M or ASTM A153 equivalent, electro-galvanized with passivation, and other protective coatings on request.

• Thread form: UNC/UNE F standard coarse threads per ASTM dimensional tolerances.

• Head style: Heavy hex head for structural bolting.

• Dimensions / Size range: Standard structural bolt diameters commonly available (e.g., 1/2″ to 1-1/2″ or 12 mm to 36 mm), lengths per order to suit connection design.

• Tolerances: Manufactured to ASTM dimensional and geometric tolerances for repeatable fit-up.

• Hardness: Controlled hardness to meet A325 mechanical property range.

• Packaging: Bulk palletized crates, steel-bound wooden cases, or bulk loose on pallets; protective packing to prevent corrosion in transit.

• Traceability: Heat number and batch traceability; material test reports (MTRs) supplied per shipment.

• Shelf life: Indefinite when stored dry; recommended storage under cover to prevent corrosion.

• Quality assurance: Mill inspection and third-party testing available on request; supplied with conformity certificates.

3. Core Industrial Applications

• Primary industries: Structural steel fabrication, bridge construction, heavy civil engineering, petrochemical platforms, wind-turbine towers, offshore structures, and large industrial buildings.

• Specific operational use cases: Main and shear connections in bolted steel joints, moment-resisting connections, splice plates, girder-to-column joints, and heavy equipment anchoring where high clamp force and fatigue resistance are required.

• Performance advantages over alternatives: Compared with lower-grade bolts, A325 bolts provide higher yield/tensile strength and better fatigue performance, enabling smaller fastener counts or reduced bolt diameters for the same structural capacity. When hot-dip galvanized, they combine structural strength with long-term corrosion protection superior to plain carbon fasteners.

• Commercial relevance: Using ASTM F3125 A325 bolts reduces engineering contingency, simplifies inspection acceptance by authorities, and lowers total installed cost through reduced downtime and maintenance frequency.

4. Competitive Advantages

• Quality consistency: Manufactured to ASTM F3125 tolerances with batch-level MTRs and optional third-party certification to ensure consistent mechanical and chemical properties.

• Supply reliability: Established production and inventory allocation for bulk orders; structured lead-times and priority scheduling for repeat enterprise buyers.

• Logistics capability: Bulk packing and container-optimised loading with coordinated export documentation; options for consolidated shipments, container stuffing up to specified loading capacities, and local distribution in target regions.

• Price competitiveness: Economies of scale for bulk 20 MT orders; competitive tiered pricing for multi-shipment contracts and frame agreements.

• Sustainability: Material sourcing and manufacturing practices aligned with industry environmental standards; options for reduced-packaging or recyclable packaging on request.

• Technical support: Engineering datasheets, dimensional drawings, torque and pretension guidance, and compliance documentation (MTRs, inspection reports) available to support procurement and site teams.

• Risk mitigation: Traceability and documentation reduce non-conformance risk and support regulatory and insurer requirements.

5. Commercial & Supply Information

• Minimum order quantity (MOQ): BULK 20 MT.

• Loading capacity (per standard 20ft container): Depending on bolt size and packaging, approximately 16–22 MT per 20ft container; typical conservative planning figure: 20 MT per container for bulk palletized packing (confirm with logistics for exact size/packaging).
