Anti-extrusion backup rings

Description

1. Product Overview

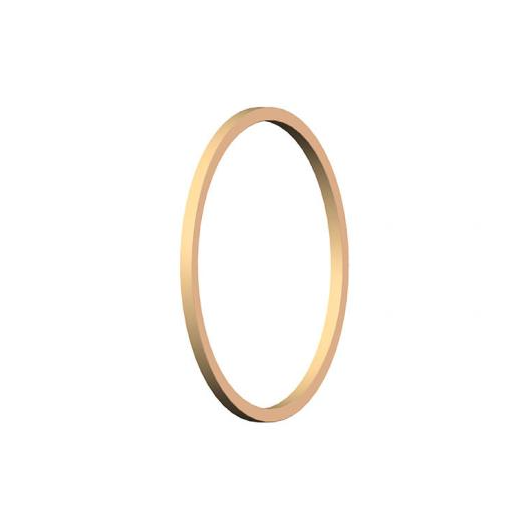

Anti-extrusion backup rings are precision-engineered sealing components installed alongside O-rings to prevent seal material from extruding into clearance gaps under high pressure, temperature, or dynamic operating conditions. They are widely used in hydraulic, pneumatic, oil & gas, chemical processing, and industrial equipment where reliable pressure containment is critical. Manufactured from durable engineering polymers such as PTFE, reinforced PTFE, PEEK, or other application-specific compounds, they extend seal service life and reduce premature failures. Their ability to improve sealing reliability makes them a strategically important component for demanding industrial sealing systems.

2. Key Specifications & Technical Characteristics

• Material Composition: PTFE, reinforced PTFE, PEEK, polyurethane, or other engineered thermoplastics according to operating requirements
• Material Grade: Industrial-grade; grades available for high-pressure, high-temperature, chemical, and wear-resistant applications

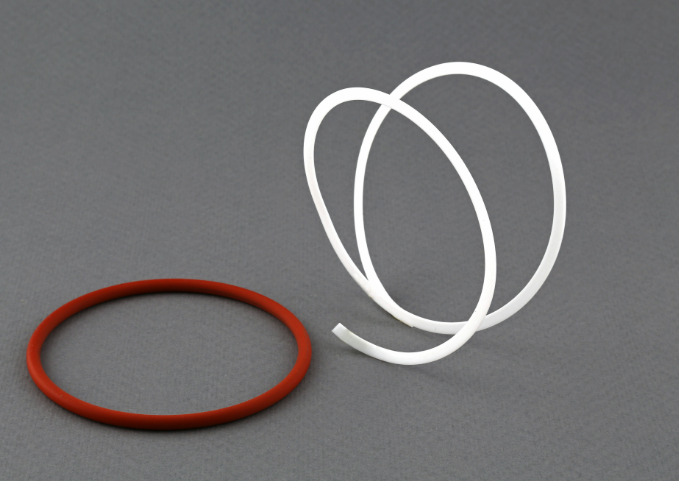

• Design: Solid or split backup ring configurations; custom profiles and dimensions available
• Physical Characteristics: Precision-machined rings with controlled dimensional tolerances; typically supplied in natural, black, brown, or application-specific colors
• Temperature Resistance: Application-dependent, with high-temperature grades available
• Pressure Resistance: Designed to support O-rings in high-pressure sealing environments and minimize extrusion risk
• Chemical Resistance: Available in compounds resistant to oils, fuels, hydraulic fluids, solvents, and aggressive process media
• Size Range: Standard AS568, ISO, metric, and customized dimensions available
• Packaging: Bulk cartons, sealed polyethylene bags, protective boxes, or customized industrial packaging
• Shelf Life: Long service-storage life when kept sealed in clean, dry conditions away from excessive heat, UV exposure, and contamination

3. Core Industrial Applications

• Oil & Gas: High-pressure valves, pumps, actuators, wellhead equipment, and drilling systems
• Hydraulic & Pneumatic Systems: Cylinders, hydraulic presses, control valves, and high-pressure actuators
• Chemical Processing: Pumps, reactors, valves, and equipment exposed to aggressive chemicals
• Industrial Machinery: Heavy-duty pumps, compressors, presses, and rotating or reciprocating equipment
• Automotive & Transportation: Hydraulic braking, steering, transmission, and fluid-control systems
• Energy & Power Generation: Turbines, hydraulic systems, pumps, and critical fluid-handling equipment
• Performance Advantage: Prevents O-ring extrusion, reduces seal damage, improves pressure capability, and extends maintenance intervals compared with unsupported elastomer seals
• Operational Benefit: Supports consistent sealing performance while reducing leakage, unplanned downtime, replacement frequency, and total maintenance costs

4. Competitive Advantages

• Quality Consistency: Precision manufacturing and controlled dimensional tolerances support dependable sealing performance across production batches.
• Supply Reliability: Suitable for recurring industrial procurement programs with standard and customized specifications.
• Logistics Capability: Export-ready packaging supports bulk shipment, containerized logistics, and international industrial supply chains.
• Price Competitiveness: Durable materials and extended seal service life provide favorable total cost of ownership beyond initial purchase price.
• Sustainability: Longer component and seal service life can reduce replacement frequency, material consumption, leakage-related losses, and maintenance waste.
• Technical Support & Documentation: Material specifications, dimensional drawings, technical datasheets, inspection documentation, and customized engineering support can be provided according to project requirements.
• Strategic Sourcing Value: A reliable backup-ring supply helps industrial buyers improve equipment uptime, standardize sealing assemblies, and mitigate costly pressure-related seal failures.

5. Commercial & Supply Information

• Minimum Order Quantity (MOQ): BULK 20 MT
• Loading Capacity: Approximately 20–25 MT per 20-foot container, subject to product dimensions, packaging configuration, and applicable container weight limits
