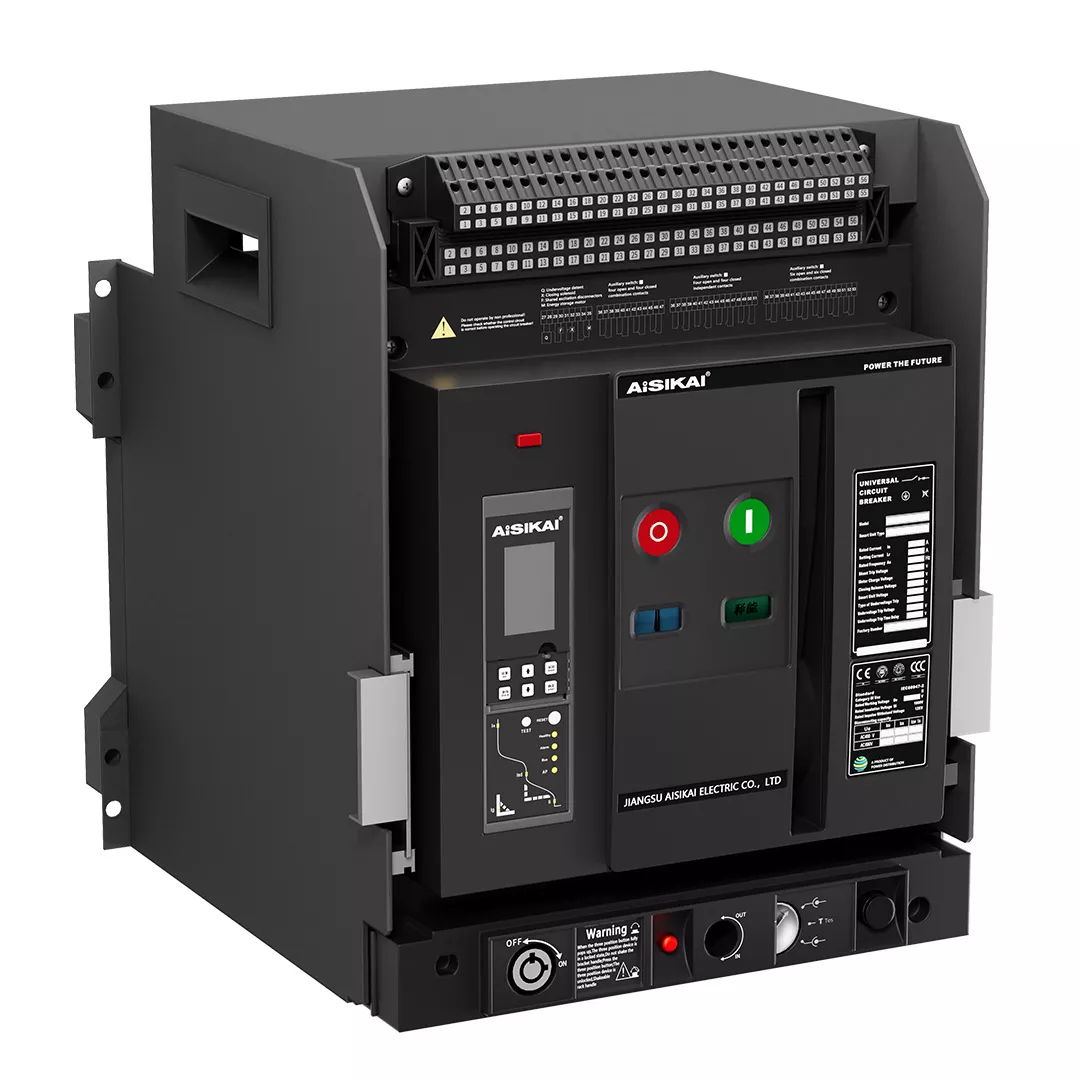

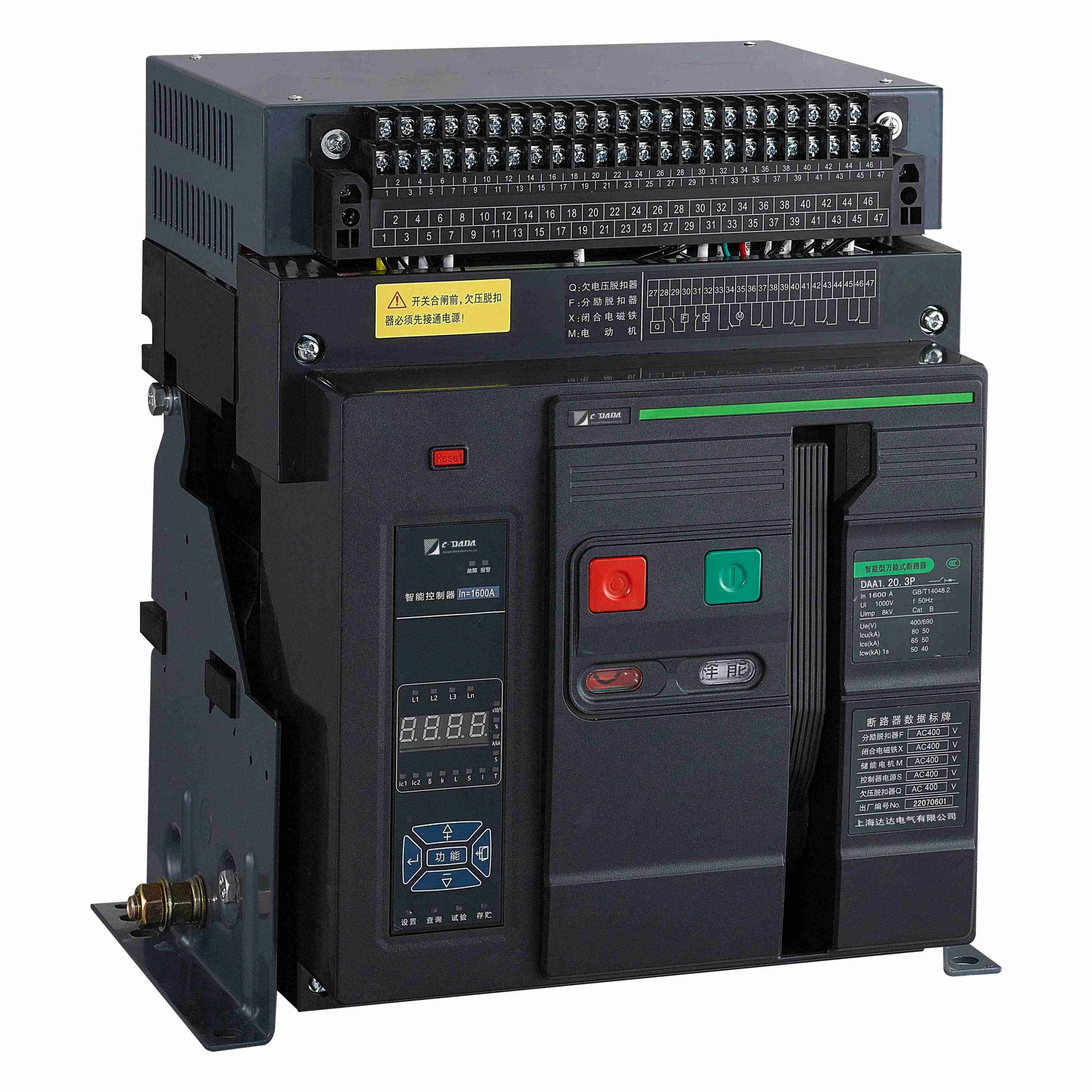

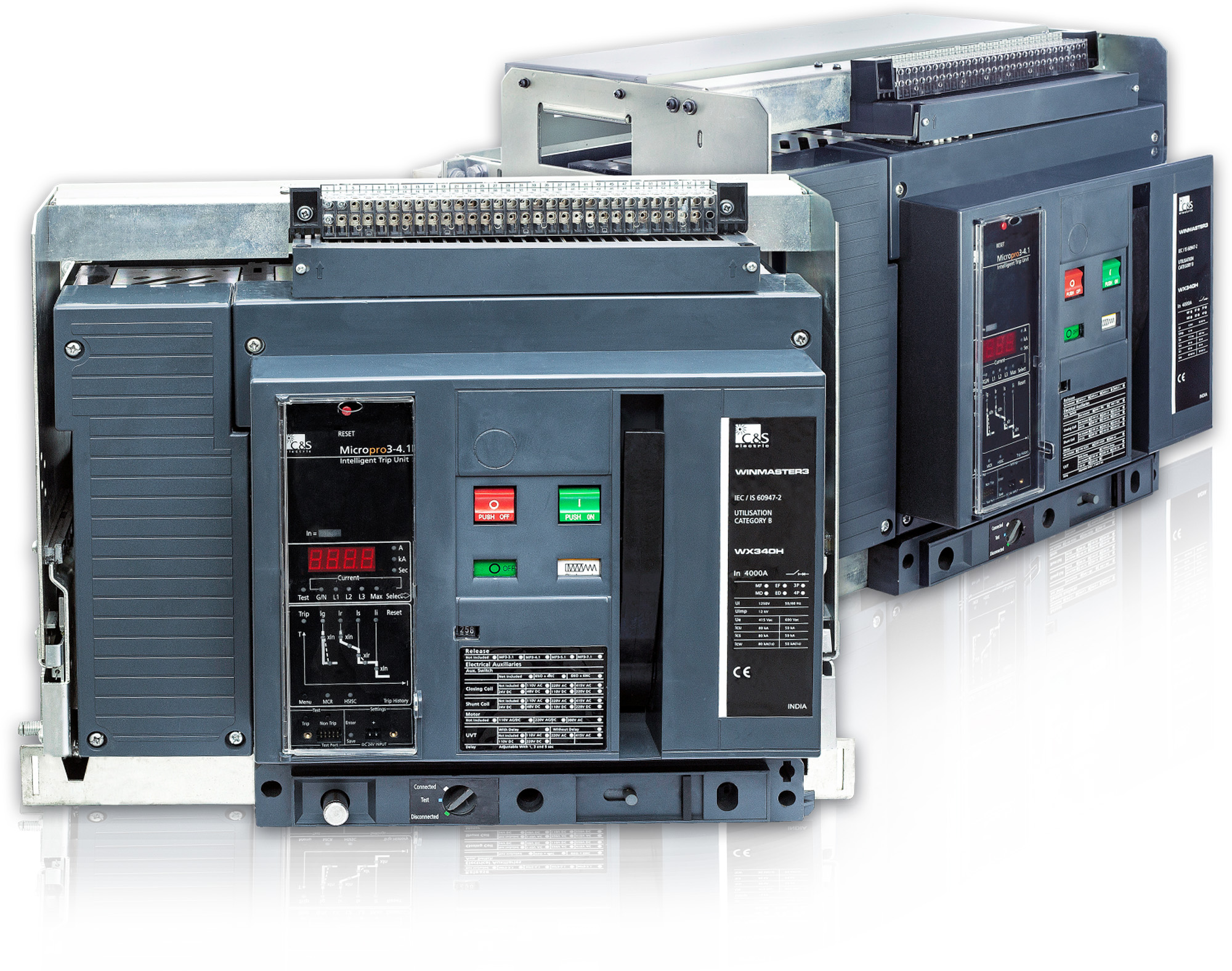

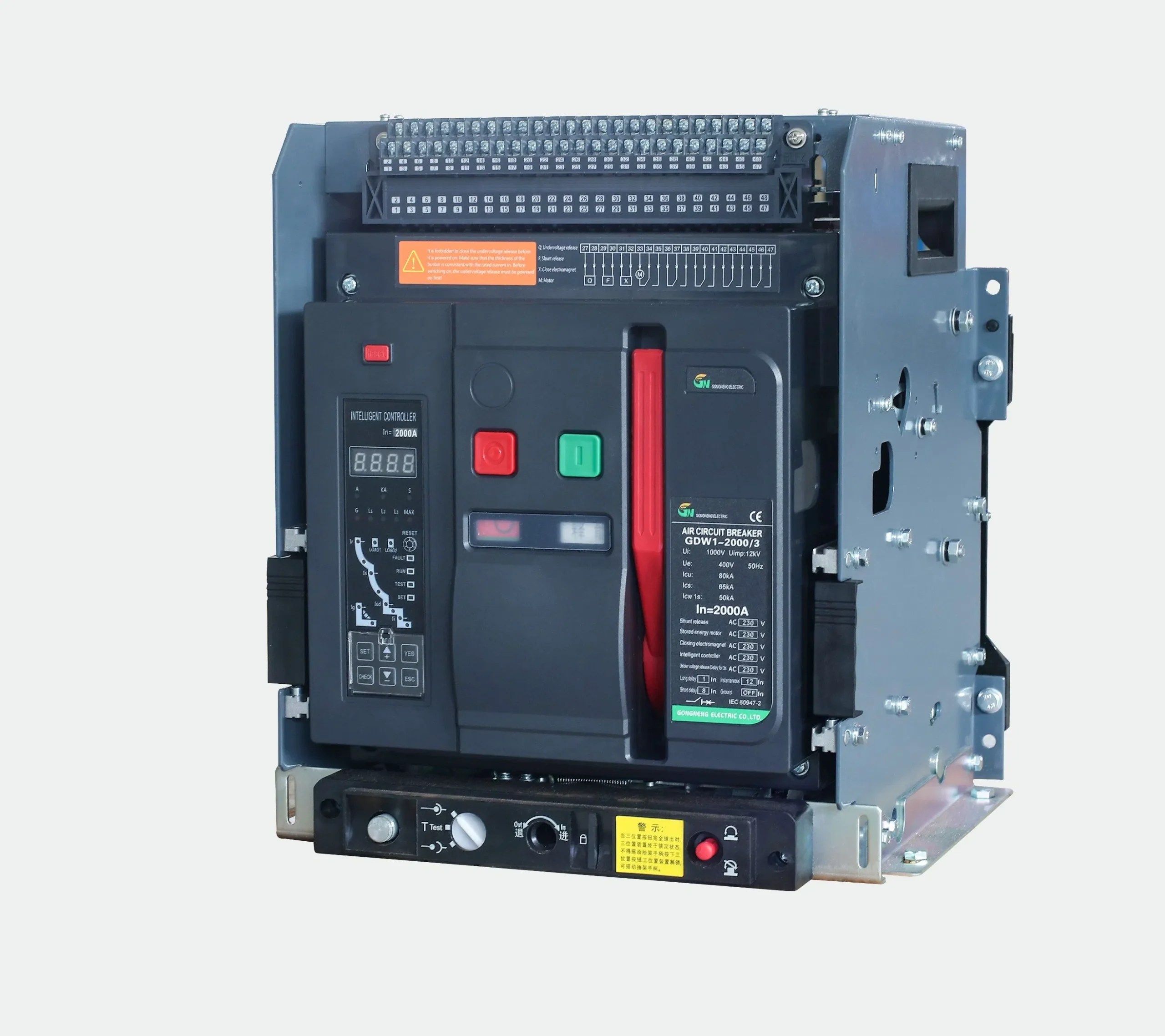

Air circuit breaker (ACB)

Description

Product Overview
Air circuit breaker (ACB) — heavy-duty, low-voltage power interruption and protection device engineered for industrial and commercial electrical distribution systems. The ACB provides reliable overcurrent, short-circuit, earth-fault, and overload protection for switchgear, busbars, and feeder circuits in factories, data centers, commercial complexes, and utility substations. Its key value proposition is high interrupting capacity combined with precise protection settings and modular, maintainable construction that minimizes downtime and total cost of ownership. Strategically, the ACB is critical for ensuring operational continuity, protecting capital electrical assets, and meeting safety and regulatory compliance in demanding industrial environments.

Key Specifications & Technical Characteristics

• Rated voltage: 690 V AC (standard); available up to 1000 V AC on request.

• Rated current range: 400 A to 6300 A (selectable racking and frame sizes).

• Breaking capacity (Icu/Ics): up to 150 kA @ 415 V (model-dependent); configurable to meet site short-circuit levels.

• Mechanical design: draw-out, modular frame with withdrawable interrupter units; metal-clad steel enclosure options.

• Interrupting medium: compressed air blast (design-optimized for low maintenance and fast arc quenching).

• Trip units: electronic microprocessor-based with adjustable protection curves (IEC/ANSI settings), optional communications (Modbus/Profibus/IEC 61850).

• Materials: copper/aluminum busbars, silver-plated contacts or contact alloys for high wear resistance, galvanized/painted steel enclosure, high-strength insulating plastics for internal supports.

• Thermal withstand: suitable for continuous operation up to rated current with specified derating at ambient temperatures above 40°C.

• Environmental ratings: IP30 to IP54 enclosures; optional IP55 for outdoor or high-dust installations.

• Physical characteristics: modular draw-out unit weight varies by frame (approx. 50–450 kg depending on rating); compact footprint optimized for 800–1500 mm rack widths.

• Operating temperature: -25°C to +55°C standard; extended ranges available.

• Altitude capability: standard up to 1000 m; derated above per IEC guidance.

• Certifications: IEC 60947-2 compliant; CE marking; optional UL listed variants.

• Packaging: heavy-duty wooden crate for export, palletized with protective film and anti-corrosion treatment; individual unit documentation packet.

• Shelf life/maintenance: not applicable as active electrical equipment; recommended preventive maintenance intervals: 12 months (visual/functional) and 36 months (contact inspection/lubrication).

Core Industrial Applications

• Power distribution in manufacturing plants: protection and selective coordination for large motors, furnaces, and production lines to prevent cascading outages.

• Data centers and mission-critical facilities: ensure fast, reliable breaker operation to protect UPS-fed distribution and maintain high availability.

• Utilities and substations (low-voltage sections): feeder protection, sectionalizing, and plant switchgear for distribution automation.

• Oil & gas, petrochemical, and mining: ruggedized ACBs for harsh environments to protect heavy-duty drives, compressors, and conveyor systems.

• Commercial buildings and airports: scalable, maintainable protection for tenant power distribution and critical HVAC loads.
  Why it outperforms alternatives:

• Higher interrupting capacity vs. molded-case or standard LV breakers, enabling use in high-fault-level installations.

• Modular, draw-out design reduces mean time to repair and simplifies testing and replacement compared with fixed breakers.

• Electronically configurable trip units and communications enable smarter protection coordination and remote diagnostics, reducing downtime and maintenance costs.

• Robust contact materials and arc-management designs extend life cycles in high switching duty applications.

Competitive Advantages

• Quality consistency: factory-tested units with full type-test reports and batch QA traceability; consistent electrical performance across production runs.

• Supply reliability: scalable manufacturing with allocated production slots for bulk buyers and forecast-aligned capacity planning.

• Logistics capability: export-ready packaging, inland delivery coordination from Buea hub, and optional CIF/DDP shipping arrangements to major ports or project sites.

• Price competitiveness: tiered pricing for volume (MOQ alignment with bulk 20 MT orders) and long-term contract discounts.

• Sustainability: recyclable metal chassis, RoHS-compliant components, and reduced energy losses through optimized contact resistance.

• Technical support: comprehensive documentation including wiring diagrams, protection settings guide, commissioning checklist, and 24/7 remote application support; on-site commissioning available via certified partners.

Commercial & Supply Information

• Minimum order quantity (MOQ): BULK 20 MT.

• Loading capacity: dependent on ACB frame sizes; approximate loading per 20-foot container: 2–10 units (higher count for lower-rating compact frames), per 40-foot container: 4–20 units. Exact loading plan provided after specification confirmation.

• Lead times: standard production lead time 8–12 weeks for bulk orders; expedited options subject to capacity.

• Warranty: standard 12-month limited warranty from commissioning or 18 months from shipment, whichever occurs first; extended warranties available under contract.

• Payment and commercial terms: negotiable (L/C, T/T, open account for qualified buyers); volume discounts and long-term supply agreements supported.
