Polyphenylene Sulfide (PPS)

Description

Polyphenylene Sulfide (PPS): The High-Performance Thermoplastic Conqueror

In the world of plastics, where versatility reigns supreme, Polyphenylene Sulfide (PPS) stands out as a true champion of high performance. This robust thermoplastic polymer boasts an impressive array of properties, making it a favorite in demanding applications across various industries. From automotive components to electronics, PPS is conquering challenges with its exceptional heat resistance, chemical inertness, and dimensional stability.

What is Polyphenylene Sulfide (PPS)?

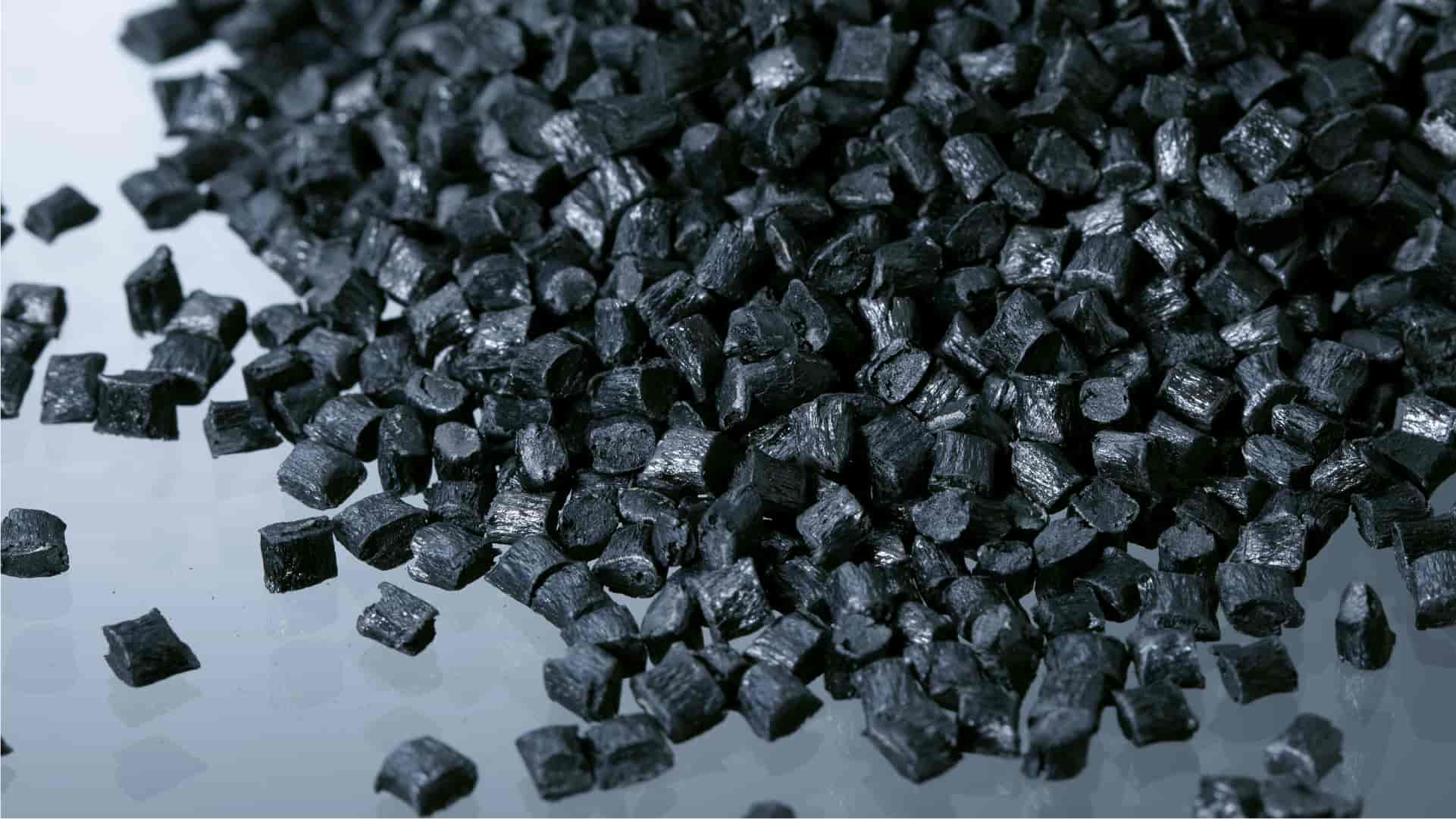

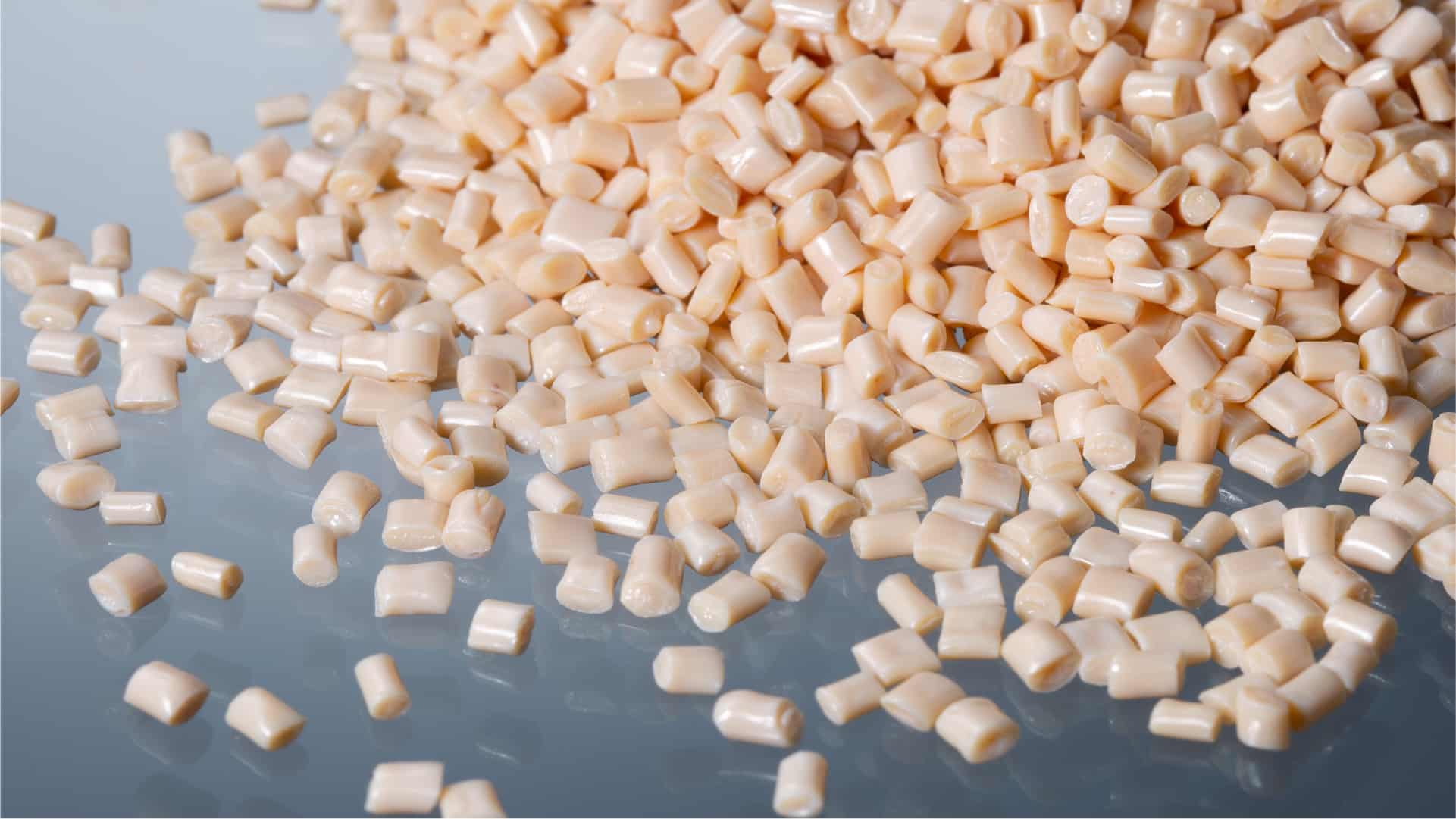

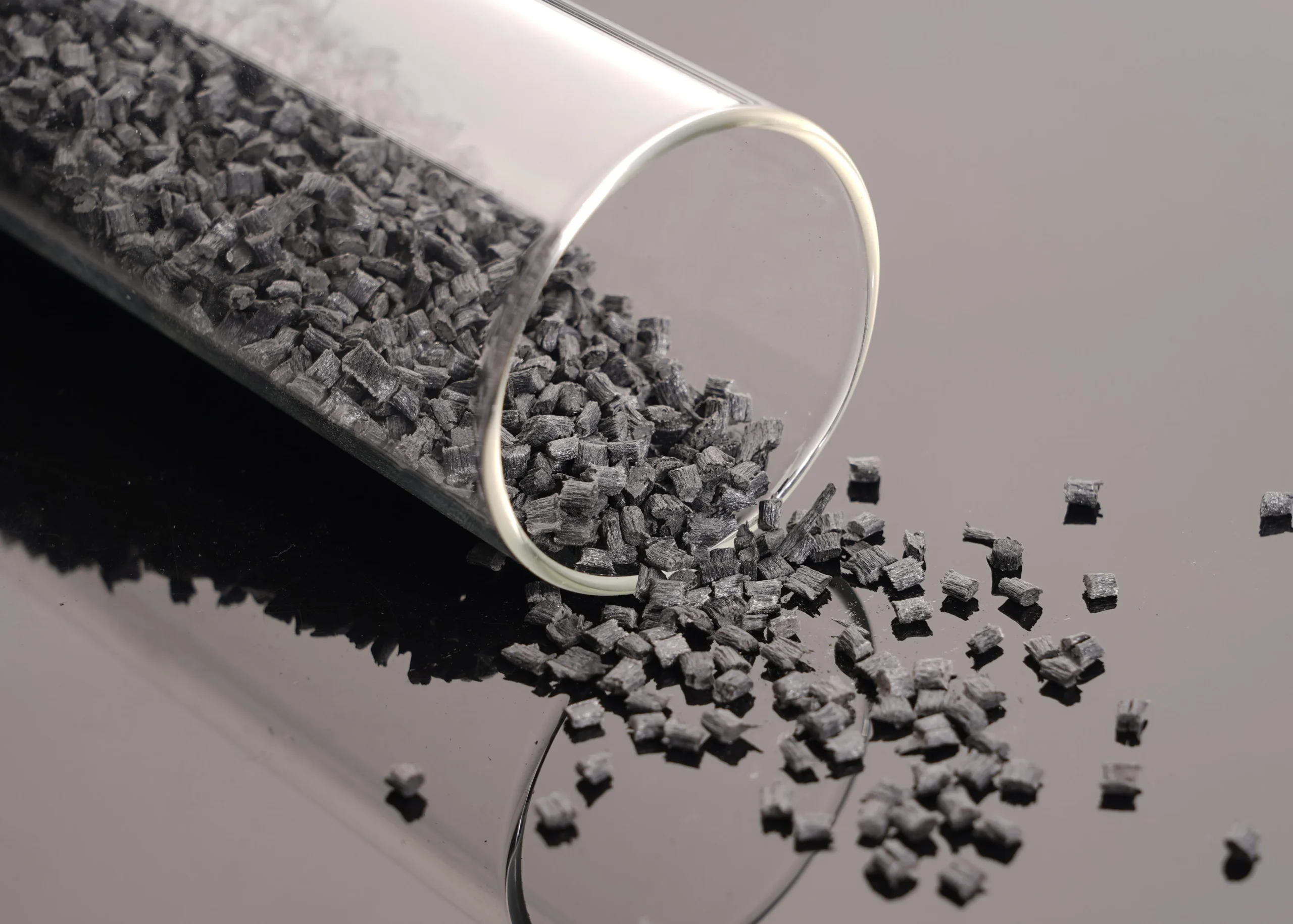

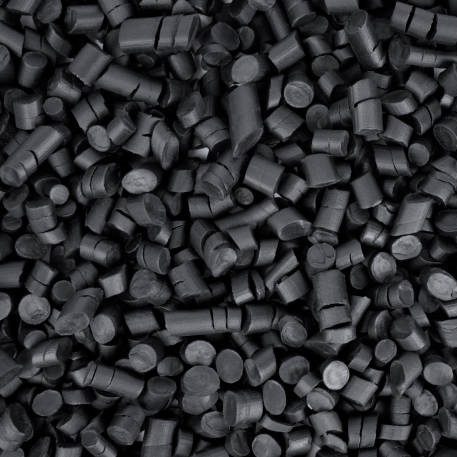

PPS is a semi-crystalline, aromatic polymer composed of repeating benzene rings linked by sulfur atoms. This unique structure gives PPS its distinctive characteristics. It’s typically produced through a reaction between p-dichlorobenzene and sodium sulfide. The resulting polymer is a white or slightly off-white powder or pellet.

The Key Advantages of PPS – A Powerhouse of Properties:

PPS owes its popularity to a compelling combination of properties that make it a superior alternative to other plastics and even some metals in specific applications. Here’s a closer look at its key advantages:

• High Heat Resistance: One of the defining features of PPS is its exceptional ability to withstand high temperatures. It maintains its structural integrity and mechanical properties at continuous operating temperatures up to 200-240°C (392-464°F), making it ideal for environments where thermal stability is paramount.
• Chemical Resistance: PPS exhibits remarkable resistance to a wide range of chemicals, including acids, bases, solvents, and fuels. This chemical inertness allows it to perform reliably in harsh chemical environments where other plastics would degrade or dissolve.
• Dimensional Stability: PPS possesses excellent dimensional stability, meaning it retains its original shape and size even under varying temperatures and humidity levels. This is crucial for applications requiring tight tolerances and precise fit.
• Electrical Insulation: PPS is a good electrical insulator, making it suitable for electrical and electronic components where insulation is critical.
• Flame Retardancy: Many PPS grades are inherently flame retardant, offering an additional safety benefit in applications where fire resistance is a concern.

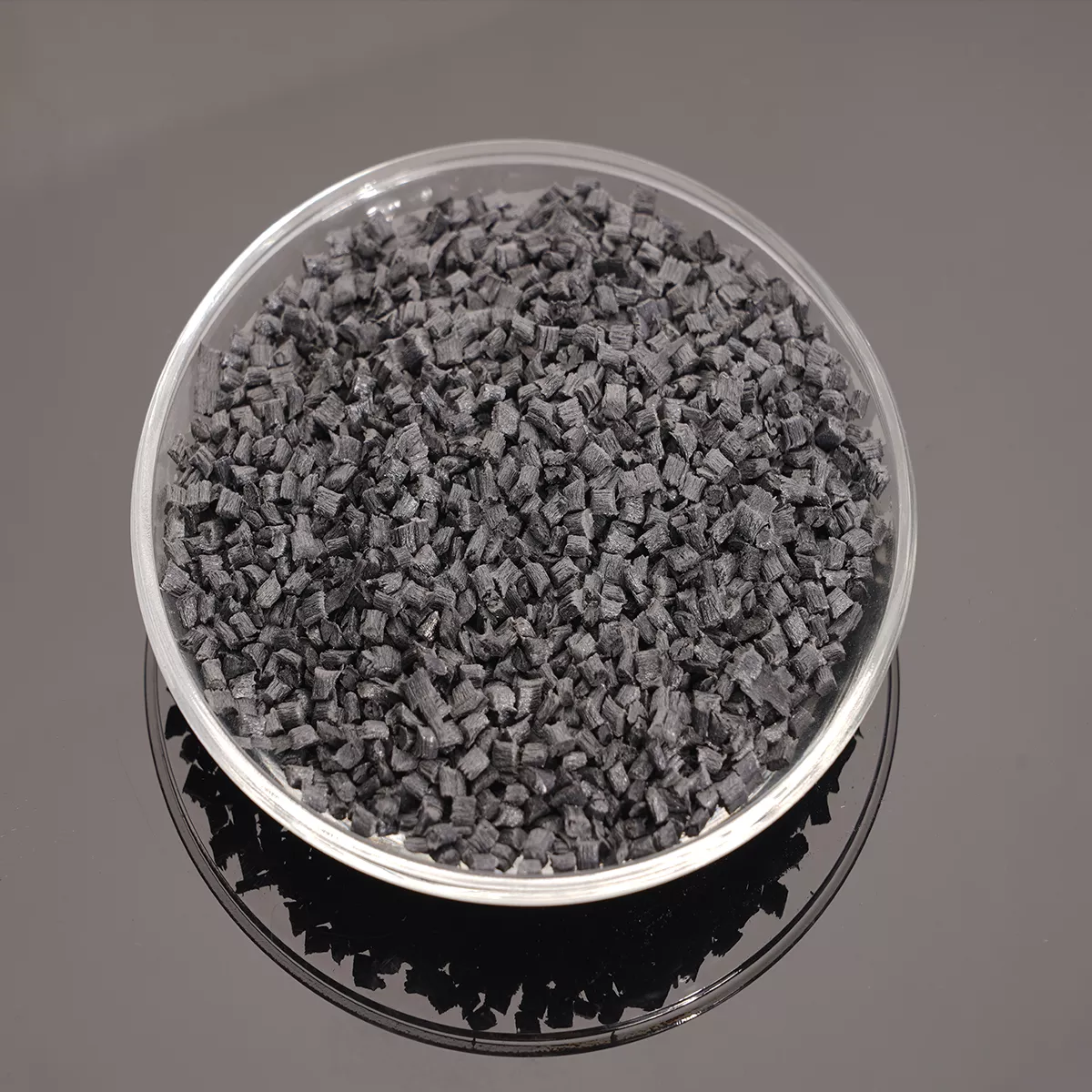

• Mechanical Strength: While not as strong as some other engineering plastics, PPS offers a respectable level of tensile strength, flexural strength, and impact resistance, particularly when reinforced with glass fibers or other fillers.
• Creep Resistance: PPS exhibits excellent creep resistance, meaning it resists deformation under sustained load at elevated temperatures.

Where is PPS Used? A Diverse Range of Applications:

The unique properties of PPS have made it a go-to material in a wide range of applications, including:

• Automotive: Under-the-hood components, fuel system components, engine parts, and electrical connectors benefit from PPS’s heat resistance, chemical resistance, and dimensional stability.
• Electronics: Connectors, sockets, housings for electronic devices, and insulators leverage PPS’s electrical insulation, flame retardancy, and high temperature performance.
• Industrial: Pump housings, valve components, bearings, and chemical processing equipment utilize PPS’s chemical resistance and mechanical strength.
• Aerospace: PPS finds application in aircraft components requiring high heat resistance, chemical resistance, and dimensional stability.
• Appliance: Internal components of ovens, microwave ovens, and dishwashers benefit from PPS’s high temperature resistance and chemical inertness.
• Medical: Certain medical instruments and devices can utilize PPS due to its biocompatibility and sterilizability.

Challenges and Considerations:

While PPS boasts numerous advantages, there are certain considerations:

• Cost: PPS is generally more expensive than commodity plastics, which can be a factor in some applications.
• Processing: PPS requires specific processing conditions, including high temperatures, during molding and extrusion.
• Moisture Absorption: While generally hydrophobic, PPS can absorb some moisture, potentially affecting its properties if not properly dried before processing.

The Future of PPS:

The demand for PPS is expected to continue growing as industries seek materials that can withstand increasingly demanding environments. Ongoing research and development efforts are focused on:

• Developing new PPS grades with enhanced properties: This includes improving mechanical strength, impact resistance, and flame retardancy.
• Improving processing techniques: This aims to reduce the cost of PPS components and expand its application range.
• Exploring new applications: Researchers are investigating the use of PPS in emerging fields such as electric vehicles, renewable energy, and advanced medical technologies.

Conclusion:

Polyphenylene Sulfide (PPS) has earned its reputation as a high-performance thermoplastic by delivering exceptional heat resistance, chemical resistance, and dimensional stability. Its ability to thrive in demanding environments has made it an indispensable material in automotive, electronics, industrial, and aerospace applications. As industries continue to push the boundaries of performance, PPS is poised to remain a valuable and versatile polymer for many years to come. Understanding its strengths and limitations allows engineers and designers to leverage its unique properties to create innovative and reliable solutions in a wide array of industries.
