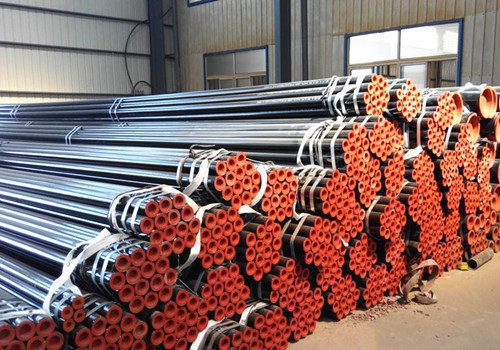

API 5L Line Pipes

Description

API 5L Line Pipes: The Backbone of Energy Transportation

In the complex landscape of global energy infrastructure, API 5L line pipes stand as a crucial, yet often unseen, component. These high-strength steel pipes are the backbone of transportation networks, safely and efficiently moving oil, gas, and other fluids across vast distances, connecting production sites to processing facilities, storage farms, and ultimately, end-users. But what exactly are API 5L line pipes, and why are they so vital to the energy industry?

Defining API 5L Line Pipes

API 5L is a specification developed and maintained by the American Petroleum Institute (API) that outlines the technical requirements for seamless and welded steel line pipe suitable for use in pipeline transportation systems. Meeting the API 5L standard ensures that these pipes possess the necessary strength, durability, and weldability to withstand the harsh conditions associated with transporting high-pressure, often corrosive, fluids.

Key Features and Grades

The API 5L specification encompasses a range of pipe grades, each exhibiting distinct mechanical properties and chemical compositions tailored for specific application requirements. These grades are categorized primarily by their minimum yield strength, a crucial indicator of the pipe’s ability to resist deformation under stress. Common API 5L grades include:

• Grade B (X42): A widely used general-purpose grade suitable for various pipeline applications.
• Grades X46, X52, X56, X60, X65, X70, X80: Higher strength grades designed for applications requiring increased pressure resistance and pipeline integrity. The “X” followed by a number represents the minimum yield strength in thousands of pounds per square inch (psi). For example, X65 signifies a minimum yield strength of 65,000 psi.

Beyond yield strength, the API 5L specification also details requirements for:

• Chemical Composition: Precisely controlled levels of elements like carbon, manganese, silicon, and others to achieve desired mechanical properties and weldability.
• Manufacturing Processes: Seamless or welded production methods, each with specific requirements for quality control and testing.
• Dimensional Tolerances: Strict adherence to diameter, wall thickness, and ovality specifications to ensure proper fit and performance within the pipeline system.
• Testing and Inspection: Rigorous testing protocols, including hydrostatic testing, non-destructive testing (NDT), and mechanical property testing, to verify compliance with the standard and identify any potential defects.

Manufacturing Processes: Seamless vs. Welded

API 5L line pipes are manufactured using two primary methods:

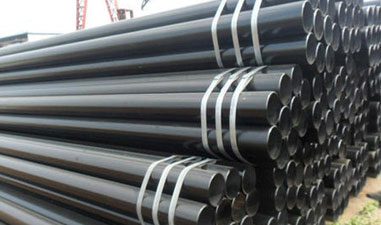

• Seamless: These pipes are produced from a single billet of steel, without any longitudinal or helical weld seams. They offer superior strength and are typically preferred for high-pressure and critical applications. Manufacturing processes include hot rolling, extrusion, and piercing.
• Welded: Welded pipes are formed by rolling steel plates into cylindrical shapes and then welding the edges together. Various welding methods are employed, including Electric Resistance Welding (ERW), Submerged Arc Welding (SAW), and Laser Beam Welding (LBW). Welded pipes are generally more cost-effective for larger diameter and longer length applications.

Applications of API 5L Line Pipes

The versatility and robust performance of API 5L line pipes make them essential across a wide spectrum of applications, including:

• Oil and Gas Pipelines: Transporting crude oil, natural gas, and refined petroleum products over long distances.
• Water Pipelines: Conveying potable water, wastewater, and irrigation water.
• Slurry Pipelines: Moving mineral slurries, such as coal, iron ore, and other raw materials.
• Structural Applications: Providing structural support for various engineering projects.

Importance of Adherence to API 5L Standards

Compliance with the API 5L specification is paramount for ensuring the safety, reliability, and longevity of pipeline systems. Using API 5L certified pipes guarantees that they meet stringent quality standards, minimizing the risk of leaks, ruptures, and other failures that can lead to environmental damage, economic losses, and potential safety hazards.

Conclusion

API 5L line pipes are the unsung heroes of the energy industry, playing a vital role in the safe and efficient transportation of essential resources. Their robust construction, adherence to stringent standards, and versatility make them indispensable for powering our modern world. As the demand for energy continues to grow, the importance of API 5L line pipes will only continue to increase, solidifying their position as a fundamental pillar of global infrastructure.
