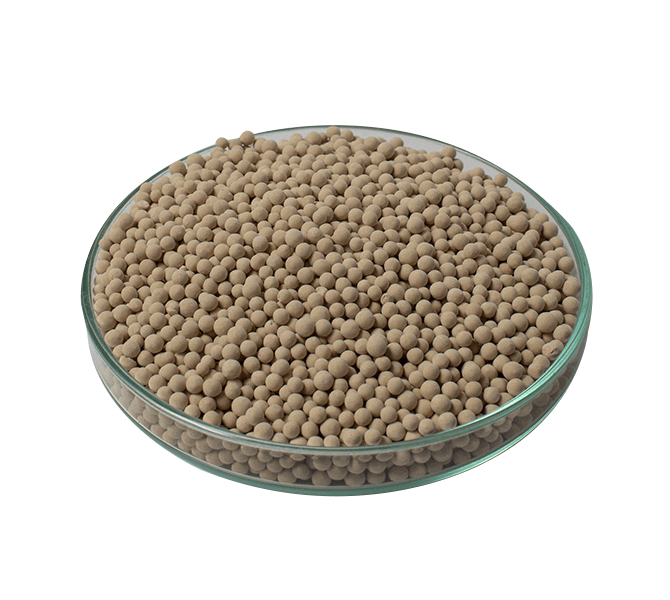

4A Molecular Sieve

Description

4A Molecular Sieve: The Zeolite Workhorse You Didn’t Know You Needed

Molecular sieves are fascinating materials, and among them, the 4A variety stands out as a true workhorse in various industries. These crystalline aluminosilicates, also known as zeolites, possess a unique pore structure that allows them to selectively adsorb molecules based on their size. This article delves into the world of 4A molecular sieves, exploring their structure, properties, applications, and why they are so crucial in many processes.

Understanding the Structure and Properties

The “4A” designation indicates the effective pore diameter of the sieve, which is approximately 4 Angstroms (0.4 nanometers). This specific pore size is crucial to its functionality, allowing it to selectively adsorb molecules smaller than 4 Angstroms while excluding larger ones.

The structure of 4A molecular sieves is a three-dimensional interconnected network of silica and alumina tetrahedra. This framework creates cavities and channels with a highly uniform and controlled pore size. The presence of alkali metal cations, like sodium, maintains the electrical neutrality of the structure and contributes to the overall adsorption properties.

Key properties of 4A molecular sieves include:

• High Adsorption Capacity: They can adsorb a significant amount of water and other small molecules due to their large surface area and pore volume.
• Selectivity: The precise pore size allows for selective adsorption, making them ideal for separating mixtures.
• Regeneration: The adsorbed molecules can be removed through heating (thermal swing adsorption) or pressure reduction (pressure swing adsorption), allowing the sieves to be reused.
• Thermal and Chemical Stability: They can withstand high temperatures and are relatively resistant to chemical degradation, making them suitable for various harsh conditions.

The Versatile Applications of 4A Molecular Sieves

The unique properties of 4A molecular sieves make them invaluable in a wide array of applications, including:

• Drying of Liquids and Gases: This is perhaps the most widespread application. 4A sieves are used to remove water from solvents, refrigerants, air, natural gas, and other industrial gases, preventing corrosion, freezing, and other problems. They are commonly found in compressed air dryers and natural gas processing plants.
• Dehydration of Unsaturated Hydrocarbons: They are used to dry ethylene, propylene, butadiene, and other unsaturated hydrocarbons, essential building blocks in the petrochemical industry. This is critical for preventing polymerization of these reactive monomers.
• Static Desiccant: 4A sieves are used as desiccants in packaging to protect sensitive products from moisture damage. This is common in pharmaceuticals, electronics, and optics.
• Separation of CO2 from Natural Gas: They can selectively adsorb CO2, improving the quality and heating value of natural gas.
• Oxygen Concentrators: In medical oxygen concentrators, 4A sieves are used to separate nitrogen from air, enriching the oxygen content for patients requiring supplemental oxygen. This is often achieved through pressure swing adsorption (PSA).
• Automotive Air Conditioning Systems: 4A sieves are used in the receiver-drier of automotive air conditioning systems to remove moisture and protect the compressor.
• Ethanol Dehydration: Removing water from ethanol is crucial for producing anhydrous ethanol for blending with gasoline. 4A molecular sieves have become a key component in this process.

Advantages and Considerations

Using 4A molecular sieves offers several advantages:

• Efficiency: They offer high adsorption capacity and selectivity compared to other desiccants.
• Cost-Effectiveness: The ability to regenerate and reuse them makes them a cost-effective solution in the long run.
• Environmental Friendliness: They are generally considered environmentally friendly compared to some other desiccant technologies.

However, some considerations are important:

• Dust Formation: Molecular sieves can generate dust, which can be problematic in some applications. Dust control measures may be required.
• Poisoning: Certain contaminants can poison the sieve, reducing its adsorption capacity.
• Regeneration Requirements: Proper regeneration procedures are essential for maintaining the sieve’s performance.

Conclusion

4A molecular sieves are indispensable materials that play a vital role in many industries. Their unique structure, selective adsorption capabilities, and reusability make them a highly valuable and cost-effective solution for various drying and separation applications. From ensuring the purity of industrial gases to providing life-saving medical oxygen, 4A molecular sieves contribute significantly to the efficiency, safety, and sustainability of numerous processes. As technology continues to advance, we can expect further innovations and expanded applications for these remarkable zeolite workhorses.
