1. Product Overview
Instrument Cable Shielded Copper — Controls is a high-performance, industrial-grade cable designed for precision control and instrumentation applications. Engineered with fully shielded copper conductors, this cable ensures superior signal integrity, minimizes electromagnetic interference (EMI), and maintains reliable performance in complex industrial environments. Its primary industrial use includes connecting control systems, sensors, and automation devices in plants and factories. The key value proposition lies in delivering consistent electrical performance, durability, and safety, making it essential for mission-critical operations. Strategically, this product enables industrial operators to enhance operational efficiency, reduce downtime, and support regulatory compliance in automated and instrumented systems.
2. Key Specifications & Technical Characteristics
- Material Components:
- High-purity copper conductors
- PVC or XLPE insulation

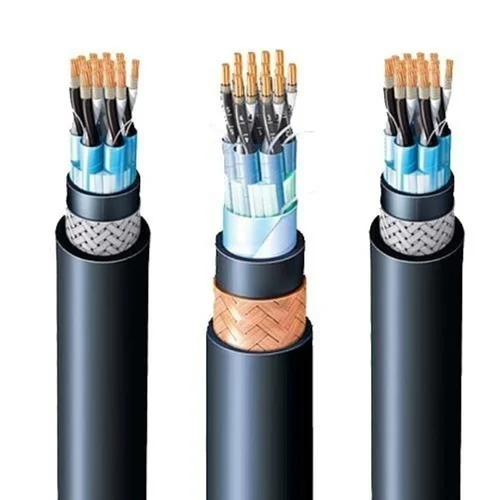

- Braided or foil shielding for EMI protection
- Outer protective sheath (PVC, LSZH, or flame-retardant options)
- Purity / Grade:
- Oxygen-free or electrolytic copper, Class 2 (flexible conductor)
- Insulation rated for industrial voltage standards
- Physical Characteristics:

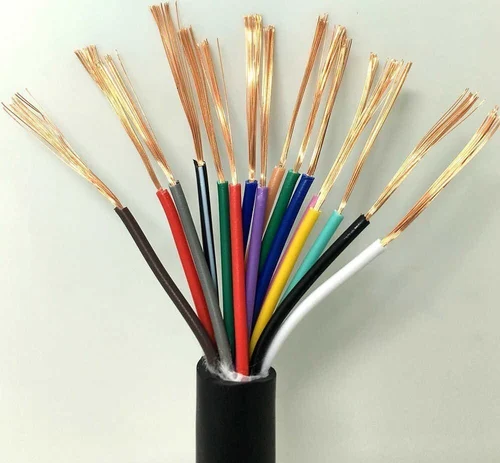

- Form: Flexible multi-core cable
- Color: Standard industrial coding (black, grey, red cores; custom on request)
- Diameter and gauge: Multiple AWG sizes available, per specification
- Shielding coverage: ≥85% braid or foil
- Temperature rating: Typically −20°C to +90°C (depending on insulation type)
- Flame retardant / low smoke options available
- Packaging Options:
- Reels or drums
- Bulk coils for factory installation
- Custom lengths upon request
- Shelf Life:
- Standard shelf life exceeds 10 years when stored in dry, temperature-controlled conditions
- Protect from prolonged UV exposure and mechanical damage
3. Core Industrial Applications
Primary Industries:
- Oil & gas and petrochemical plants
- Power generation and distribution
- Industrial automation and process control
- Manufacturing and heavy industries
- Instrumentation and SCADA systems
Operational Use Cases:
- Connecting field sensors, actuators, and instrumentation panels
- Transmitting low-voltage control and signal data across plant infrastructure
- Integration with PLCs, DCS systems, and process control networks
- Shielded performance ensures minimal signal loss in electrically noisy environments
Performance & Cost Advantages:
Shielded copper cables provide superior noise immunity compared to unshielded alternatives, reducing errors and rework in critical process measurements. Flexibility and durability allow easy installation in tight industrial layouts, while consistent electrical performance lowers maintenance costs and extends operational life.
4. Competitive Advantages
- Quality Consistency: Manufactured to international IEC/NEC standards with full traceability
- Supply Reliability: Continuous production and inventory for industrial-scale orders
- Logistics Capability: Bulk and custom packaging options with global shipping support
- Price Competitiveness: Competitive industrial pricing for high-quality copper shielding
- Sustainability Benefits: Lead-free and RoHS-compliant materials available
- Technical Support: Full datasheets, installation guidelines, and certification documentation provided
As a strategic sourcing decision, this cable ensures plant-wide operational reliability, enhances control system accuracy, and mitigates downtime risk due to electrical interference.
5. Commercial & Supply Information
- Minimum Order Quantity (MOQ): BULK 20MT
- Loading Capacity (MT per container): Approximately 20–22 MT per 20’ ISO container, depending on reel size and cable gauge
