Cable trays & ladder racks

Description

1. Product Overview

Cable Trays & Ladder Racks are engineered cable management systems designed to support, route, and protect electrical power and data cables across industrial, commercial, and infrastructure installations. These structural systems provide organized cable distribution while ensuring accessibility for maintenance, upgrades, and inspection.

The primary value proposition lies in their durability, modular installation, and scalability for large-scale electrical infrastructure projects. Strategically, cable tray and ladder rack systems are essential components in modern power distribution networks, data centers, and industrial facilities where efficient cable management directly impacts safety, operational efficiency, and long-term infrastructure reliability.

2. Key Specifications & Technical Characteristics

• Material Composition:
  • Galvanized steel
  • Stainless steel (304 / 316 grades)
  • Aluminum alloy
  • Optional epoxy or powder-coated finishes for corrosion protection
• Grade / Standard Compliance:
  • Industrial structural grade materials
  • Manufactured according to international electrical infrastructure standards (IEC, NEMA, or equivalent)
• Physical Characteristics:

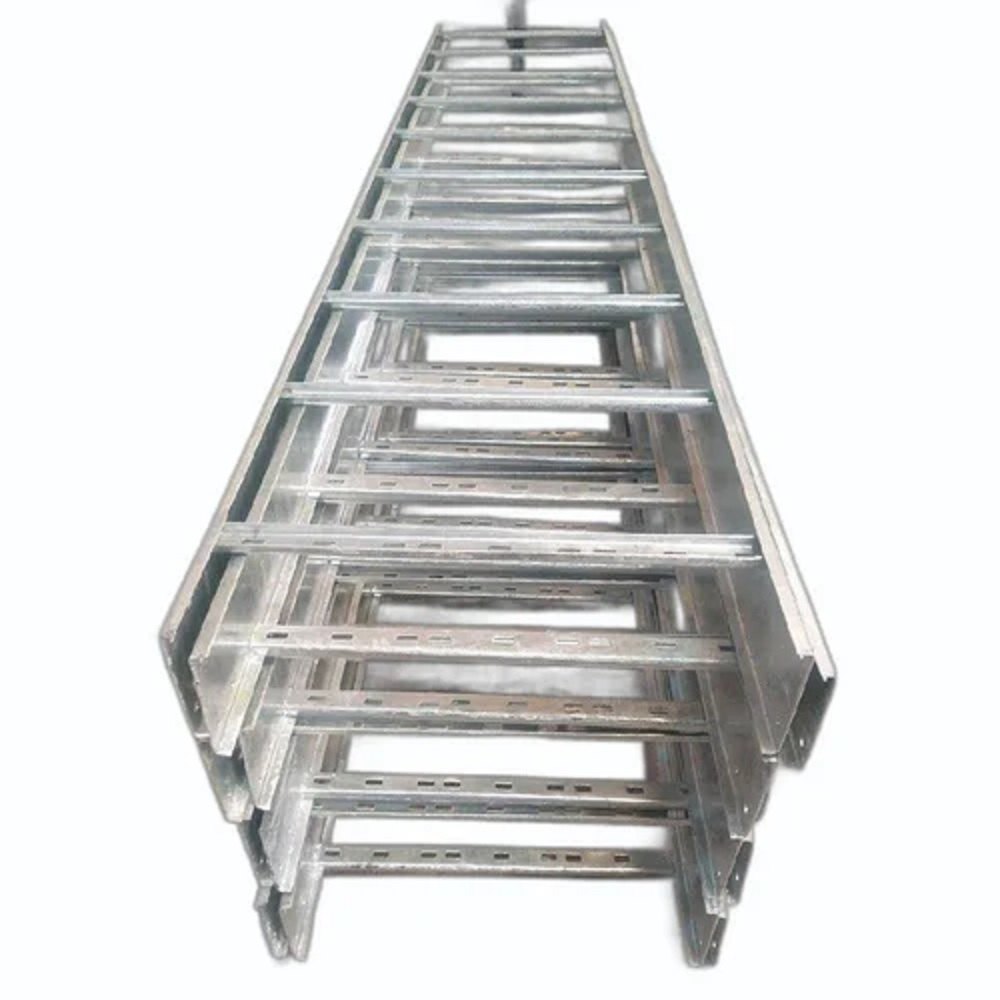

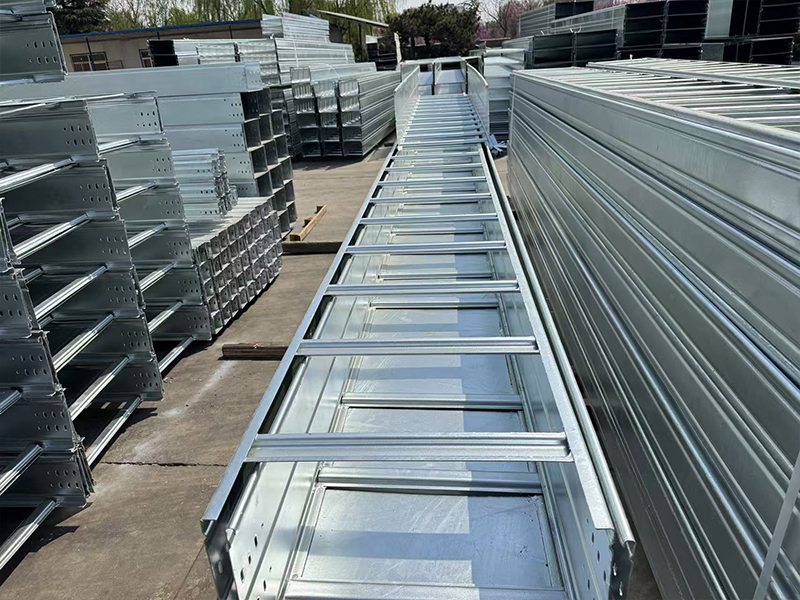

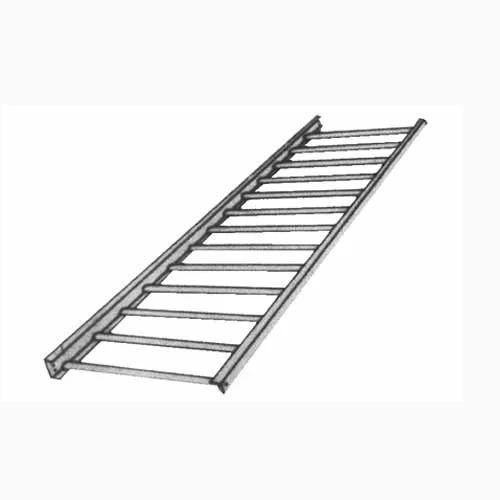

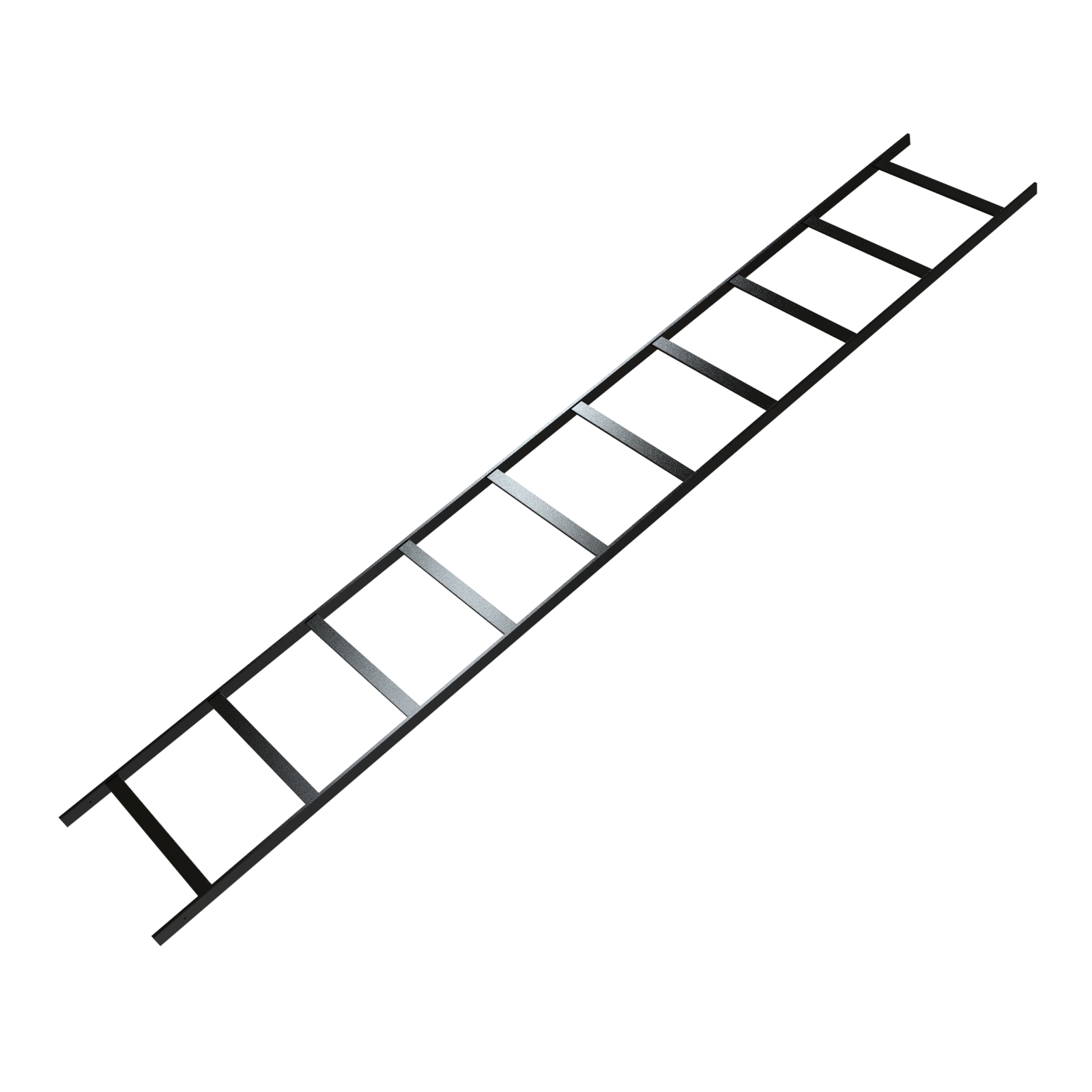

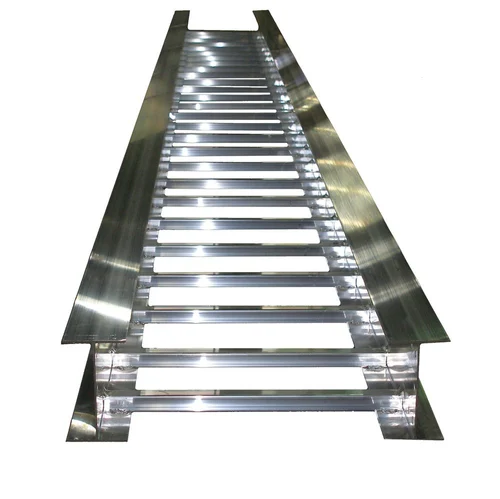

  • Form: Ladder rack or perforated/solid cable tray sections
  • Color: Metallic silver, galvanized finish, or custom powder-coated colors
  • Standard Widths: 50 mm – 900 mm
  • Side Rail Heights: Typically 50 mm – 150 mm
  • Section Length: Commonly 2 m – 3 m modules
  • Load Capacity: Engineered for medium to heavy-duty cable loads
• Packaging Options:
  • Bundled palletized sections
  • Containerized bulk shipments
  • Protective wrapping for corrosion-sensitive materials
• Shelf Life:
  • Not applicable; long-term structural components with extended service life when properly installed

3. Core Industrial Applications

Primary Industries

• Power generation and transmission
• Oil and gas facilities
• Data centers and telecommunications infrastructure
• Manufacturing plants and industrial automation
• Commercial construction and infrastructure projects

Operational Use Cases

• Routing and supporting electrical power cables in industrial plants
• Organizing network and fiber optic cabling in data centers
• Supporting control system wiring in manufacturing facilities
• Cable distribution across power plants, substations, and utility infrastructure

Performance & Cost Advantages

Cable trays and ladder racks offer superior cable management flexibility compared to enclosed conduit systems. Their open design improves ventilation and heat dissipation, extending cable lifespan and reducing overheating risks.

Modular construction allows rapid installation and simplified maintenance, significantly lowering labor costs during infrastructure deployment and future upgrades. The structural strength and corrosion-resistant materials ensure long operational life in demanding industrial environments.

4. Competitive Advantages

• Quality Consistency: Precision-manufactured structural components with strict dimensional tolerances.
• Supply Reliability: Scalable production capacity for large infrastructure and industrial projects.
• Logistics Capability: Efficient packaging and containerized shipping for global distribution.
• Price Competitiveness: Cost-effective solution for large-scale cable management compared to conduit-based systems.
• Sustainability Benefits: Recyclable metal construction and long service life reduce material waste.
• Technical Documentation: Detailed product specifications, load calculations, and installation guides available.
• Technical Support: Engineering consultation for system design, layout optimization, and installation planning.

Cable trays and ladder racks represent a strategic infrastructure investment for industrial operators seeking reliable, scalable, and efficient cable management systems.

5. Commercial & Supply Information

• Minimum Order Quantity (MOQ): BULK 20MT
• Loading Capacity:
  • 20ft Container: Approximately 20–25 MT depending on tray dimensions, material type, and packaging configuration
